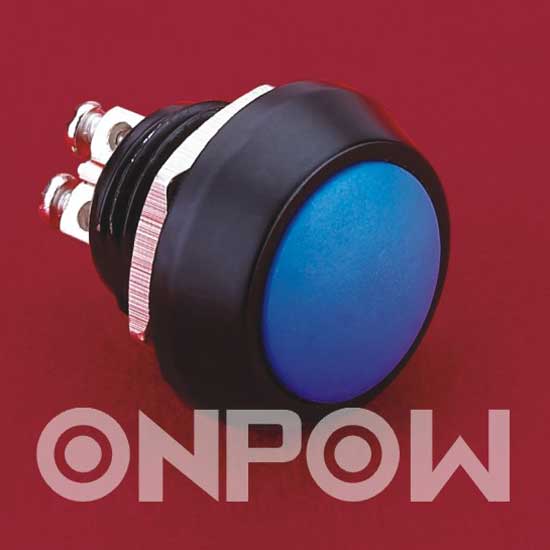

This metal push button is made of stainless steel and nickel plated brass with a domed profile. The round button on top comes with a diameter of 12mm and allows easy operation. The waterproof casing makes this pushbutton last for a long operating life.

• Terminal type: screw terminal.
• Switching: No.1.
• Max. switch rating: 48V DC/2A.
• Contact resistance: ≤50mΩ.
• Insulation resistance: ≥1,000MΩ.
• Dielectric strength: 2,000V AC.
• Operating temperature: -20-70℃.
• Mechanical life: 1,000,000 cycles.
• Electrical life: 200,000 cycles.
• Contact material: silver alloy.
• Panel thickness: 1-6mm.
• Torque: 5-14Nm.
• Operation pressure: 5.5N.
• IP degree: IP65.
• Button material: stainless steel/nickel plated brass.
• Body material: stainless steel/nickel plated brass.
• Base material: PBT.
