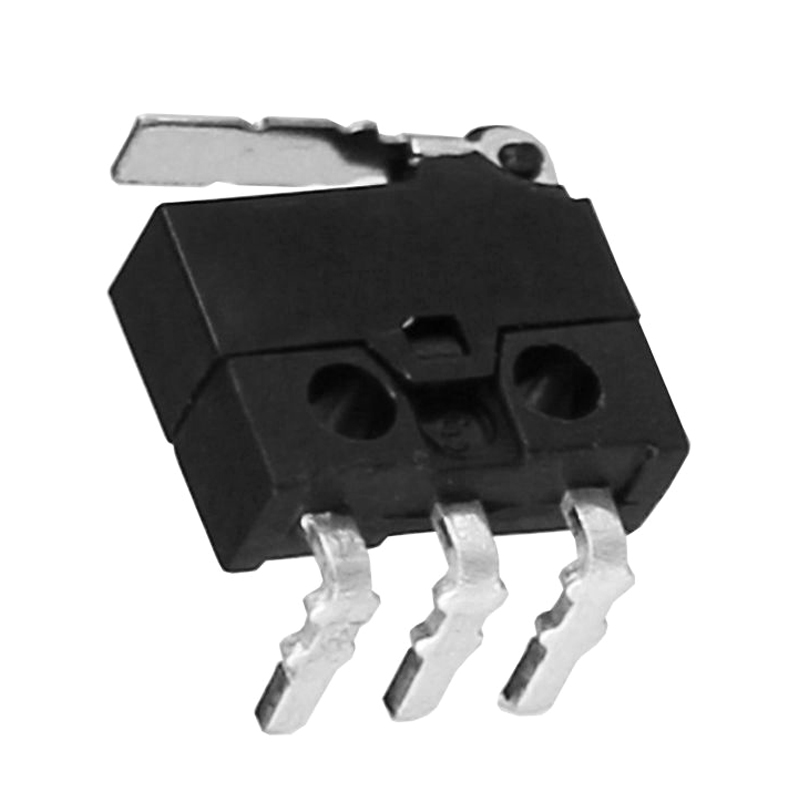

This micro switch comes in a compact rectangular design and has three pins for connection. It has a metallic tone actuator and flaunts a long working life of 50,000 cycles. The micro switch is easy to install and can be used to control a wide variety of electronic products.

• Rating: 30V DC, 1A.
• Contact resistance: 50mO max.
• Insulation resistance: 500V DC / 100MO min.
• Dielectric strength / withstand voltage: 500V.
• AC operating force: 40gf ± 10gf.
• Terminal strength: 500gf.
• Displacement of actuator (knob): 500gf.
• Life: 50,000 cycles.
• Operating temperature: -16 to + 60°C.
• Compact rectangular design.
• With three pins for connection.
• Metallic tone actuator.
• Long working life.
• Easy to install.
• Can be used to control a wide variety of electronic products.
