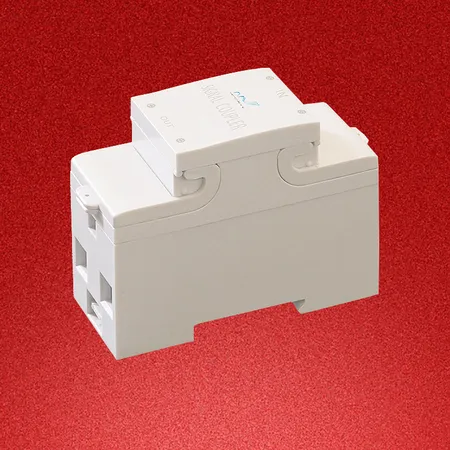

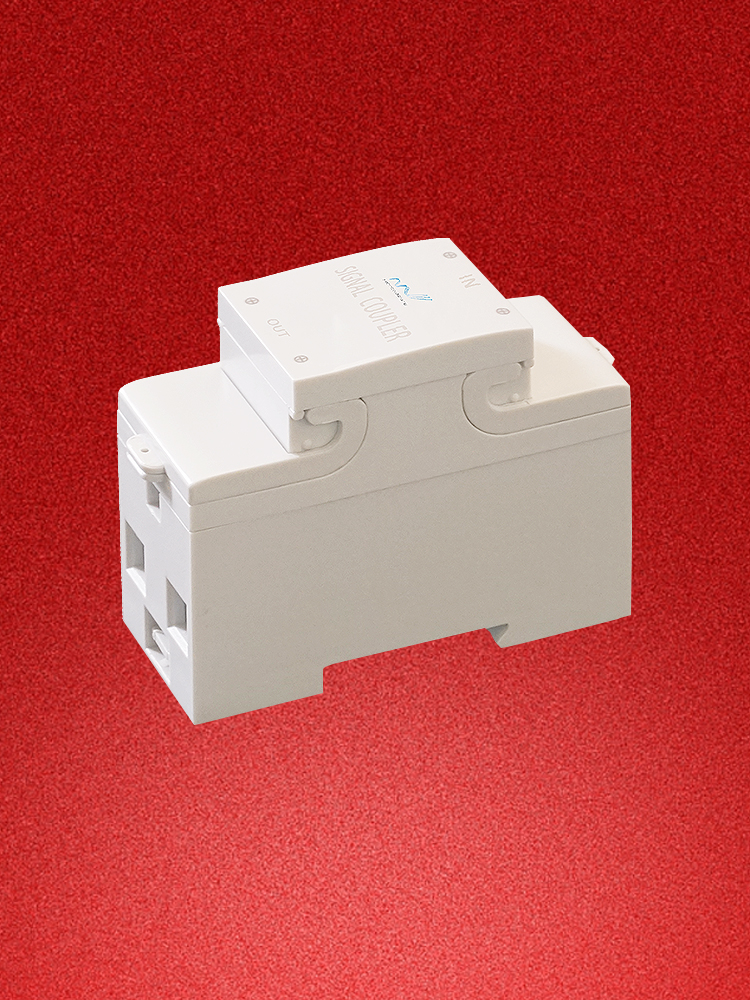

MicroNatutre MN-A20 Coupler encodes data into high-frequency signals and couples them onto the power line, allowing devices connected to the power line to send and receive data, enabling communication between them without the need for additional communication lines.

MicroNatutre MN-A20 Coupler can be used to monitor data on power lines by connecting sensors and other devices to the power line and using the coupler for data transmission. It enables real-time monitoring of various parameters of the power line, such as current, voltage, and power, for power system monitoring and management.

Features:

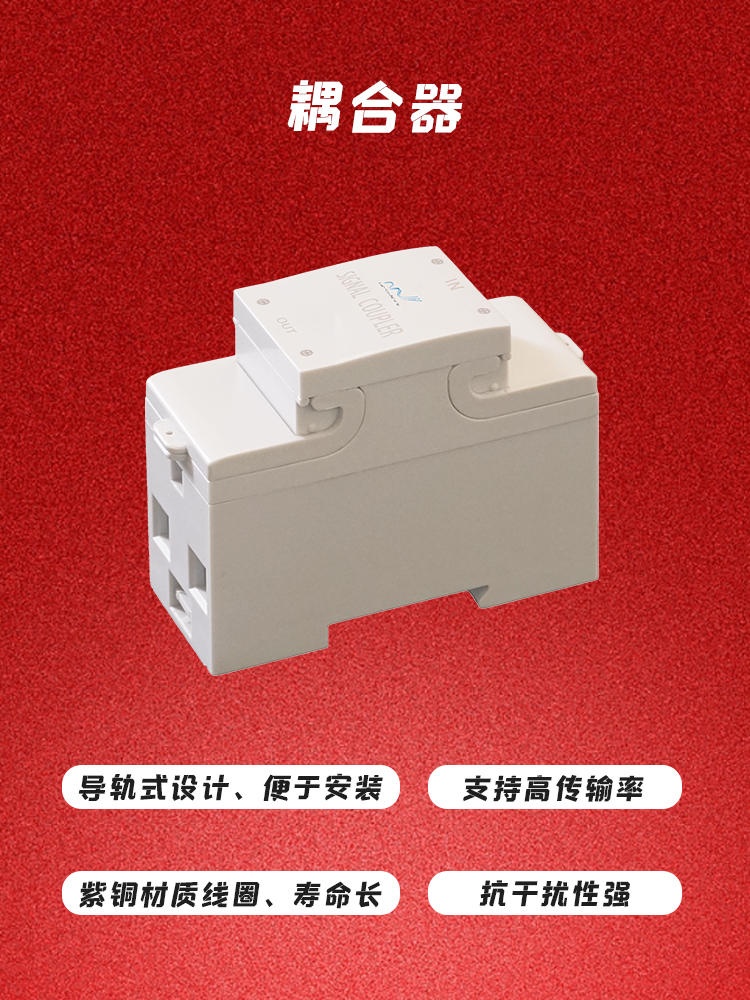

1.     Easy Installation: Standard rail design, compact appearance, easy to install inside distribution boxes.



 2.     Stable Performance: Low insertion loss, no signal distortion, supports high transmission rates.



 3.     Powerful Functionality: Supports coupling of signals between different circuits, strong anti-interference capability.



 4.     Safety Protection: Coil made of purple copper, low heat generation, long lifespan, flame-retardant material casing.

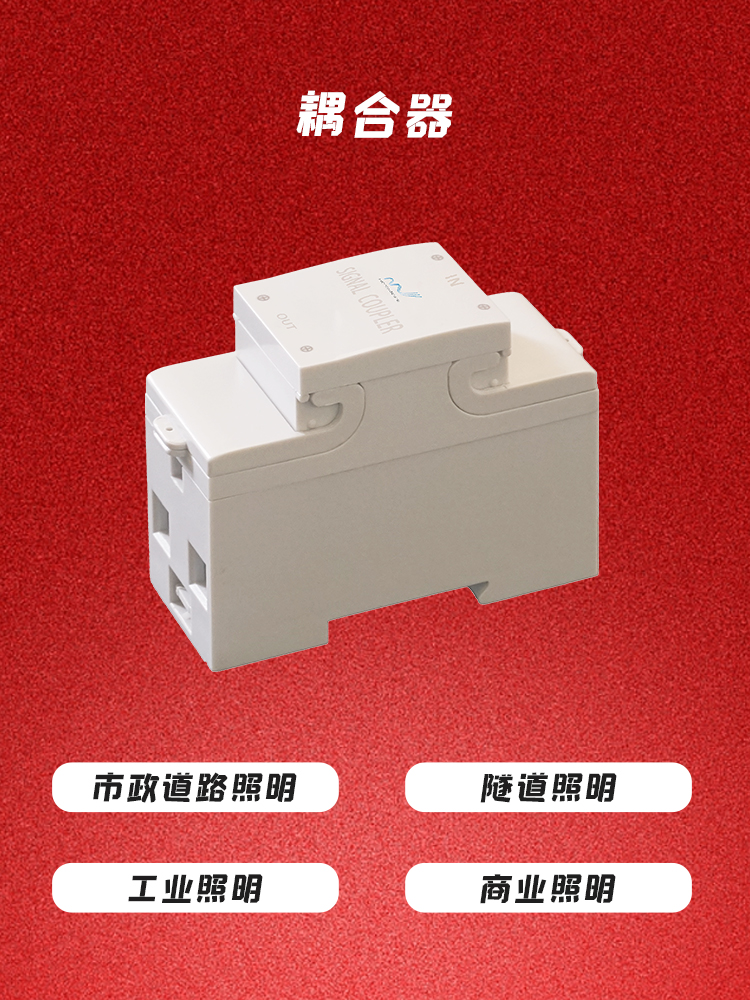

 5.     Application Scenarios: Municipal road lighting, tunnel lighting, industrial lighting, commercial lighting.

Functional Characteristics



➢ Isolation: Isolate high-frequency communication signals from the power grid to avoid signal interference and ensure the safety of equipment and personnel.



➢ Signal Transmission: Achieve smooth signal transmission on the power line through coupling and decoupling of signals.



➢ Gain: Control the transmission distance and coverage range of signals. Some high[1]performance PLC couplers can also amplify the signals to improve signal reception quality.



➢ Coupling: Couple two different PLC circuit signals.



➢ Working temperature: -20℃～+45℃



➢ Enclosure dimensions: 36.5(W)*84.3(H)*66.7(D)mm

Technical Specifications

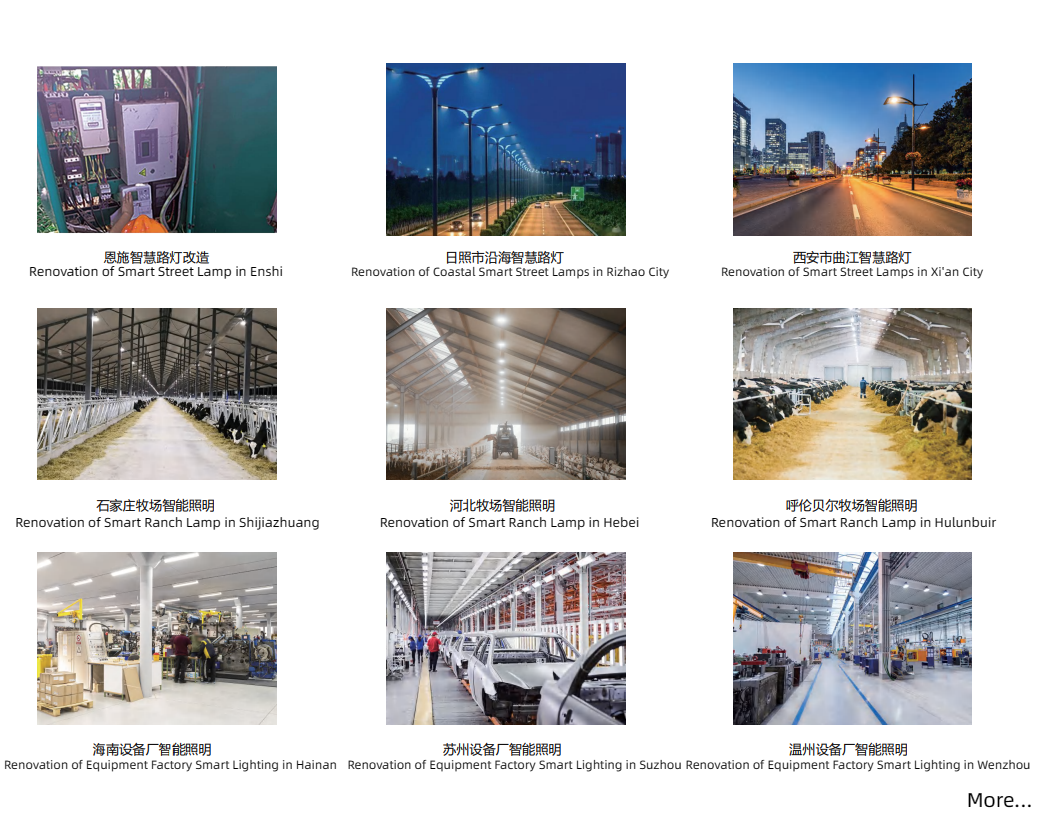

Shenzhen MicroNature Innovation Technology Co., Ltd. is a national high-tech enterprise specializing in PLC-IoT smart industrial lighting solutions. The company integrates design, research and development, manufacturing, and marketing. We have leading High Speed Power Line Communication (HPLC) technology, an open SAAS platform, well-established smart hardware system and abundant experience in industrial-grade smart lighting solutions such as Municipal Road lighting, tunnel lighting, and factory lighting...
