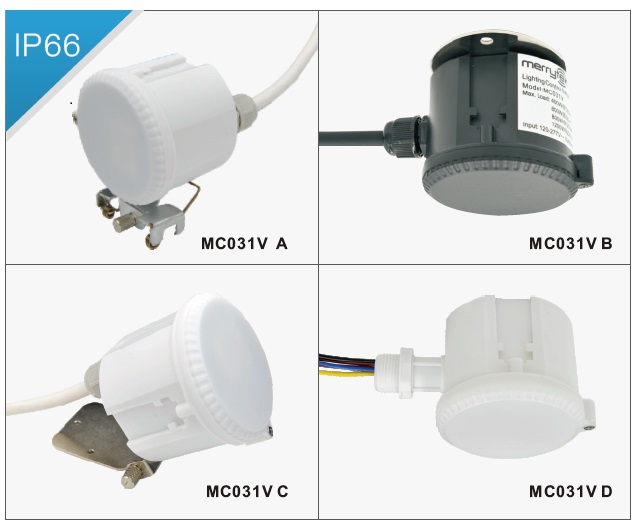

Microwave Motion Sensor

Production Lead Time:

21 day(s)

Model No.:

MCO31V

Brand:

Merrytek

Warranty:

5 year

Switch Type:

Motion Sensor Switch

Body Colour:

Black, White

Customized:

Yes

Description

Contact Supplier

Operating voltage ：120~277Vac, 50Hz/60Hz
Rated load ： 400W@120Vac, 800W@220-277Vac (inductive), 800W@120Vac, 1200W@220-277Vac (resistive)
HF system ： 5.8GHz±75MHz, ISM wave band
Transmitting power ： <0.5mW
Power consumption ： ≤0.8W(standby), <1.5W(operation)
Detection zone ： Max.(D x H): 16m x 15m
Detection sensitivity ： 100% / 50%
Hold time ： 5s / 30s / 90s / 3min / 20min / 30min
Daylight sensor ： 50lux / 100lux / 200lux / Disable
Stand-by dimming level ： 10% / 20% / 30% / 50%
Mounting height : 15m Max.
Motion detection : 0.5~3m/s
Detection angle : 150°(wall installation),360°(ceiling installation)
Operating temperature : -35℃~70℃
