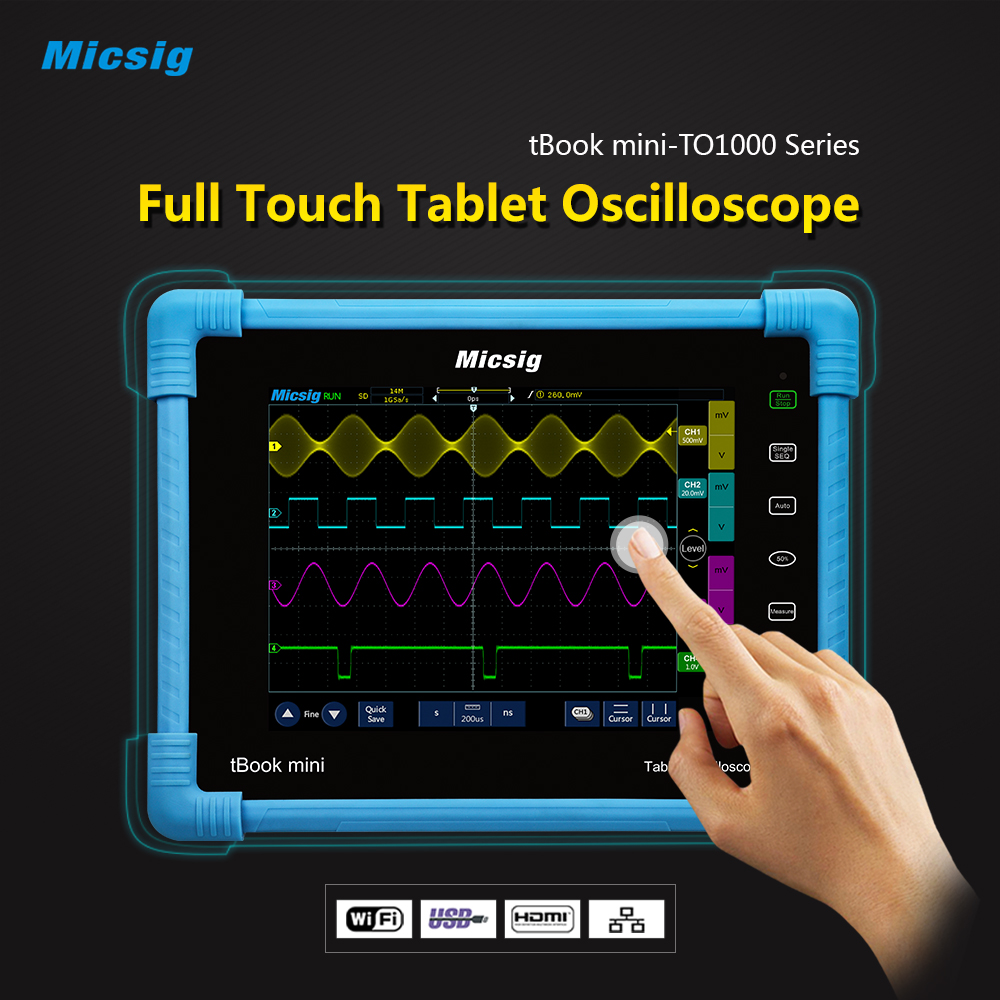

Micsig Digital Tablet Oscilloscope TO1000 Series
Production Lead Time:
1 day(s)
Model No.:
TO1072/TO1074/TO1102/TO1104
Brand:
Micsig
Colour:
Blue
Size:
250 x 200 x 55 mm
Port:
Shenzhen
Type of Payment:
T/T
Minimum Order Quantity:
1
Customised:
Yes
Description
Contact Supplier
Description
- 70MHz or 100MHz bandwidth, 2 or 4 analog channels
- 1 GSa/s real-time sample rate
- 14Mpts or 28Mpts memory depth
- Up to 80,000wfm/s waveform capture rate
- Up to 5 hours optional Li-ion battery (Options)

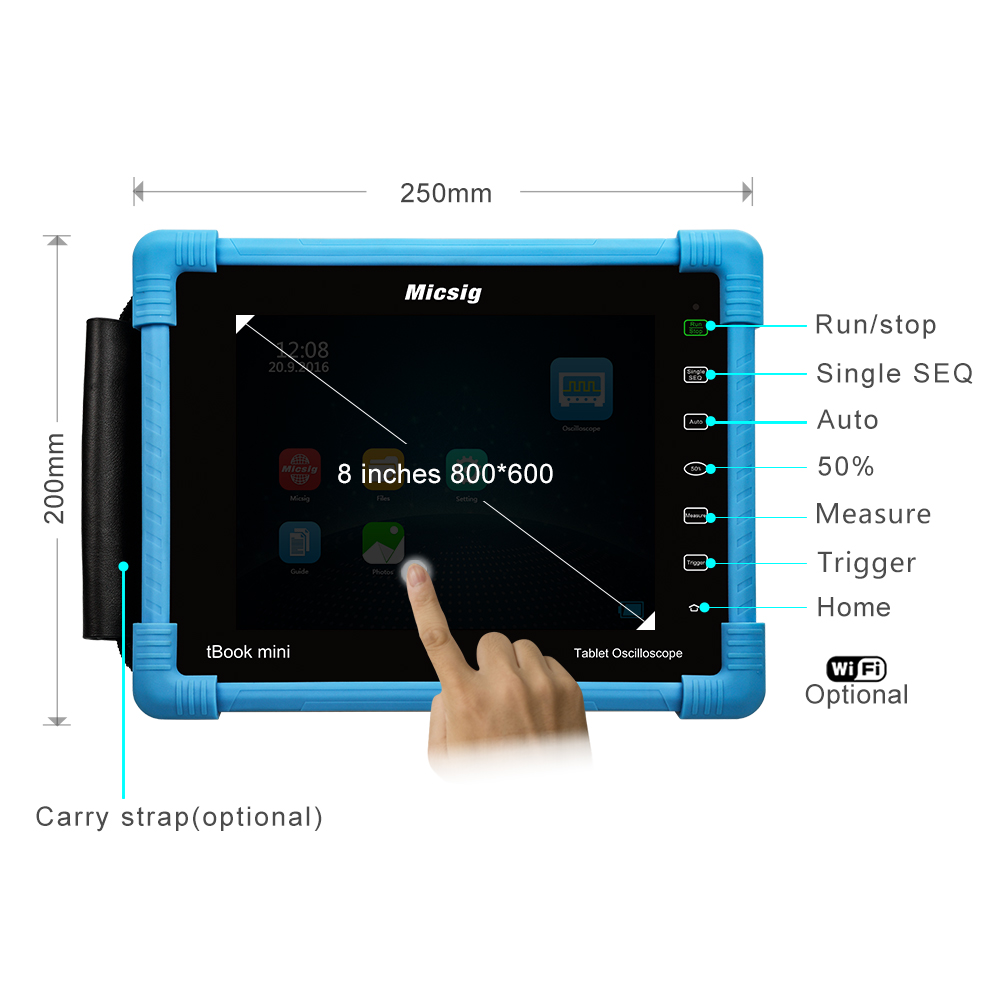

- 8’’TFT LCD & 800*600 pixels high-resolution Multi-touch capacity screen
- Gradient waveform display with 256 intensity levels
- 7 types of trigger function: Edge, Pulse, Logic, Time Out, Dwart PW, Slope, N Edge, and Video
- Built-in 8G storage capacity, waveforms and screenshots can be viewed and edited in scope

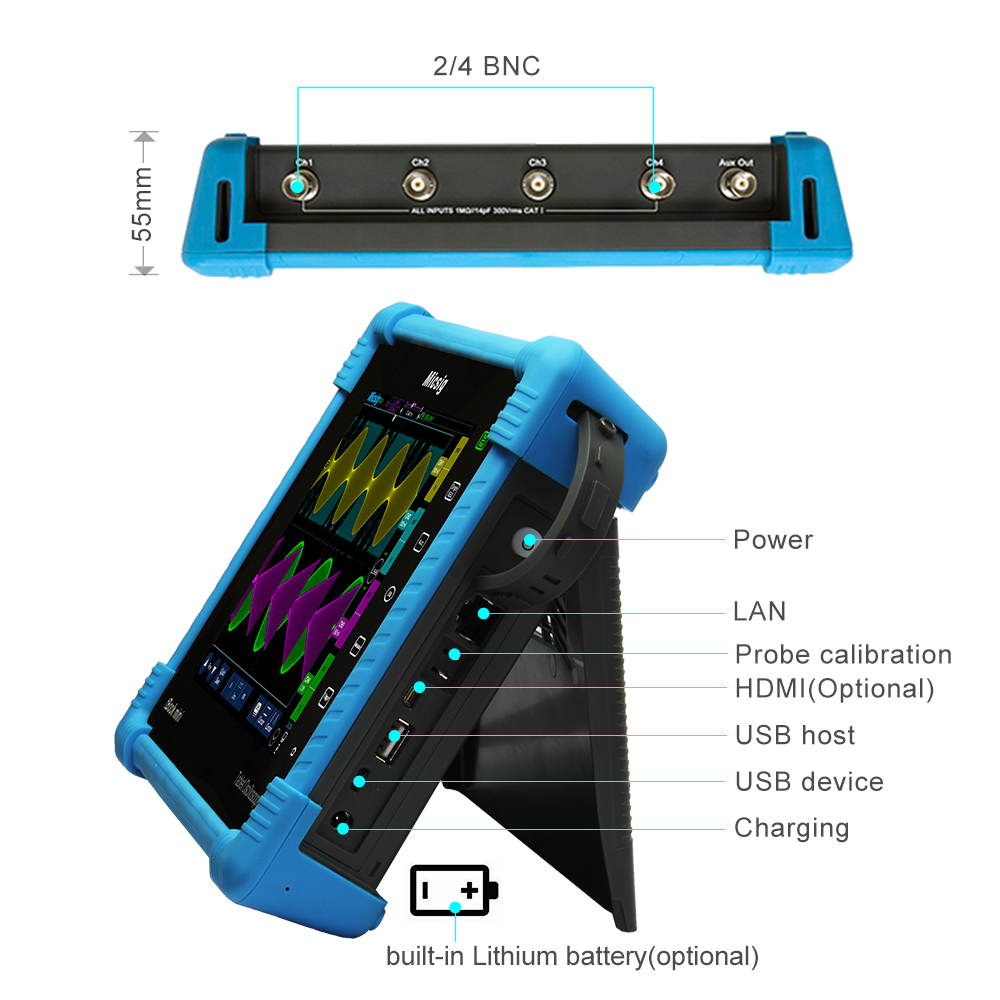

- Various I/O port, LAN, Wifi, USB2.0, USB Device, HDMI, Trigger out, Pass/Fail
