Milli-N Laser Force Sensor System
Size:
(L) 350 x (W) 250 x (H) 50mm
Description
Contact Supplier
Description

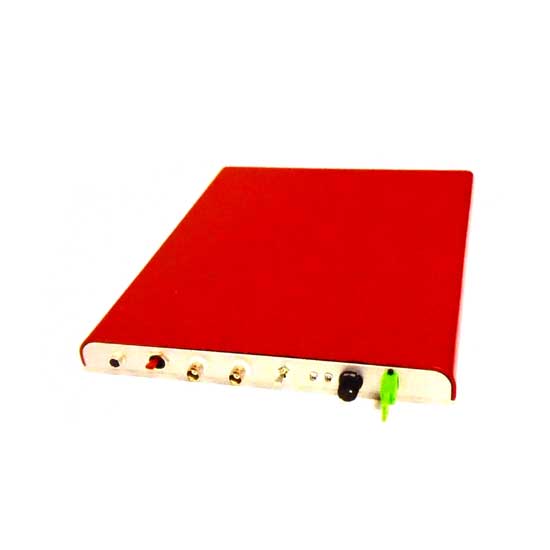

The Milli-N laser force sensor system is a laser or SLD based system for measurement of very low forces. It is professionally engineered for stable and reliable performance. The system can be embedded as a sub-system in an operational environment.
- Optical fiber sensor head.
- Suitable for remote operation.
- Force range capabilities: 5-500mN.
- Resolution: 4mN.
- Sensor head: optical fiber pigtail, 125 microns diameter.
- Sampling rate: 1kHz.
- Response time: <1ms.
- Remote operation: sensor head and processing unit could be placed 100m apart.
- Data logging capability.
- System architecture: sensor head, sensing unit, digital data logging unit, computing and processing unit.
- Warm-up time: < 2 minutes.
- Operating voltage: 5V DC +10%/ -10%.
- Electrical interface.
- Power supply connections: 3 wires.
- Maximum power consumption: typical 5W.
- Operating temperature: 10 to 40 degree C.
- Storage temperature: -20 to + 70 degree C.
- Laser safety class: 3A.
