Mini DIN Power Connecter
Model No.:

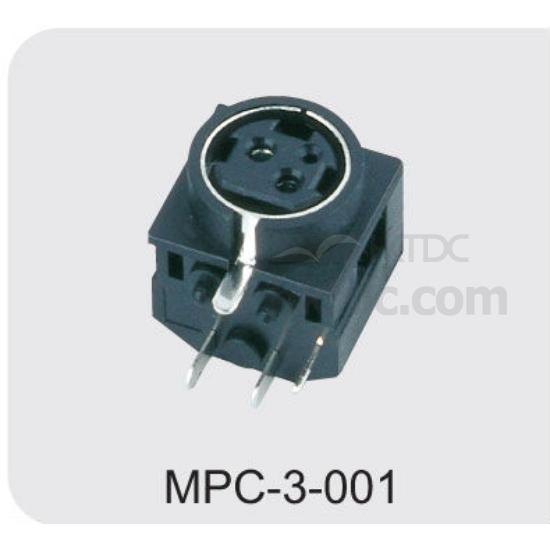

MPC-3-001
Brand:
ZGELE
Colour:
Black
Size:
38 x 38 x 40
Port:
Shanghai, Ningbo
Type of Payment:
T/T in advance
Minimum Order Quantity:
5,000 pc(s)
Description
Contact Supplier
Description
- Temperature: -25℃~+70℃.
- Rating: 3P: 1 & 2:20VDC 7.5A max.
- 3:20 VDC 1A max.

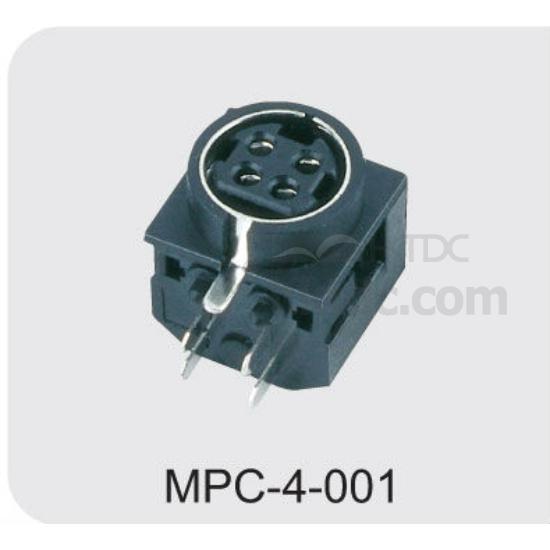

- 4P: 20VDC 7.5A.
- Contact resistance: ≤30mΩ max.
- Insulation resistance: ≥100mΩ min.
- Withstand voltage: 250V AC/1 minute.
- Insertion force: 4.5kgf max.
- Withdrawal force: 0.8kgf min.
- Life: 5000 times.
- Usage: used in PCB, TV, audio/video machine, home appliance and so on.
