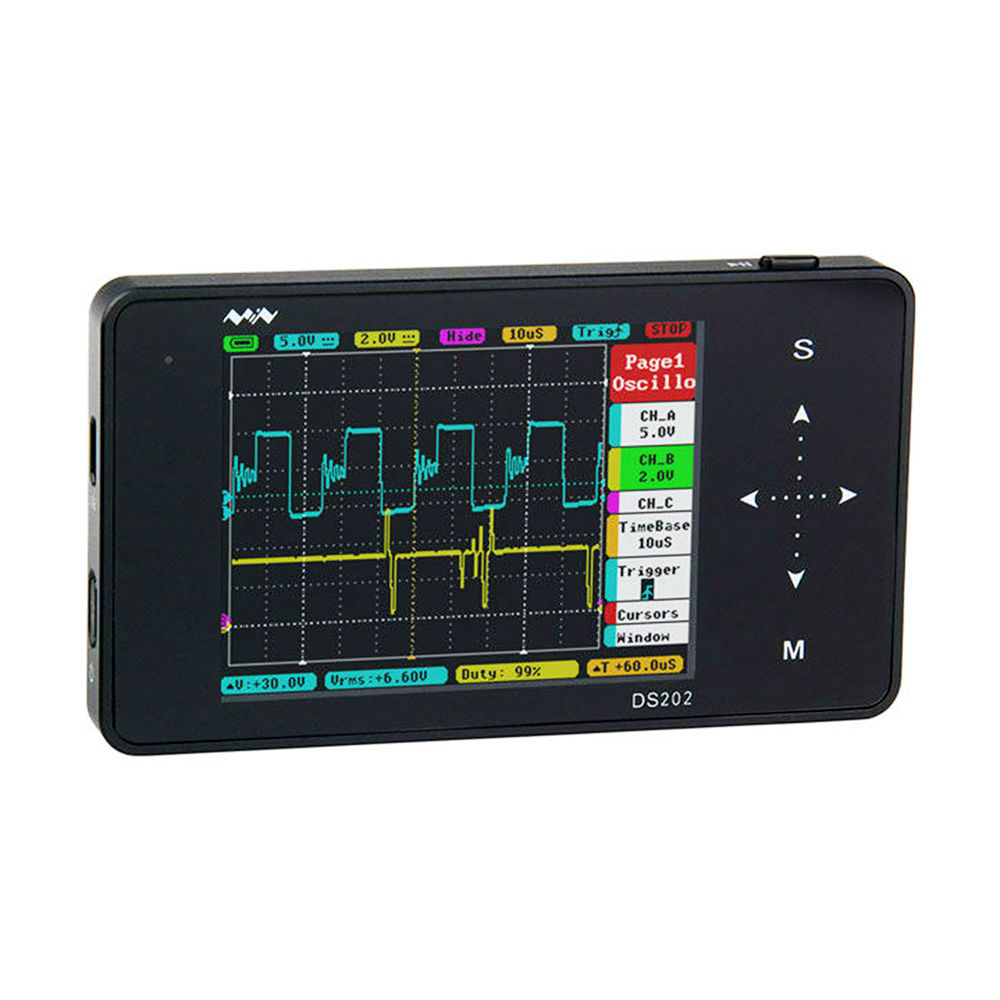

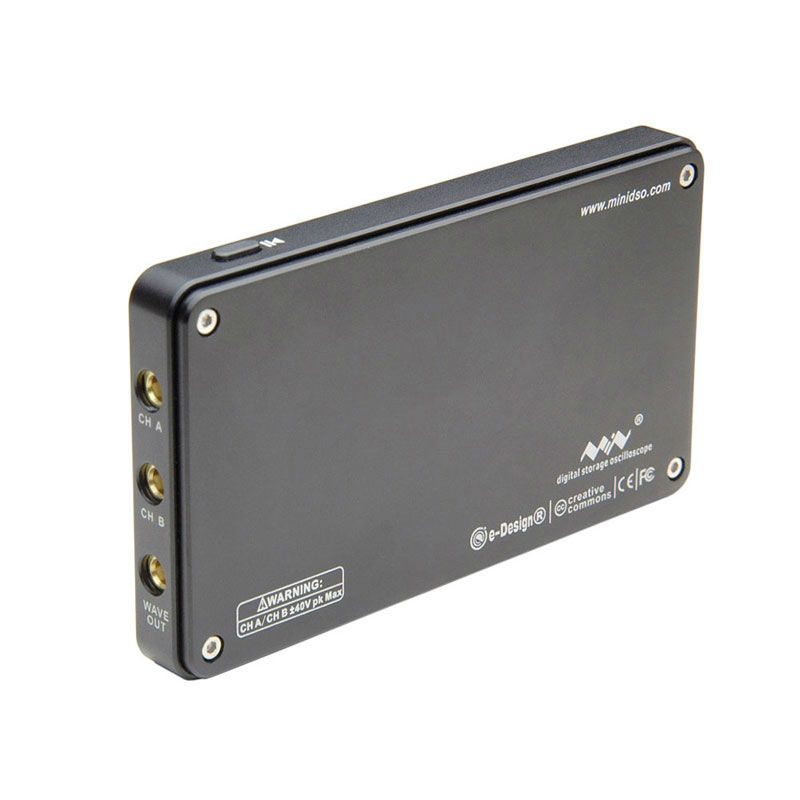

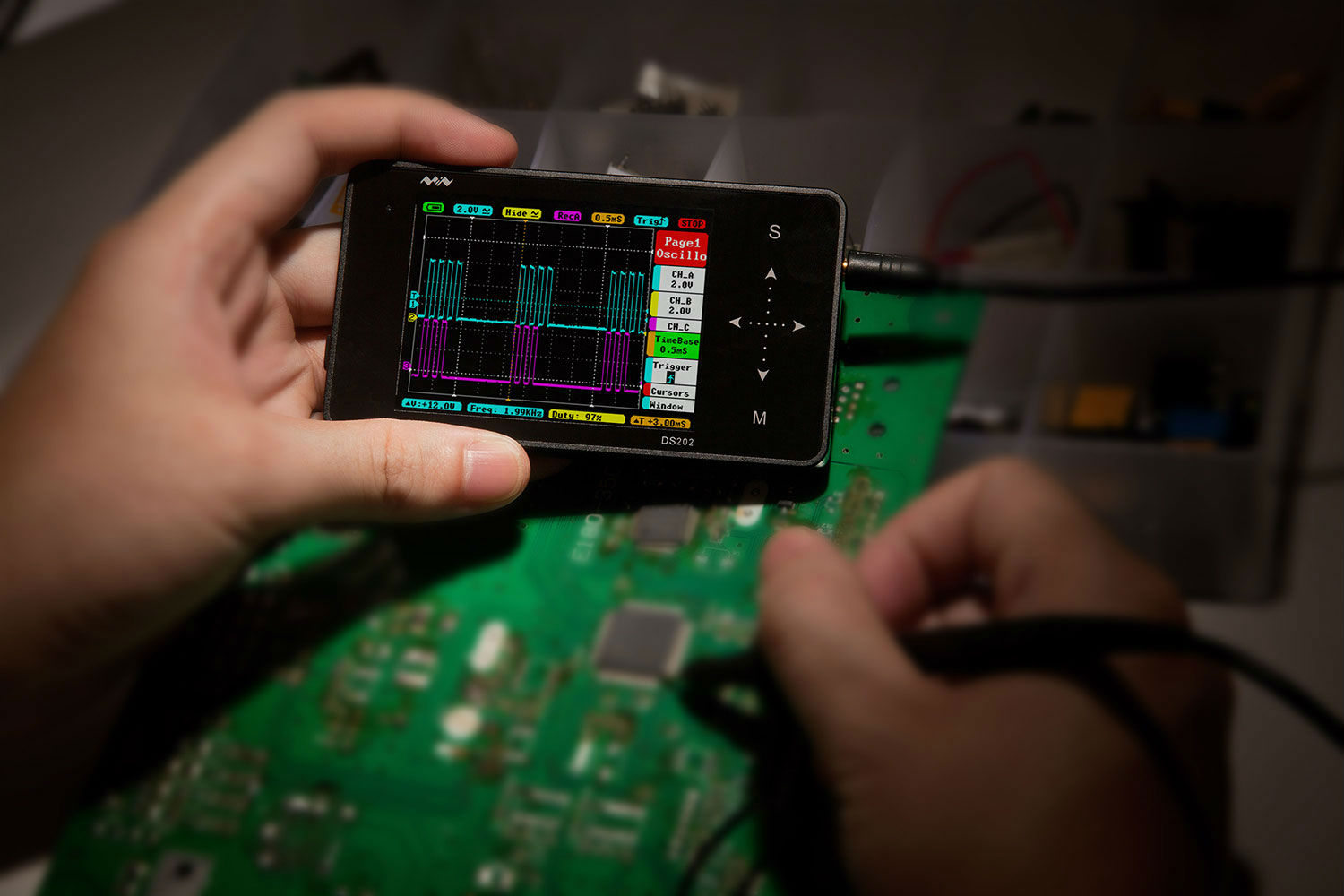

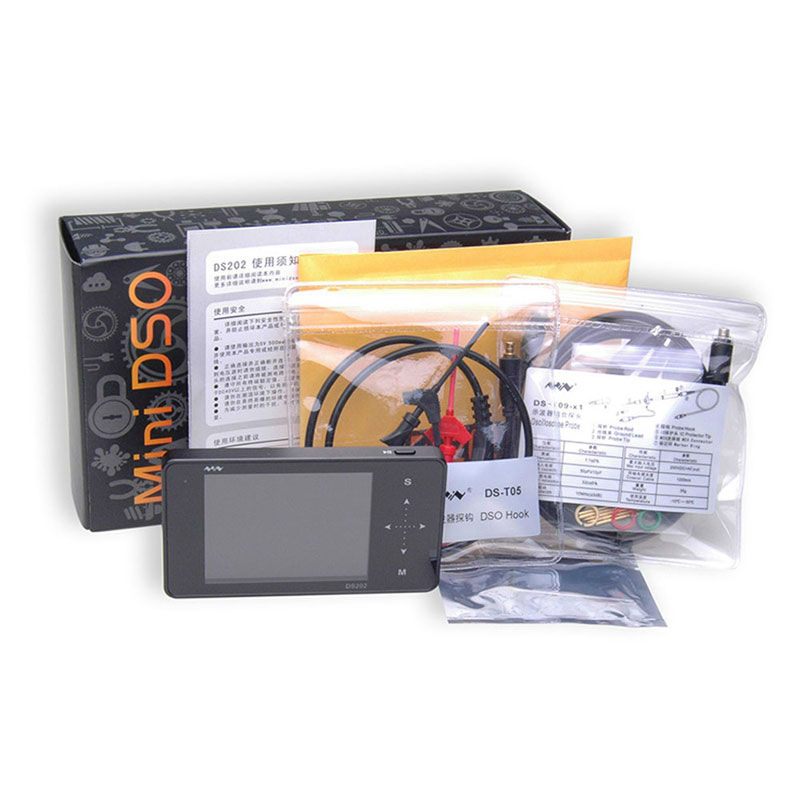

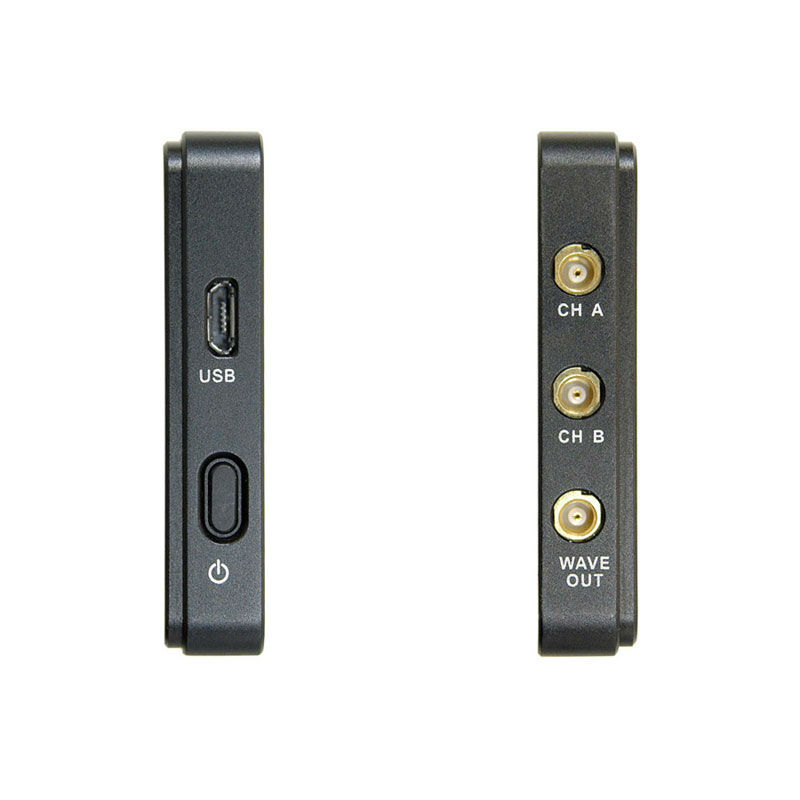

Mini Oscilloscope DS202
Production Lead Time:
42 day(s)
Model No.:
DS202
Brand:
Mini
Colour:
Black
Size:
100mm x 56.5mm x 10.7mm
Port:
Guangzhou, China
Type of Payment:
PayPal
Minimum Order Quantity:
20 set(s)
Customised:
Yes
Description
Contact Supplier
Description
Features:
- Rectangular design.
- Large colorful display.
- Touch screen operation.
- Buttons on the side for control.
- Pocket sized.
- Rising/falling edge trigger.
- Store file as BMP, DAT, BUF, or CSV format.
- Math waveforms:-A, -B, A+B, A-B, Rec A, RecB, RecC.
- Synchronous mode: auto, normal, single, none, scan.
- Inbuilt 8MB U disk storage for waveform data and images.
- Modes of vertical precise, horizontal precise measurement and triggering threshold.
- Auto measurement: frequency, cycle time, duty cycle, DC RMS voltage/ Vpp/ Vmax/ Vmin/ Vavg.
- Inbuilt signal generator/10Hz - 1MHz square wave (duty adjustable) or 10Hz-20KHz sine/square/triangle/sawtooth wave.
- Digital storage oscilloscope.
- Touch screen.
- Coupling: AC/DC.
- Analog bandwidth: 1MHz.
- Max sample rate: 10MSa/s.
- Analog input impedance: 1MΩ.
- Max sample memory depth: 8K.
- Max input voltage: ±40V(X1 probe).
- Horizontal sensitivity: 1uS/Div~2S/Div (1-2-5 sequence step).
- Vertical sensitivity: 20mv/Div~10V/Div (1-2-5 sequence step).
- Capacitive touchscreen, supporting swipe gestures.
- 2.8" full color TFT LCD display (320X240 pixels).
- Recharging through Micro USB port.
- Internal 550mAh lithium battery.
- Weight (with battery): 90g.
- Compliant with EU certification CE FCC.
