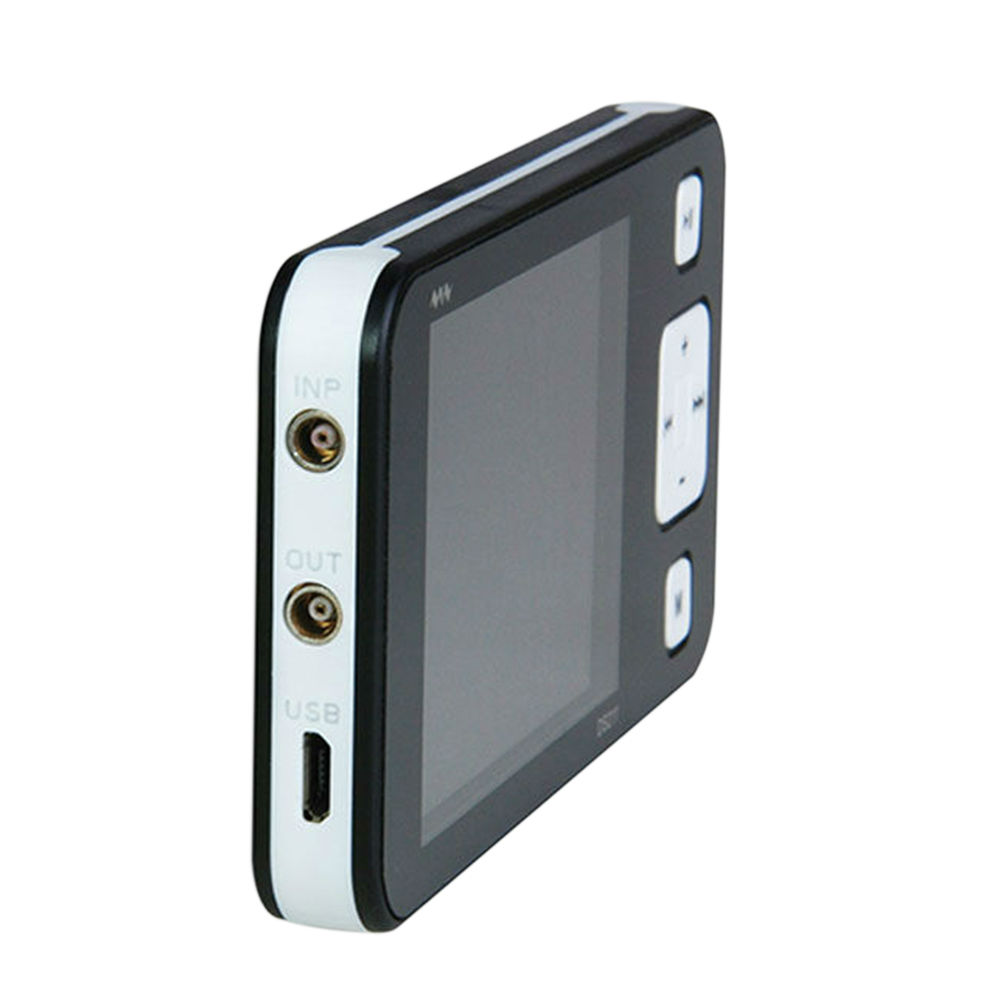

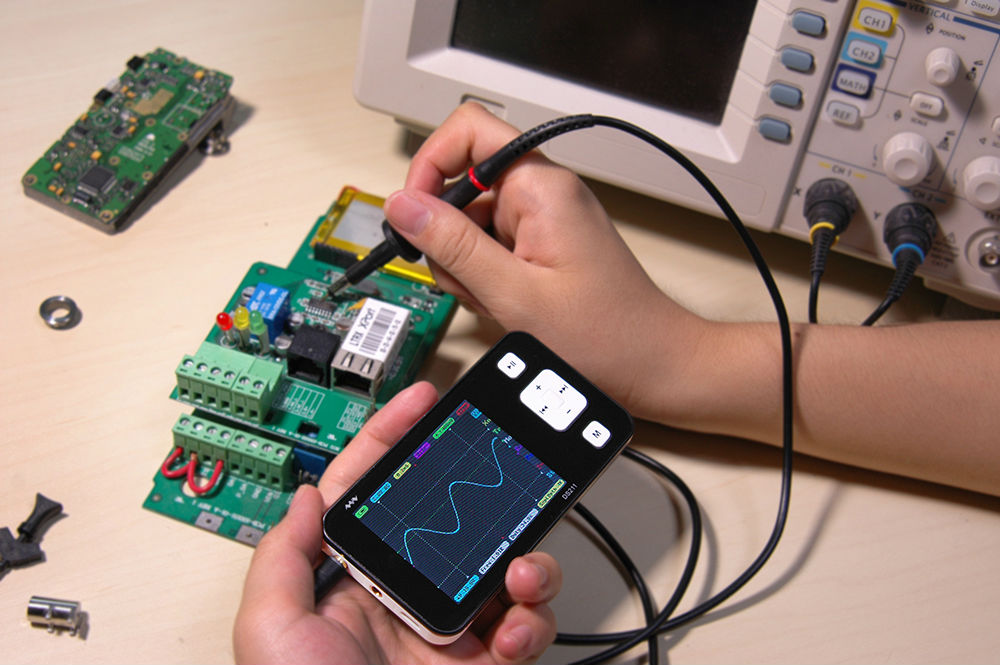

Mini Oscilloscope DS211
Production Lead Time:
42 day(s)
Model No.:
DS211
Brand:
Mini
Colour:
Black
Size:
106.5mm x 55.7mm x 11.5mm
Port:
Guangzhou, China
Type of Payment:
PayPal
Minimum Order Quantity:
20 set(s)
Customised:
Yes
Description
Contact Supplier
Description
Features:
- DSO mini oscilloscope.
- Rising/falling edge trigger.
- Compact rectangular housing.
- Large display screen.
- Buttons on the side.
- Mini pocket sized.
- Compact and lightweight.
- Store file as BMP, DAT, BUF, or CSV format.
- Use build-in flash disk to save/read waveform image.
- Math waveforms: DATA, -DATA, Inp+D, Inp-D, -Inp.
- Output test signal: 10Hz—1MHz (1-2-5 sequence step).
- Synchronous mode: auto, normal, single, none, scan.
- Auto measurement: frequency/duty cycle, DC RMS voltage/Vpp /Vmax/Vmin.

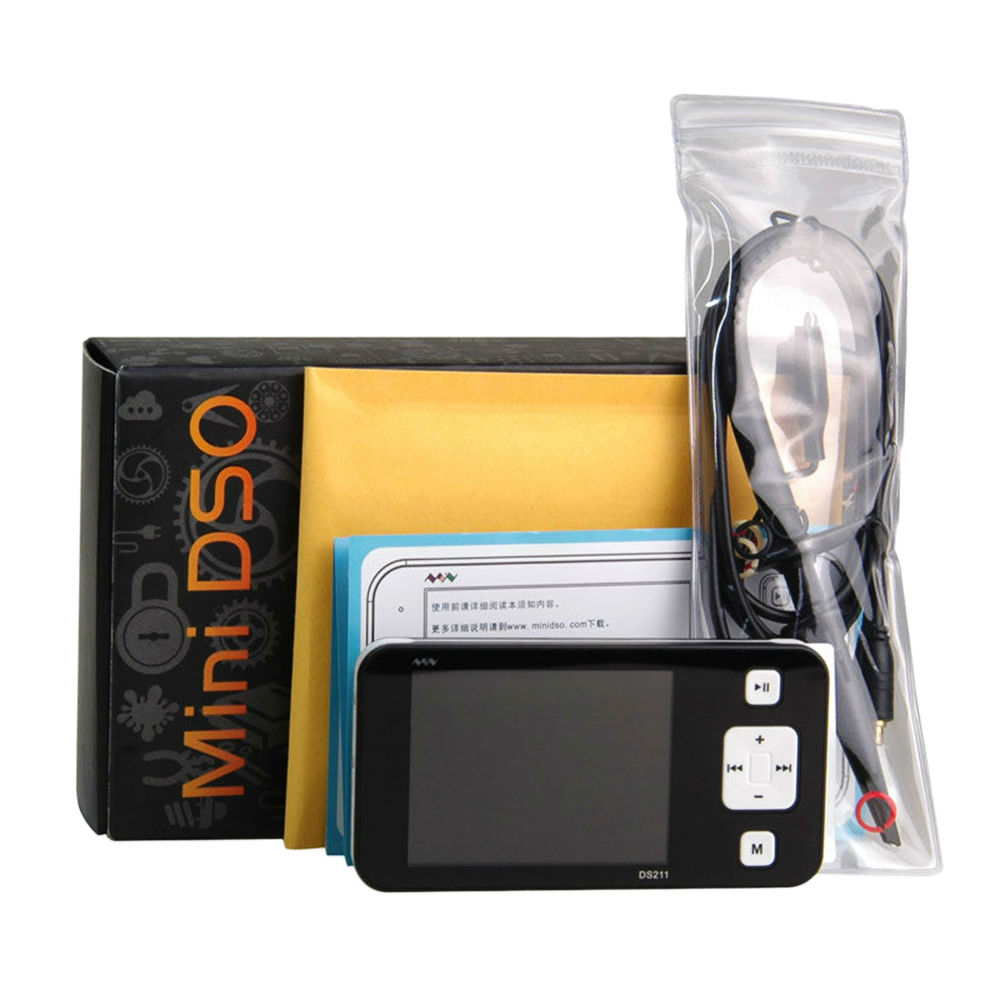

- Package includes: oscilloscope probe x 1.
- Lightweight digital storage oscilloscope.
- Coupling: DC/AC.
- Max sampling rate: 1 MSa/s.
- Analog broadband: 200kHz.
- Max sampling memory depth: 8K.
- Analog input impedance: 1MΩ.

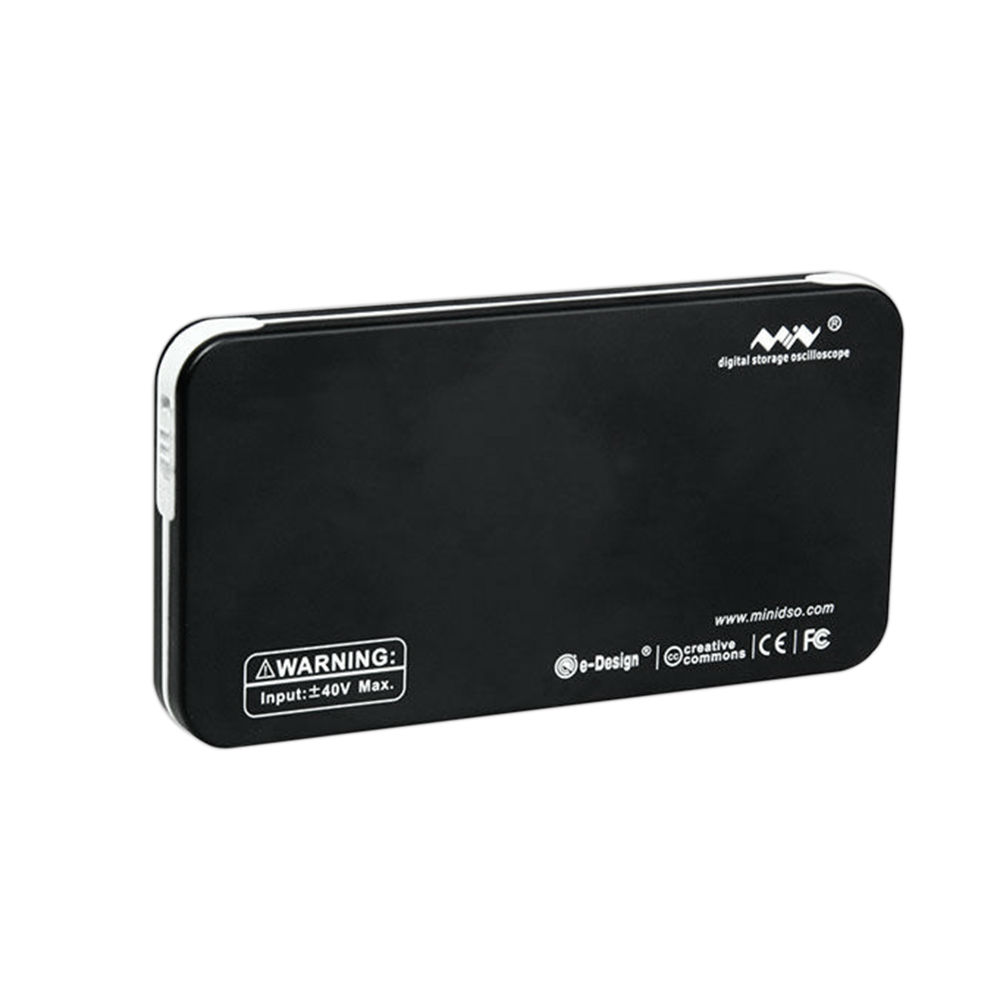

- Max input voltage: ±40Vpp(x1 probe).
- Vertical sensitivity: 10mv/Div~10V/Div (1-2-5 sequence step).
- Horizontal sensitivity: 1uS/Div~10S/Div (1-2-5 sequence step).

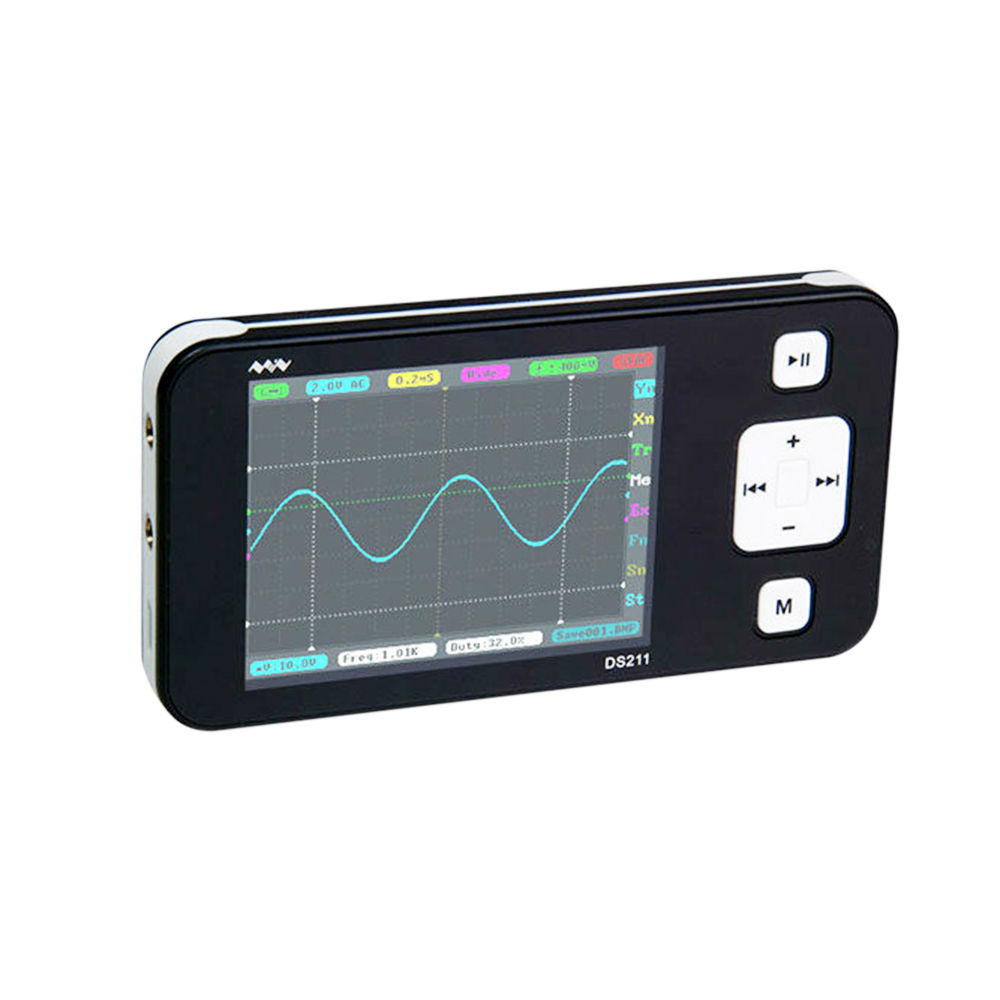

- 2.8"color TFT LCD display (320×240 pixels).
- Recharging through mini USB port.
- Internal 500mAh lithium battery.
- Weight: 65g.
