Mini PC
Model No.:
S67
Brand:
DreamVision
Size:
146 x 250 x 42mm
Description
Contact Supplier
Description

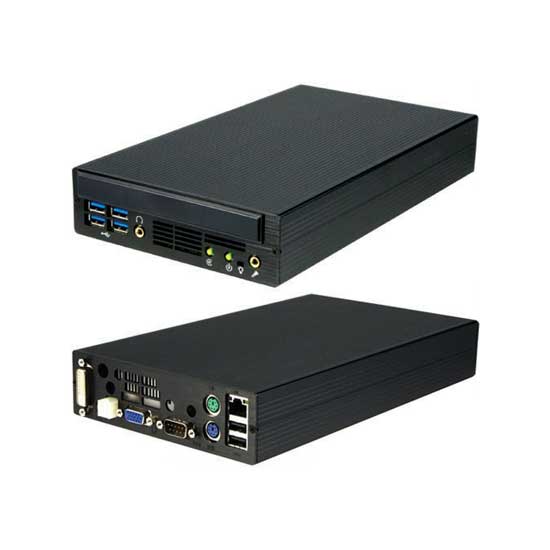

This mini PC is an industrial personal computer that is made with a durable casing. It is equipped with a stable and reliable CPU for highly smooth operation. The ultra-compact PC can fit virtually anywhere.
- Core Logic Intel HM76 (panther point).
- Processor Intel FCPGA988B socket, the third generation Intel Core i7-3610QE, i5-3610ME mobile CPU (Ivy Bridge), the second generation Intel Core i5-2540M, i5-2520M, i5-2510E, i3-2330E, Celeron B810 mobile CPU (Sandy Bridge).
- Memory support DDR3 1,333 and 1,600MHz non-ECC SODIMM x 2 (Ivy Bridge), support DDR3 1,066 and 1,333MHz non-ECC SODIMM x 2 (Sandy Bridge), total memory size up to 16GB,
- Graphics integrated Intel HD graphics 4,000 in processor (Ivy Bridge) or HD graphics 3,000 in processor (Sandy Bridge).
- Audio Realtek ALC892 high definition 6 channels audio CODEC.
- LAN built-in Intel 82574L 100/1000Mbps Intel Ethernet controller.
- Storage devices supports SATA 6Gb/s and 3Gb/s specification, supports 2.5" SATA hard disk drive and solid state drive, supports SATA slim DVD-ROM combo, DVD-RW drive.
- BIOS & hardware monitor Insyde UEFI BIOS CPU temperature, cooling fan speed, system voltage.
- Power management auto power-on BIOS ACPI 4.0a compliance OS direct power management; wake-on event.
- Switches and connecting ports front panel: 4 x USB 3.0 ports (compatible to USB2.0/1.1), 1 x MIC port; 1 x ear phone jack power-on & reset buttons power and HDD LED back panel: 1 x VGA port, 1 x DVI-D port (optional), 1 x RS232(COM) port (the second COM port is optional), 1 x line-out phone jack, 1 x RJ45 10/100/1,000Mb fast Ethernet, 2 x PS/2 ports for keyboard & mouse, 2 x USB 2.0 / 1.1 ports, 1 x DC 10-26V power-in jack Internal: 2 x mini PCIe slots (optional) support one full size and one half size mini cards.
- Power input 220V AC adapter for home and office DC 10-26V/car kit with minimum 80W power input; support auto and delay power on function. ready for car, truck and boat.
- Accessories power adaptor, driver CD, user's guide, CPU cooler, screws pack, optional VESA mounting kit.
