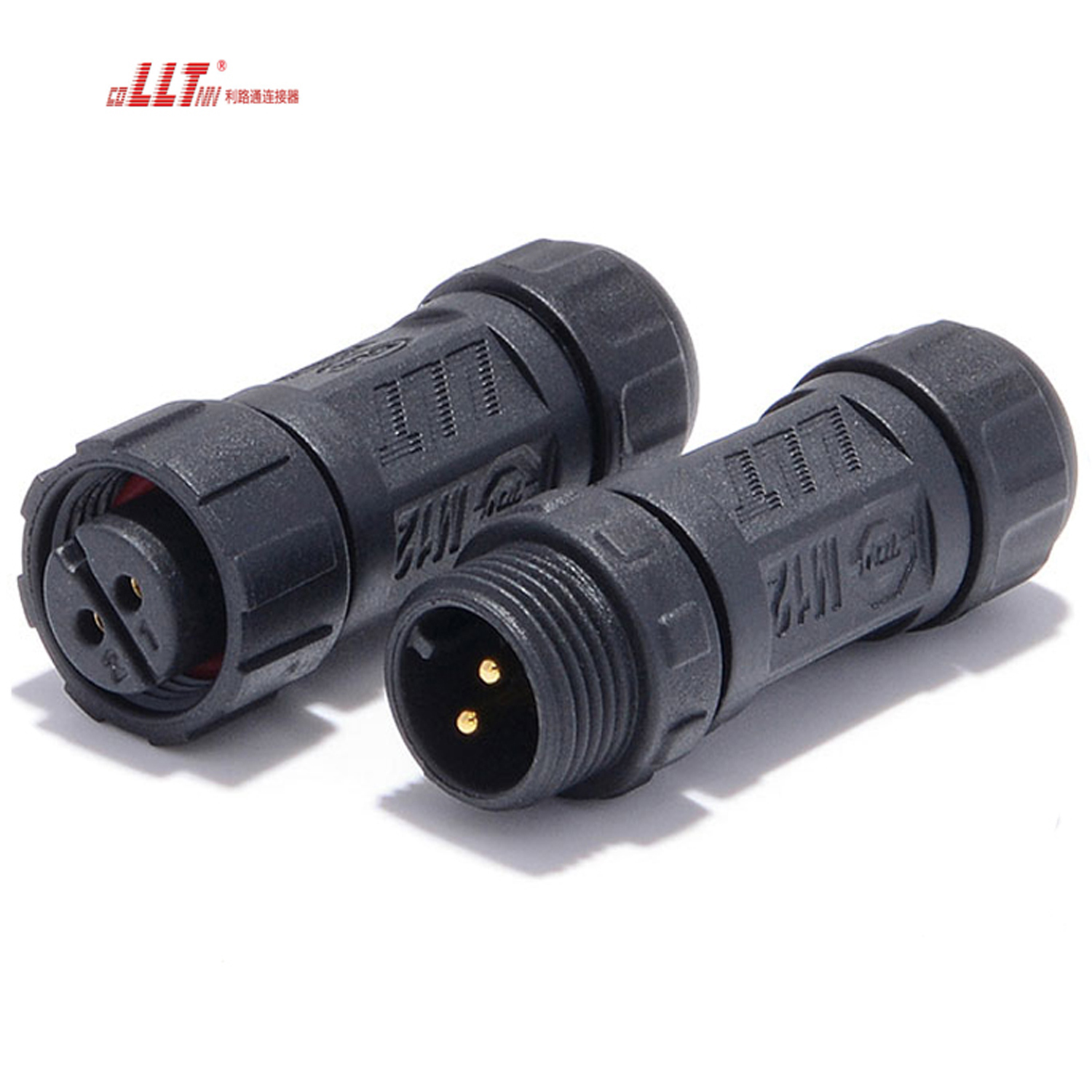

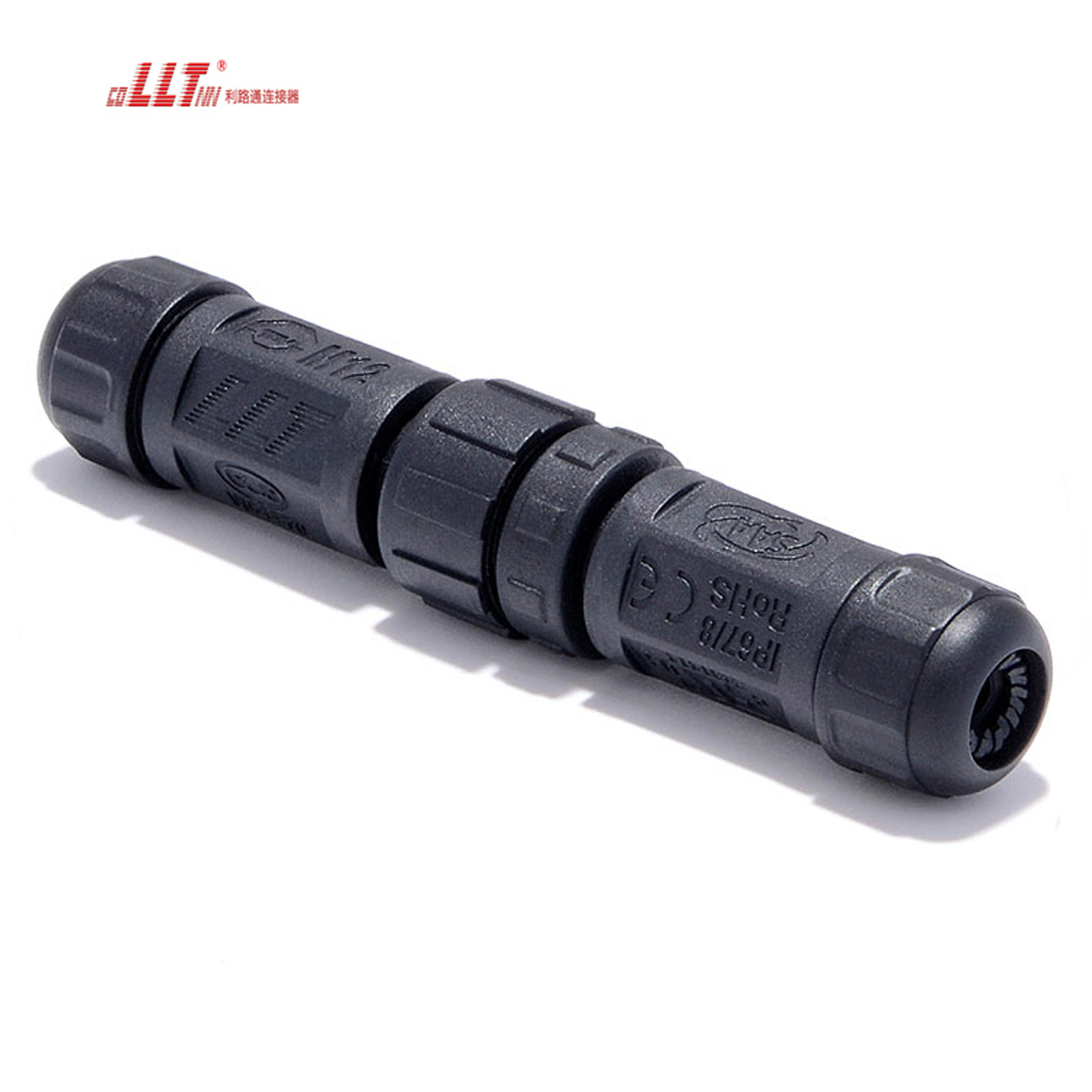

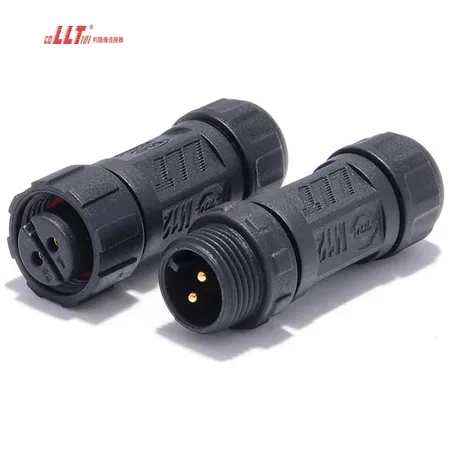

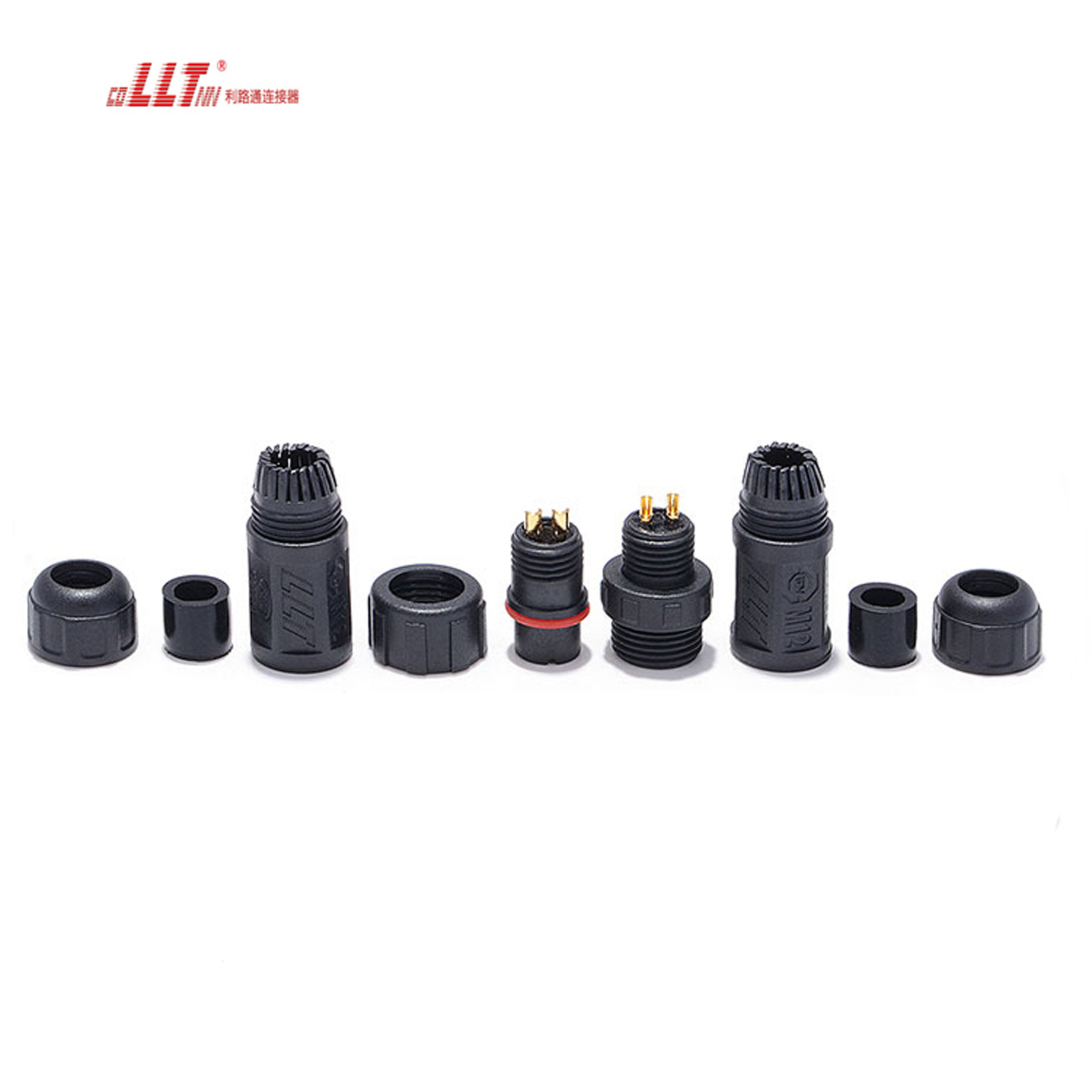

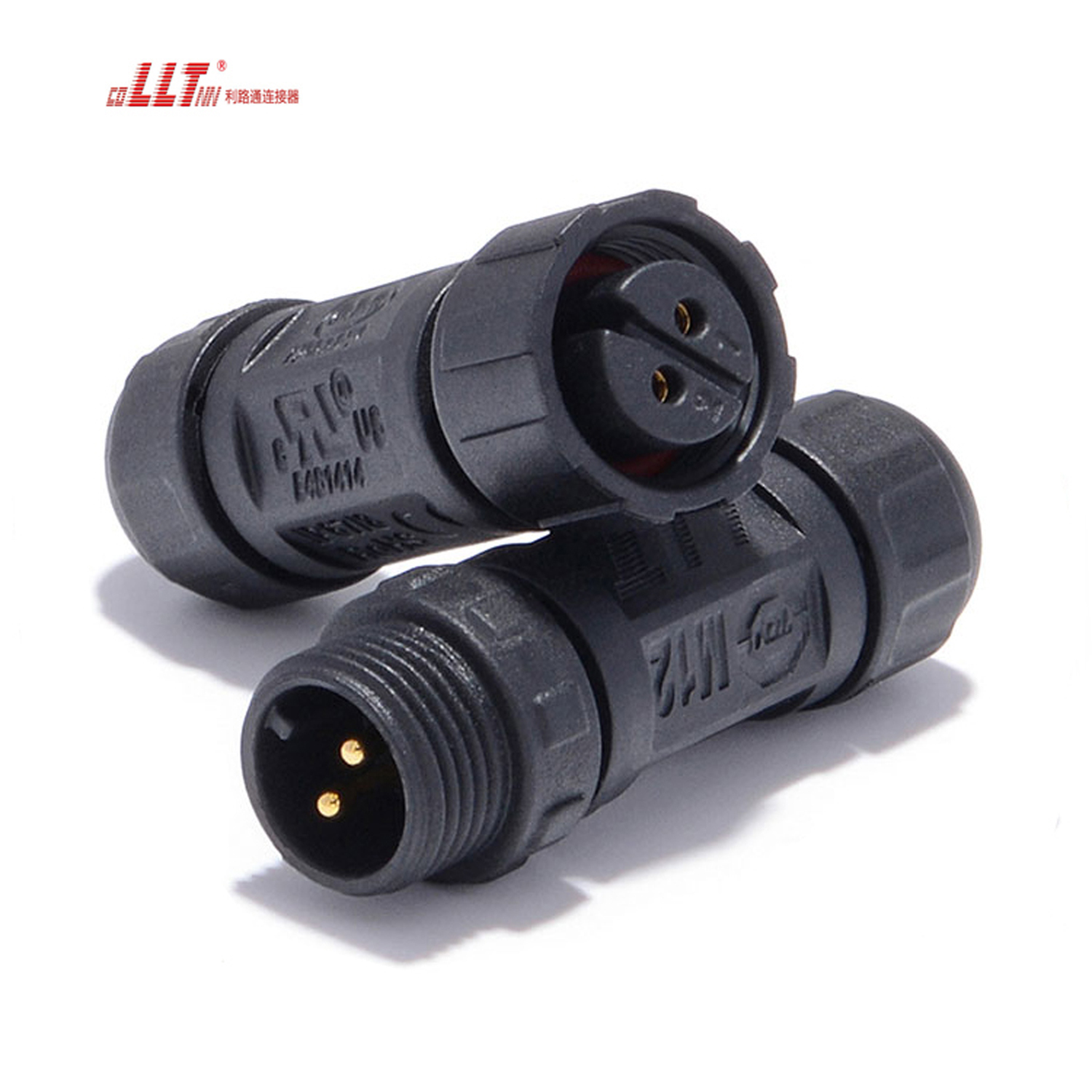

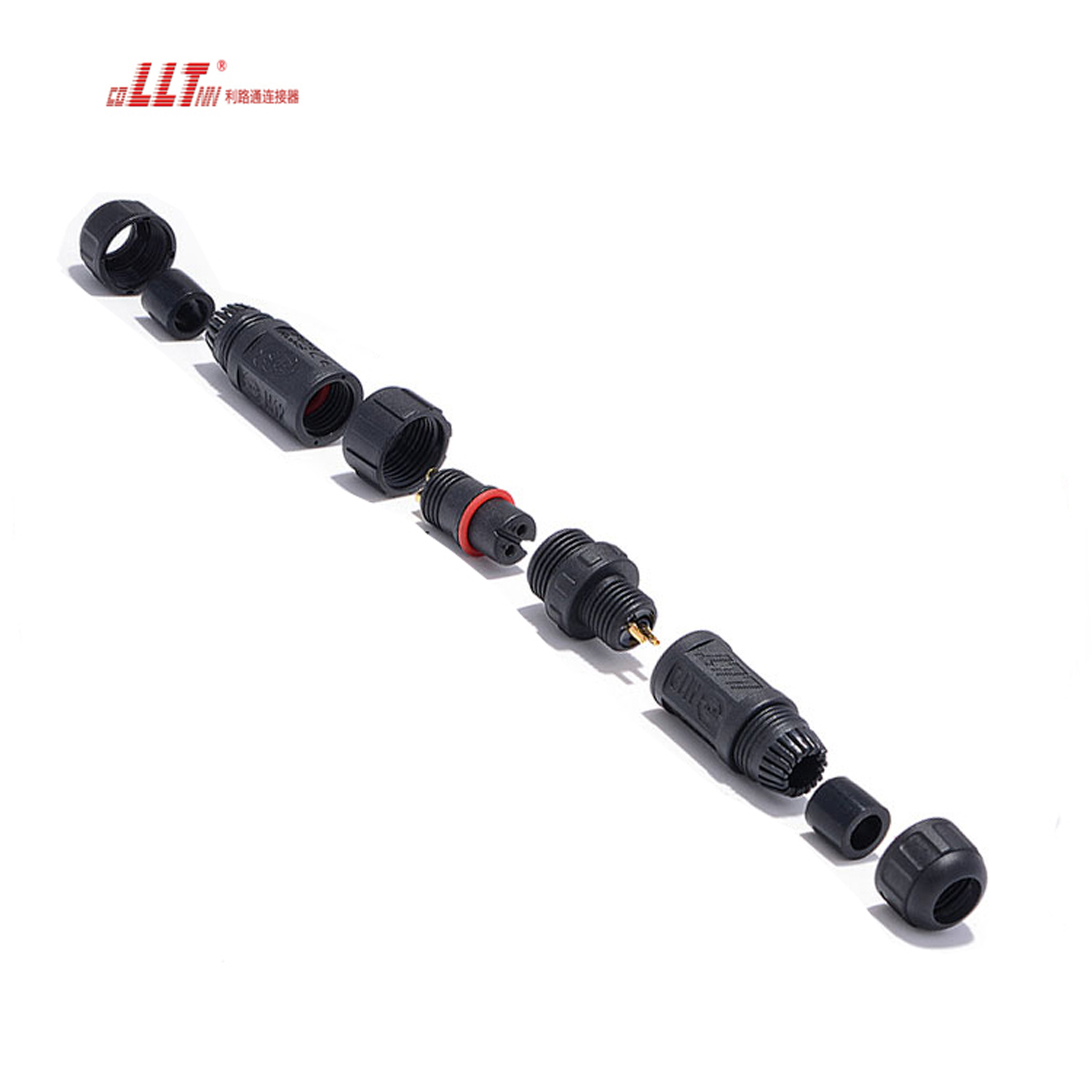

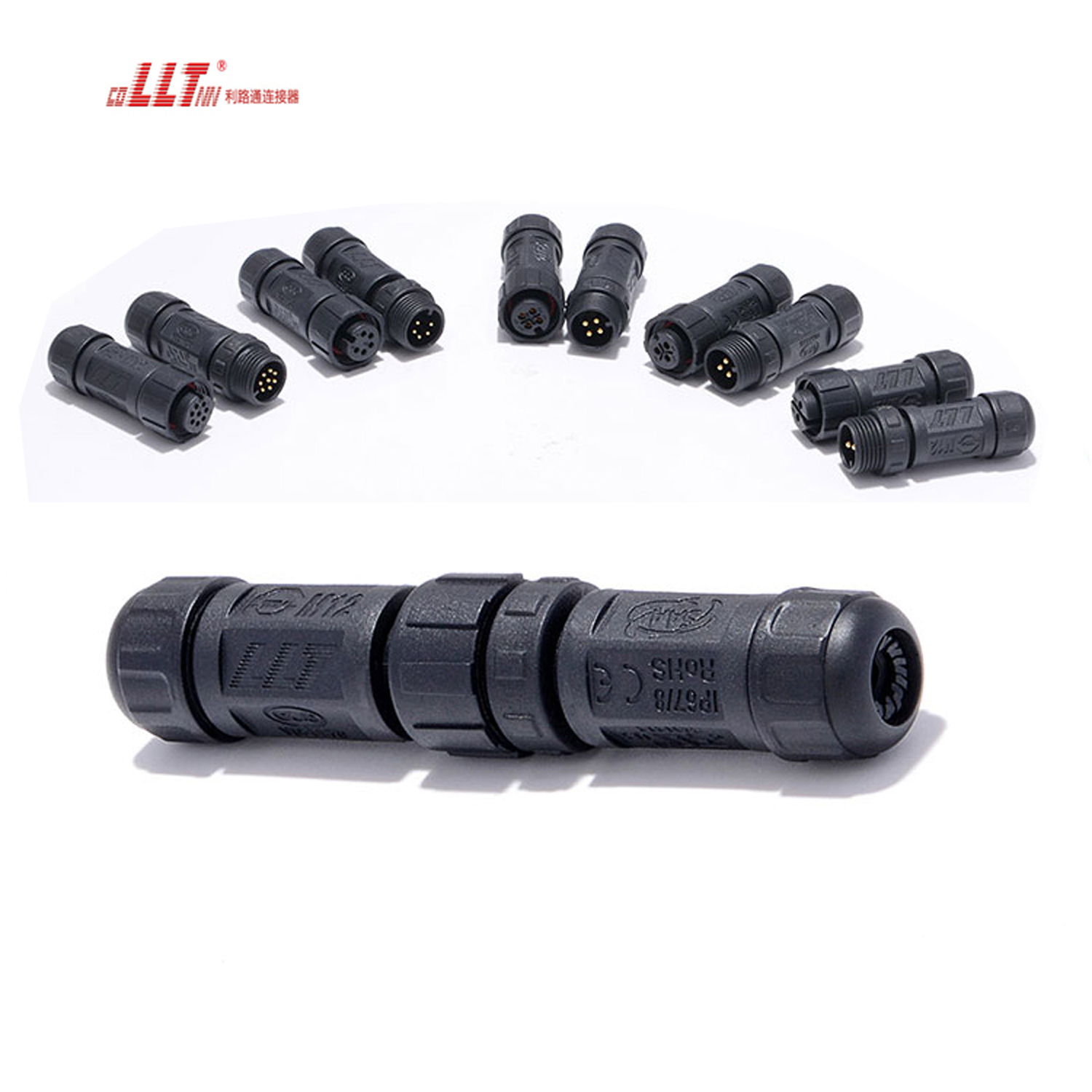

Mini Sensor 2pin M12 Thread Lock IP68 Waterproof Solder Wire Connector 4 5 6 7pin
US $1.00 - US $3.00
Production Lead Time:
7 day(s)
Shipping Method:
By express,By sea,By air
Model No.:
LLT-M12-10002F1051
Brand:
LLT
Feature:
110V/10A
Waterproof Level::
IP68
Warranty::
12 Month
Application:
used in LED light ,outdoor display ,electrical equipment ,automation machine ,electrical technolgy and medical equipment ,interactive samart grid,automation machine ,industrial pc ,marine device .
Description
Contact Supplier
Description
Model number:LLT-M12-10002F1051
Connector Body:Nylon(PA 66)+GF UL94V-0 1/16"
Sealing:Silica Gel
Contact: Brass with gold plated
Lock style: Thread lock
Temperature Rating:-40°C~+105°C
Current rating:10A
Voltage rating:110V
Waterproof Rating:IP68
Contact resistance:<=10mΩ
Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:1 to 8 and 2+2/2+3/2+4 pin.
Cable Range:3.5-6.1mm
Sealing:Silica Gel
Contact: Brass with gold plated
Lock style: Thread lock
Temperature Rating:-40°C~+105°C
Current rating:10A
Voltage rating:110V
Waterproof Rating:IP68
Contact resistance:<=10mΩ
Insulation resistance:1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range:1 to 8 and 2+2/2+3/2+4 pin.
Cable Range:3.5-6.1mm
Terminal attach cable:By solder
