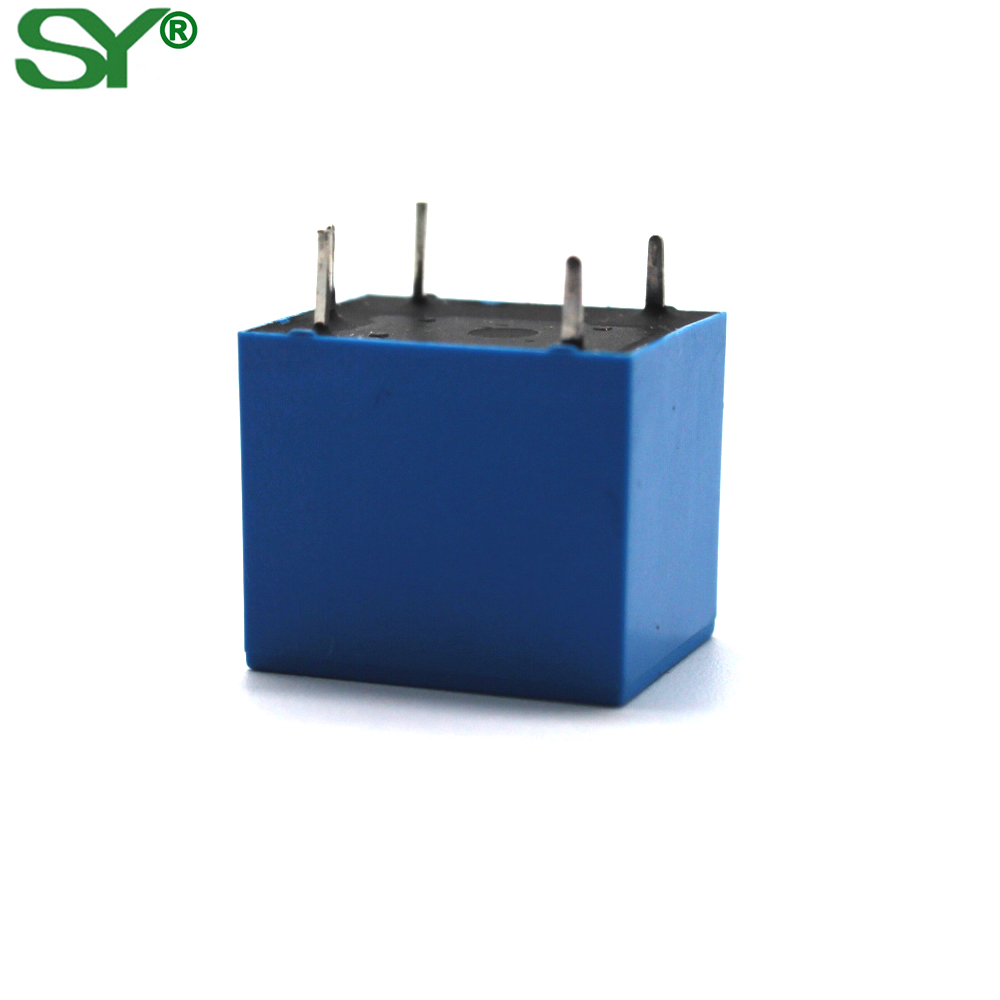

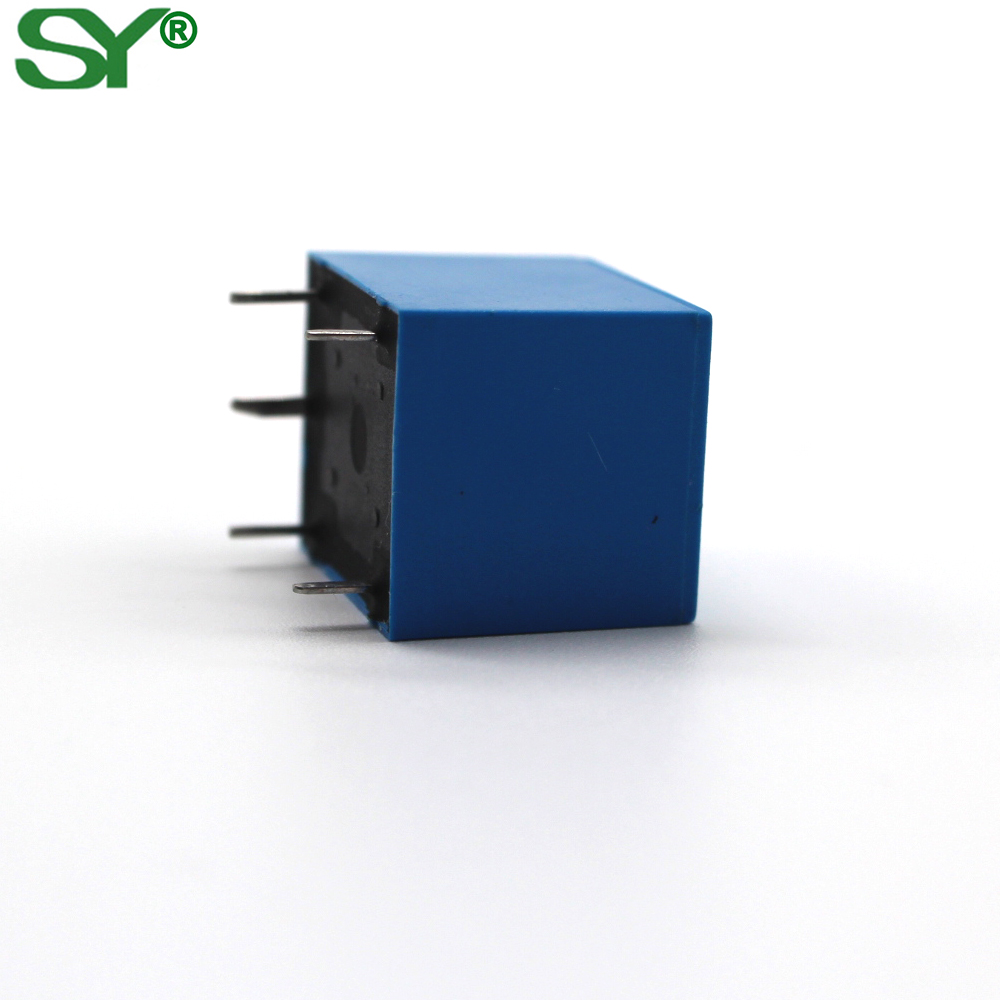

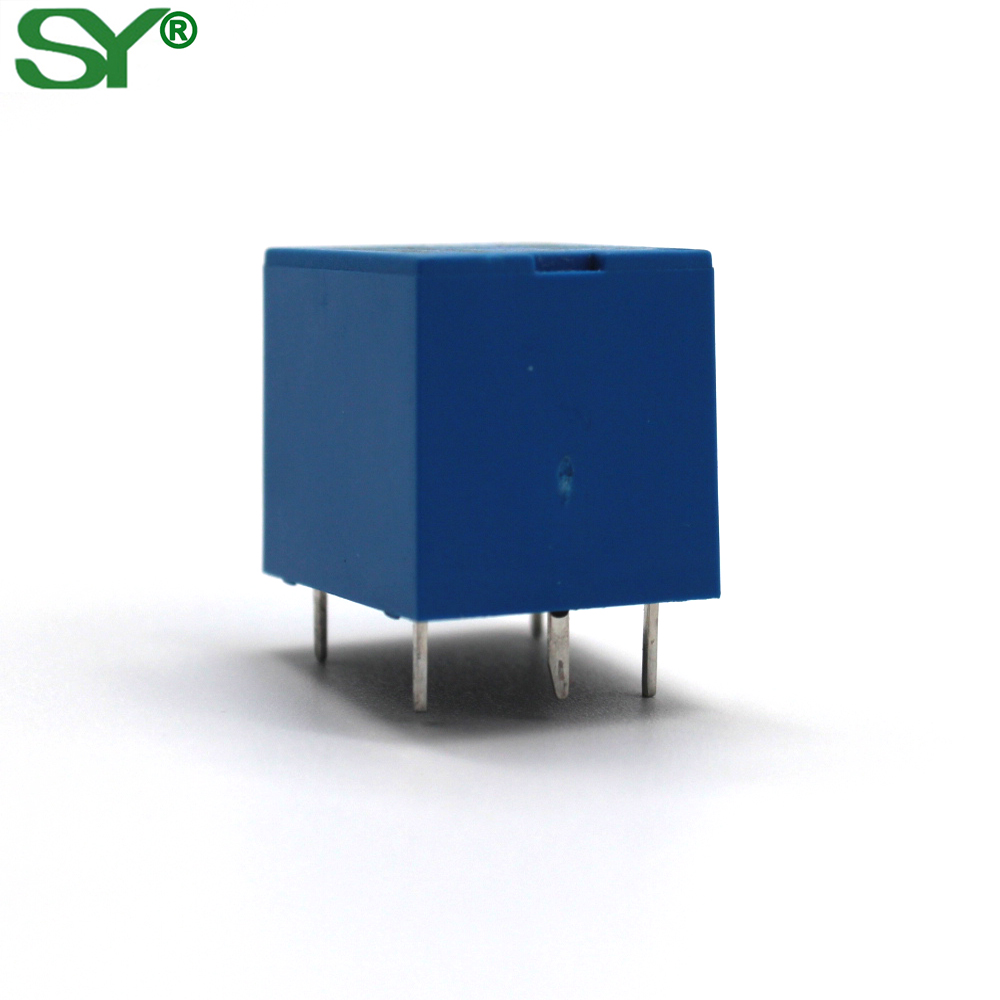

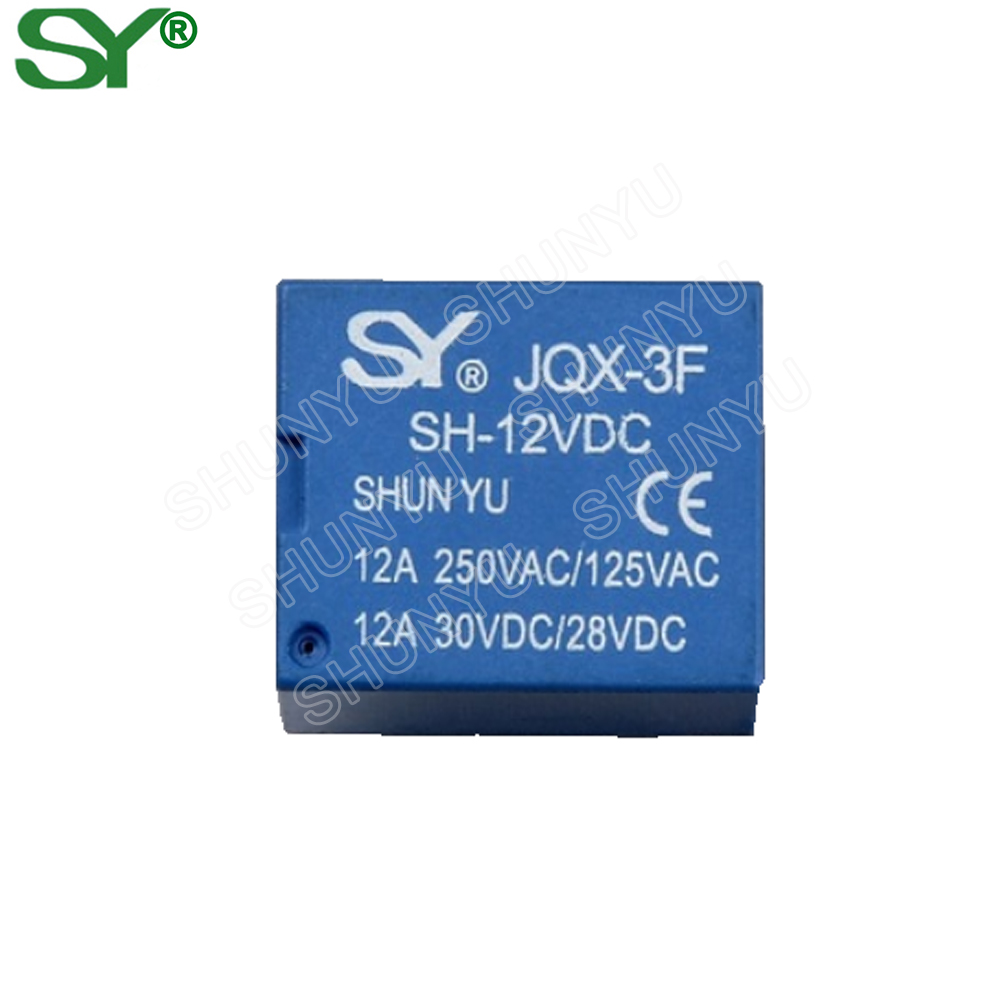

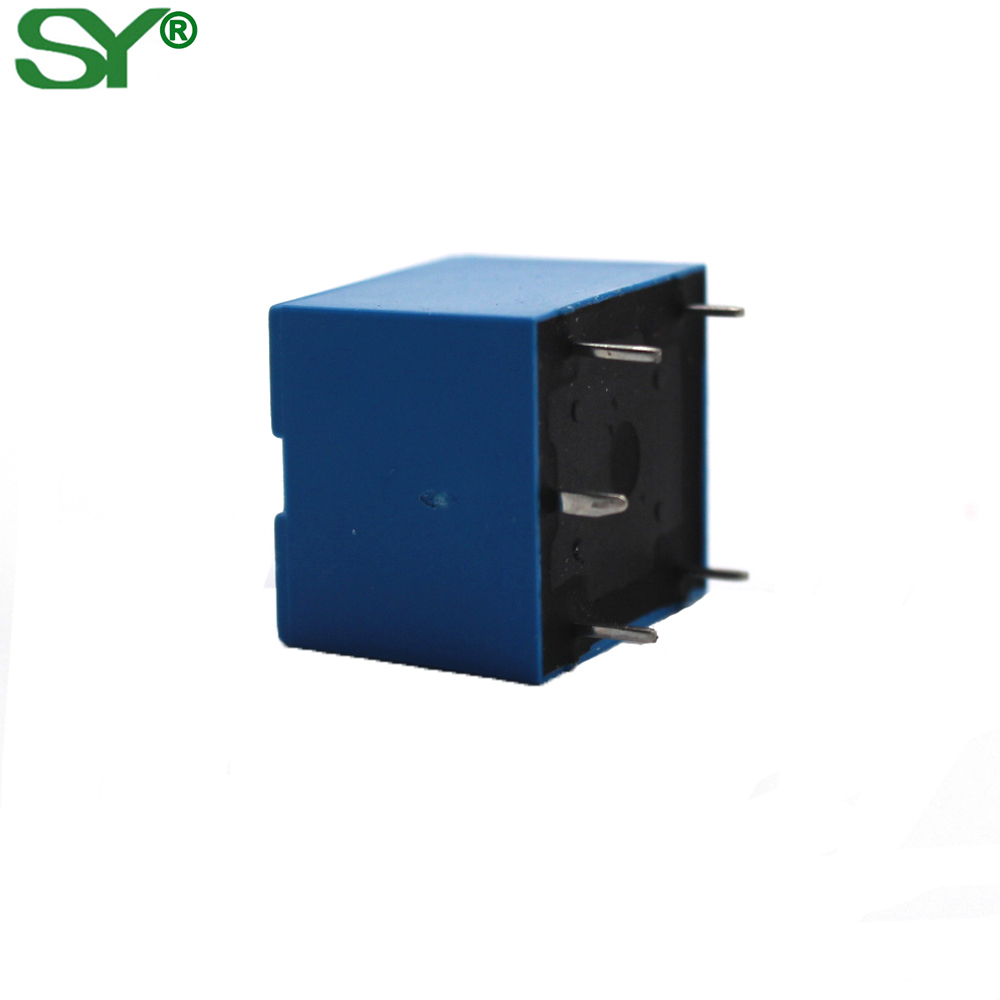

Mini Size Cube Relay
Share this page
Production Lead Time:
3 day(s)
Model No.:
T73
Brand:
SHUNYU
Colour:
blue/black
Size:
19x15.5x15.5mm
Port:
Guangzhou, Shenzhen
Type of Payment:
T/T, L/C
Minimum Order Quantity:
1,000
Contact Load:
Low Power
Protect Feature:
Epoxy
Usage:
PCB (Printed Circuit Board)
Size:
Subminiature
Package:
Yes
Customised:
Yes
Description
Contact Supplier
Description
Relay is an electrically operated switch. Mainly relays used an electromagnet to mechanically operate a switch, but other operating principles are also used, such as solid-state relays. Relays are used where it is necessary to control a circuit by a separate low-power signal, or where several circuits must be controlled by one signal. The first relays were used in long distance telegraph circuits as amplifiers: they repeated the signal coming in from one circuit and re-transmitted it on another circuit. Relays were used extensively in telephone exchanges and early computers to perform logical operations.

Technical Spec:
  • Contact Form  1H,1Z
  • Contact Resistance ≤100mΩ(1A 6VDC)
  • Contact Material    AgCdO  AgSnO2
  • Contact Rating   7A 250VAC/30VDC
  • 10A 250VAC/30VAC
  • Insulation Resistance ≥100mΩ
  • Dielectric Strength BCC≥1500VAC1min
  • BOC≥750VAC 1min
  • Operate/Release Time ≤10ms/5ms
  • Terminal Type PCB
  • Rated Coil Power  360mW(48VDC 0.51W)
  • Ambient temperature -40℃ to +85℃
  • Electrical life 100000ops
  • Mechanical life 10000000ops
  • Vibration resistance 10Hz-55Hz 1.5mm
