Mini Soldering Iron Kit
Production Lead Time:
42 day(s)
Weight:
35 gram
Model No.:
TS100 standard
Brand:
Mini
Colour:
Black
Size:
168mm
Port:
China
Type of Payment:
PayPal
Minimum Order Quantity:
20
Customised:
Yes
Usage:
Welding electronic equipment
Welding Mode:
internal-heating soldering
Description
Contact Supplier
Description

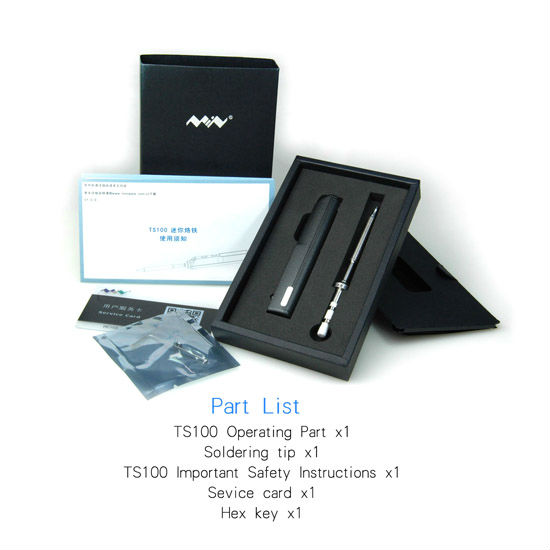

Standard kit
Specifications:

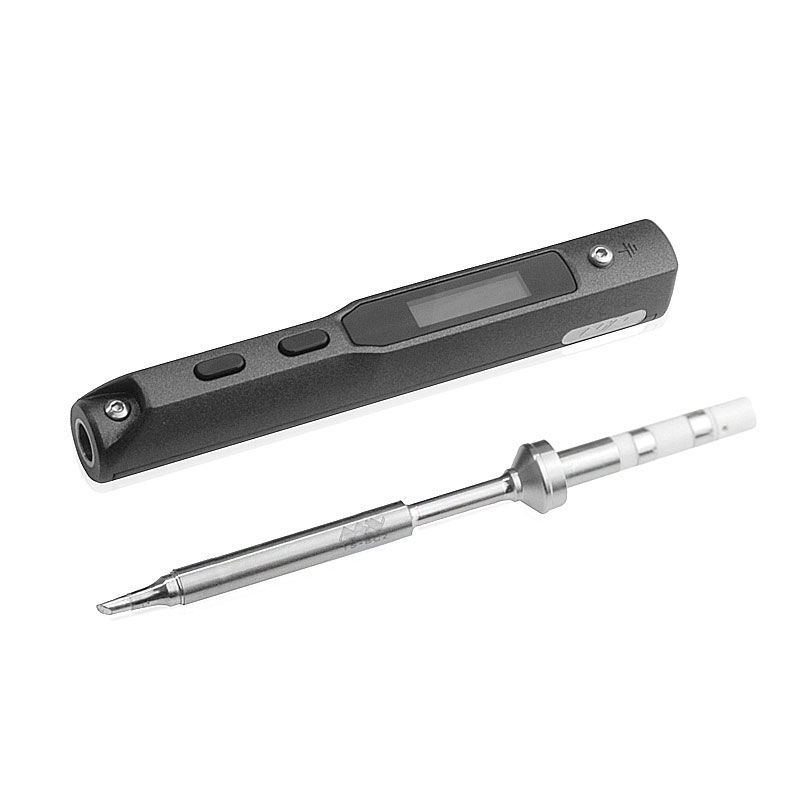

- Controller: TS100’s shell is made of polycarbonate plastic, while employs 304 stainless steel embedment for inserting soldering tips. It is designed with safety circuit and anti-static structure, integrated with DC5525 12-24V port, dual-temperature sensors and accelerated sensors with STM32 chip. Under these features, the temperature can be controlled accurately, stably and easily adjusted from 100°C to 400°C, and the TS100 also has sleep mode and automatic over-heating warning.
- Soldering tip: built-in heating core, pocket-size making it more convenient. Seven replaceable tips meet your different needs.

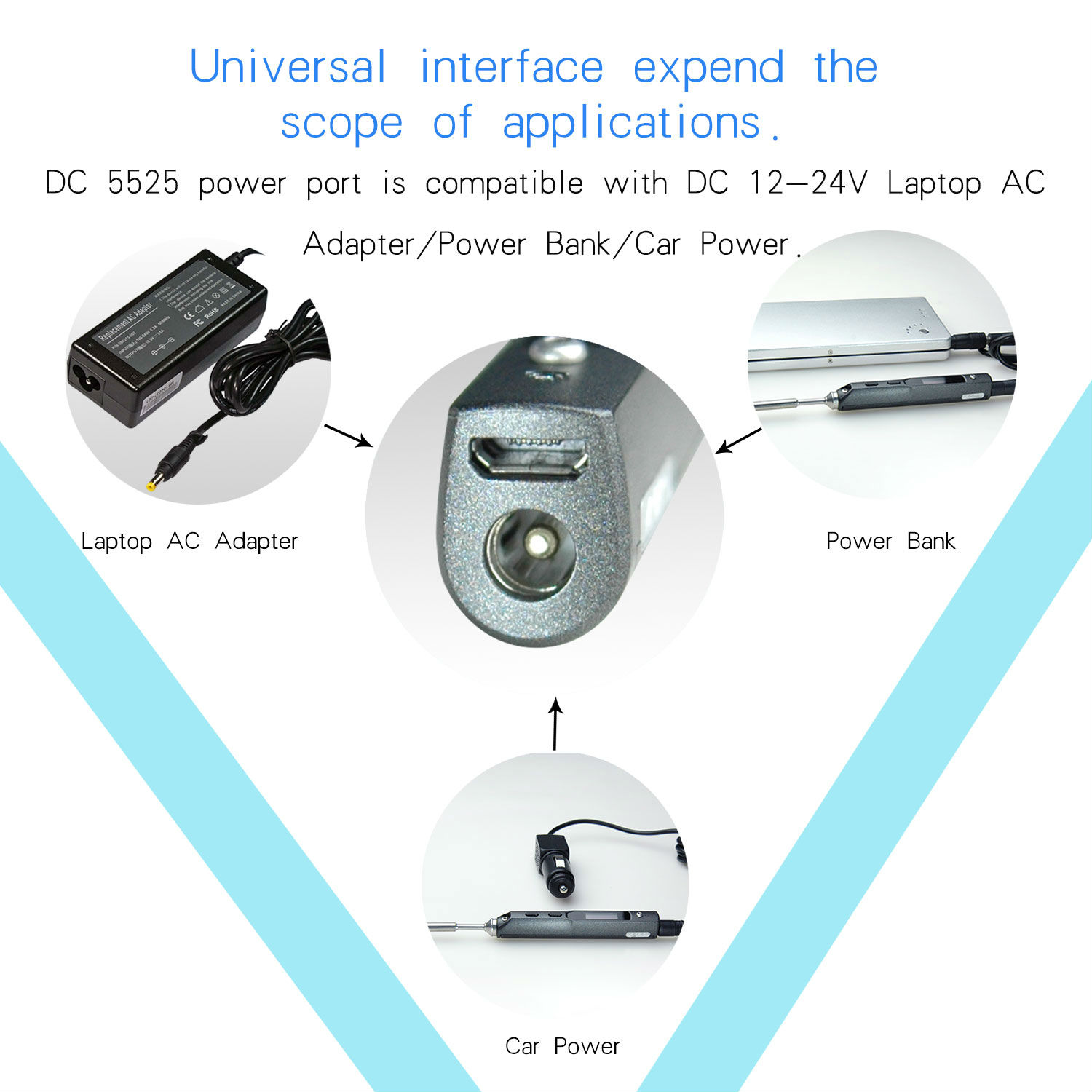

- External power supply: DC5525 power port is compatible with DC 12-24V laptop AC adapter/power bank/car power.
- Micro USB port interface: set up config files to design your own temperature rising curves and custom functions.
- Additional function: open-source application layer.
Specifications:
- Power: 65W.
- Temperature stability: ±2%.
- Soldering tip resistance to ground: <2Ω.
- Temperature range: 100℃ - 400℃ (max).
- Max operation ambient temperature: 40°C.
- OLED screen.
- Micro USB port.
- DC5525 port.
- 7 types of soldering iron tips available.
- Fashionable and detachable.
- Open source.
- Efficient to work with.
- Wide compatibility.
- Control part: length: 96mm, diameter: 16.5mm.
- Heating part: length: 72+33mm, diameter: 5.5mm.
- Weight: 33g (power adaptor not included).
- Compliant with EU certification: CE FCC.
