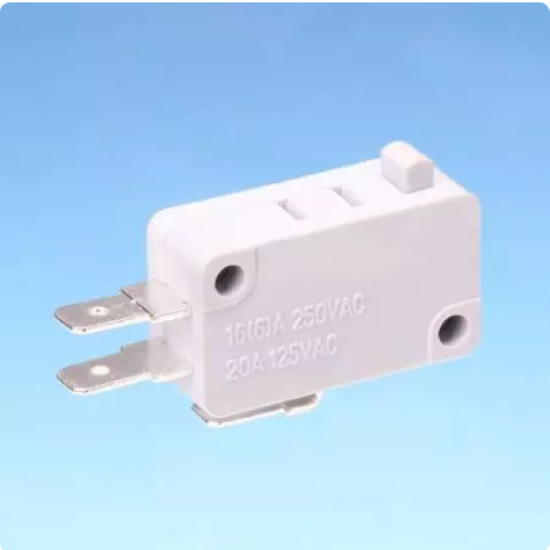

Miniature Micro Switches

MS2

Salecom micro switch is with various actuator types and terminal types. It is suitable for air conditioner, juice maker, time recorder. Customized actuator is available. Circuit: SPST, SPDT

Features

• Rating: 20A 125/250VAC; 16(4)A 125/250VAC
• Electrical life: 10,000 cycles
• Contact Resistance: 50mΩ max. (initial)
• Insulation Resistance: 2MΩ min. between contacts / 7MΩ min. between contact and actuaor

Application

• Small home appliances
• Automotive electronics
• Power tools
