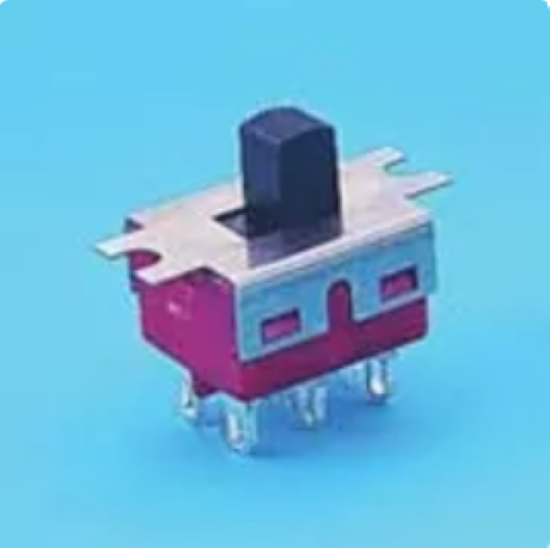

Miniature Slide Switches

T80-S

Salecom slide switch's features are variety of actuators and terminations, panel mount tabs available, epoxy sealed terminals prevent contamination during soldering.

Features

• Contact Rating: 6A120VAC or 28 VDC ; 0.4VA max@ 20VAC OR DC max.
• Life Cycle: 30,000 cycles
• Contact Resistance: 10mΩ max.
• Insulation Resistance: 1,000MΩ min.
• Dielectric Strength: 1,500V RMS @sea level

Application

• Computers and peripherals
• Telecommunication
• Test & Measurement equipment
