• Operating voltage: DC 11-32V.
• 5" digital screen rear view monitor with removable sun visor.
• It features an on-screen menu for all settings: normal/mirror view, reversing image delay, priority of reverse camera, automatic switch on (by reverse gear and or by direction lights).
• Rear view camera suitable for trailer, car, truck, bus, SUV, motor home, farm, boat and CCTV system.

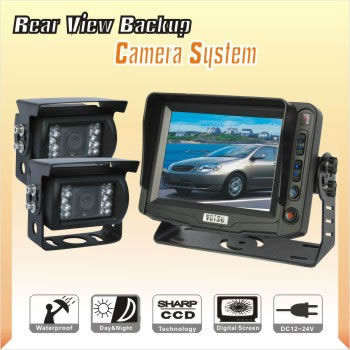

Waterproof color rear view camera (model: DF-4103):

• Image type: 1/3 color Sharp CCD.
• Horizontal resolution: 420 TV lines.
• Effective pixel: NTSC: 510 (H) x 492 (V), PAL: 500 (H) x 582 (V).
• Backup camera usable illumination: 0lux (18pcs LEDs for night vision 10m).
• Free viewing angle: 130°.
• Backup camera waterproof: IP68.
• Shockproof: 10G.
• Video output: 1.0Vp-p75Ω.
• Power supply: DC 12V from reversing monitor.
• Dimensions: 69 (W) x 43 (H) x 38 (D) mm (without mounting).

5 inches digital screen TFT LCD reversing monitor (model: SP-527):

• 5" digital screen color reversing monitor with removable sun visor.
• Display resolution: 640 (H) x 3RGB x 480 (V) dot.
• Color system: PAL/NTSC.
• Setting up the camera image normal or mirror.
• With three video input, set up the priority of reverse camera.
• Setting up the reversing image delay time: 0-30”.
• Wide view angle (CR>10): (up/down): 45/65 (left/right): 65/65.
• Brightness (cd/m²): 300.
• Contrast ratio: 500:1.
• Back-light: single LED.
• Operating temperature: -20℃ to +50℃.
• Storage temperature: -30℃ to +80℃.
• Power supply: DC1 1~32V.
• External dimensions (L x W x T): 150 x 118 x 23mm (without mounting).
• Weight approx: 279g.
• Product accessories: monitor bracket, 15m cable, electrical connecting cable, user manual, full function remote controller.
