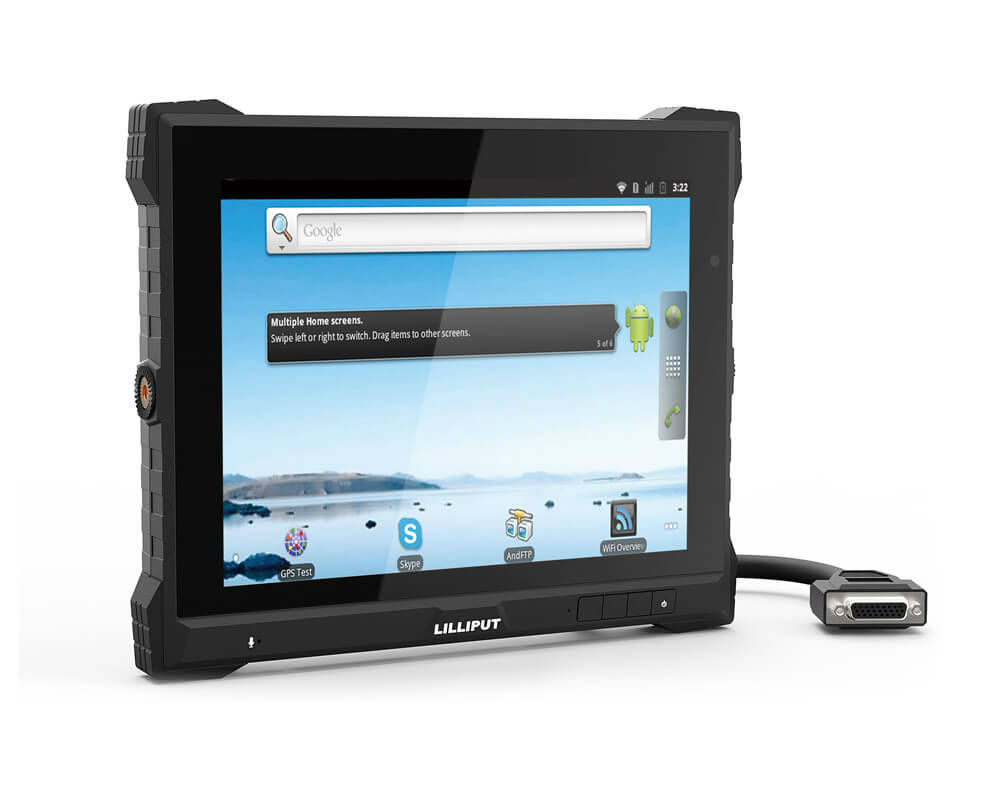

Mobile Data Terminal
Production Lead Time:
7 day(s)
Model No.:
PC-9715
Brand:
LILLIPUT
Colour:
Black
Size:
252 x 211 x 37mm
Package:
Yes
Customised:
Yes
Type:
Embedded Computer
Products Status:
Stock
Description
Contact Supplier
Description
- Rugged industrial design with IP64 rating
- Powerful Freescale iMX.6 Quad core 1GHz solution
- 9.7" 1024x768 IPS screen capacitive touch
- Built-in 7.4V 5000mAh battery
- (optional) RS232, RS485, RS422, Gpio, CAN bus, LAN Gravity sensor, OTG, TF & USB PoE (Power over Ethernet) Gbite Ethernet(optional) 2G/3G/4G/Wi-Fi/Bluetooth/GPS/camera(optional)
- Display Screen 9.7" IPS
- Resolution 1024×768 Touch Panel Capacitive Brightness 350cd/m²
- Aspect Ratio 4:3
- Contrast 900:1
- Viewing Angle 178°/ 178° (H/V)
- OS Android 4.3.1 / Linux Debian 7.0 / WinCE 7.0 CPU Freescale iMX.6 Quad core 1.0GHz GPU 3D 200Mtri/s 1000Mpxl/s, OpenGL ES 3.0 & Halti, CL EP
- Media Audio: MP3, MP4, WMA, WAV
- Video Decode 1080p60 H.264
- Video Encode 1080p30 H.264 BP/ Dual 720p Core
- ARM Cortex-A9 Memory ROM: 8GB Flash, RAM: DDR3-1066 (533MHz) 1GBytes, up to 2GBytes
- Expansion Storage Micro SD card slot, USB Device 2.0, USB host 2.0 LAN
- LAN Ethernet Interface RS232x4 / RS232x3, RS485x1 / RS232x2, RS422x1, RS485x1 (optional RS485 / RS422 interface)
- GPIO input x 4, GPIO output x 6
- Audio Ear phone jack x 1, Microphone jack (optional)
- Optional Extensions 3G, Wi-Fi & Bluetooth, Camera, GPS, ACC, PoE (Power over Ethernet), Power Consumption 9W (Normal mode), 24W (Charging mode)
- Working Temperature -20°C ~60ºC
- Storage Temperature -30°C ~ 70ºC
- Power Supply DC 9-36V
- Battery Built-in 5000mAh (optional)
- Dimension (LWD) 252 x 211 x 37mm
- Weight 1340g
