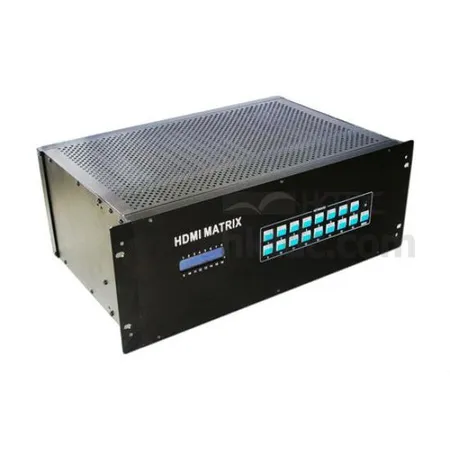

Modular HDMI Matrix 8 x 8 3D

Model No.:

AM-M8

Brand:

Amtune

Colour:

Black

Port:

Shenzhen, Hong Kong

Type of Payment:

T/T, L/C

Minimum Order Quantity:

10 set(s)

Description

Contact Supplier

Plug-industrial chassis, independent input and output cards, one card 2-way, flexible and reliable.
Off-site protection.
Dual power input, mutual backup, you can plug live, work and reliable.
With RS232 interface, the remote computer operation.
Auto EDID, the EDID information for all input automatically synchronized to first output display unit of the EDID.
LED indicates the input signal is lost.
Compatible HDMI1.3, supporting HDCP.
Support DeepColor highest 36bit.
Front panel LCD display, independent key operation.
Support infrared remote control.
HDMI input & output compatible HDMI1.3.
≤8 of inputs HDMI.
≤8 of outputs HDMI.
HDMI pixel rates clock frequency beyond 165Mpix/second.
TMDS output clock up to 250MHz.
Supports 24, 30 & 36‐bit pixel video modes.
Supports 4:4:4 and 4:2:2 data input formats.
Output jitter (single channel input only) (peak-to-peak): <36ps.
Crosstalk jitter with 1 channel (peak-to-peak): <37.2ps.
Output return loss (40MHz to 2.5GHz): <15dB.
Input return loss (40MHz to 2.5GHz): <15dB.
Single signal bandwidth: ＜3.0GHz.
HDMI interface type: A 19-pin HDMI Interface.
HDMI input line length: ≤10 meter.
HDMI output cable length: ≤10 meter.
RS232 control line length: ≤15 meter.
Infrared control distance: ≤5 meter.
Power consumption: <60W.
Humidity: <95% RH.
Operating temperature: 0℃-45℃.
MTBF: >40000 hours.
Communication interface: RS-232, 9600bps, 8, n, 1.
Dimensions: 483 (width) x 350 (deep) x 180 (high) mm (4U).
Machine weight: 10kg.
Power input: AC 220V/50Hz ± 10%.
