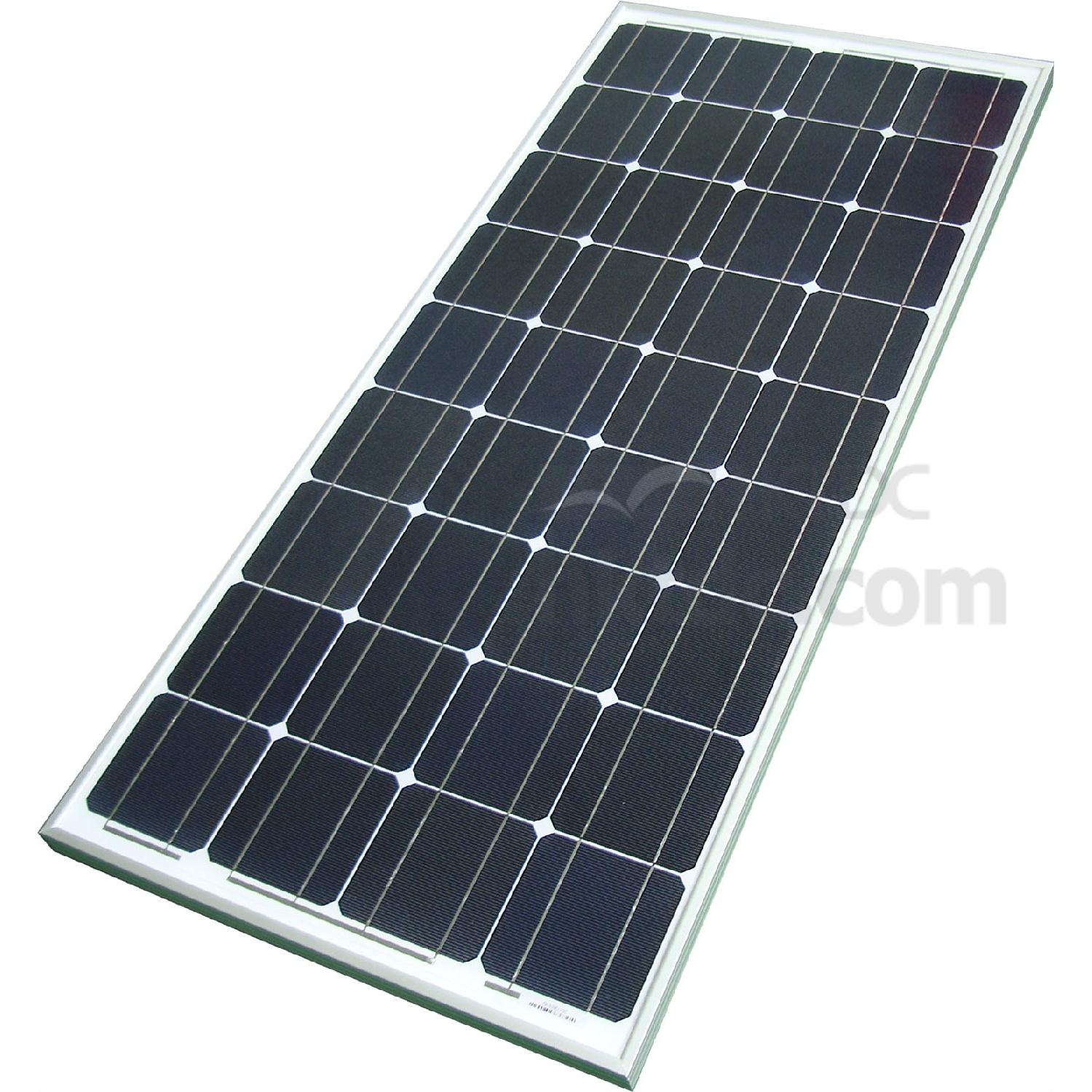

Solar panel features:
1.Grade A solar cell with Positive tolerance power range.
2. Monocrystalline or polycrystalline solar cells, range from 5Wp to 300Wp.
3. High efficiency & high stability.
4.Advanced EVA encapsulation system with multi-layer back sheets to better product modules.
5.High frame resistant & double-sided fluorine TPT.
6.3.20mm tempered front glass withstands high wind-pressure and snow load.
7.Anodized aluminum alloy frame.
8.Back: TPT
9.3 or 6 bypass diodes , 90mm 4m2 cable , MC4 connectors & waterproof junction box.
10.Preeminent aesthetic appearance and easy installation.


Solar panel advantages:
1.High brightness, energy saving, environmental-friendly.
2.Advanced technology, exquisite workmanship, and proprietary design.
3.Easy installation, free maintenance.
4.Strict quality control meeting with the highest international standards.


Solar panel specifications:

• Max. power(Pmax): 100w
• Optimum operating voltage(Vmp): 18.5V
• Optimum operating current(Imp): 5.41A
• Open-circuit voltage(Voc): 22.4V
• Short-circuit current(Isc): 5.9A
• Size of module: 1200*554*30mm
• Weight: 8.2KGS
• Cell efficiency(%): >18%
• Output tolerance(%): ±3%
• Frame: anodized aluminum alloy
• Front glass : 3.20 tempered glass.
• Operating temperature: -40° C to +85° C
