Monopole and Dipole Antenna
Description
Contact Supplier
Description

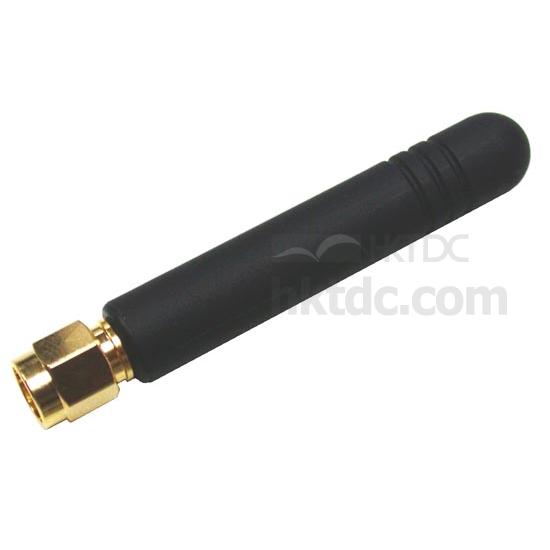

- This series dipole “Rubber Duck” monopole and dipole antenna provides broad coverage and different gain options.
- It is designed by a coaxial sleeve or steel/copper wire with an omni-directional radiation pattern.
- The series antenna are ideally suited for wireless LAN, AP wireless video, GSM, RFID, DVB-T, WiFi, WiMAX, ISM and Hotspot applications.
- Frequency – single/dual/tri band/quad band.
- 400M~870M Hz, 900M/1800M/1900M Hz and 2.4G/5G Hz systems.
- Impedance – normal 50 Ohm/75 Ohm.
- Polarization – linear vertical/omni-direction pattern.
- Gain – 2~10dBi.
- Radiator – copper wire, spring, steel wire.
- Connector – TNC, SMA, N, MMCX, IPEX (RP Type), I-Pex.
- Working temperature: 30℃~+60℃.
- D-90℃ adjustable swivel and water proof design.
- RoHS – compliant.
