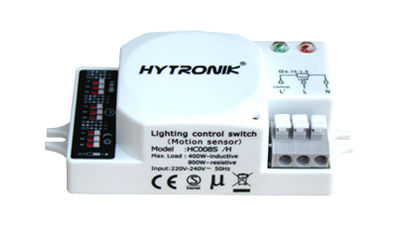

Motion Sensor Detector

Model No.:

HC008S

Brand:

HYTRONIK

Colour:

White

Port:

Shenzhen, China

Type of Payment:

T/T, L/C

Description

Contact Supplier

This economy version microwave motion sensor detector functions as well as the standard version microwave motion sensor detector. It can be used to switch on and switch off your halogen transformer non-dimmable fluorescent ballast or non-dimmable LED drivers. This detector is the simplified economy model to the standard version and it is designed for built-in compact lighting fixtures for indoor application.

Exactly function as the standard version microwave motion sensor detector.
Simplified economy model.
Designed for built-in compact lighting fixtures for indoor application.
Operating voltage: HC008S—220-240V; HC108S—120V.
Switched power: HC008S—400W; HC108S—200W.
Standby power: 0.6W (standby), 1.2W (operation).
Detection area: 10/30/50/75/100%, can be customized.
Hold time: 5s/30s/180s/300s/15min/25min, can be customized.
Daylight threshold: 2-500 lux, daylight/twilight/darkness, can be customized.
Sensor principle: microwave motion detector.
Microwave frequency: 5.8GHz +/-75MHz.
Microwave power: <1mW.
Detection range: max. (diameter, height) 8m, 5m.
Detection angle: 30—150 degree.
Motion detection: 1-20km/h (<3m mounting height); 1-200km/h (>5m height).
Mounting height: 0.5~5m.
Operating temperature: -10~60 degree.
IP rating: IP 20 (mounting inside a lamp); IP65 (mounting in Hytronik special box).
