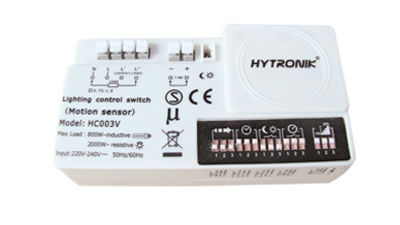

Motion Sensor Detector

Model No.:

HC003V

Brand:

HYTRONIK

Colour:

White

Port:

Shenzhen, China

Type of Payment:

T/T, L/C

Description

Contact Supplier

With both 1-10V output signal and 220-240V signal, this advanced version microwave motion sensor detector can switch on or off any lighting applications and dim fluorescent lamps, HID lamps as well as LED lamps. It uses microwave motion detection and has a maximum detection range of 8m diameter and 10m height. This sensor detector is the ideal choice for your lighting applications.

1-10V output signal and 220-240V signal.
Can switch on/off any lighting applications and dim fluorescent lamps, HID lamps as well as LED lamps.
Operating voltage: 220-240V+/-10%; 120-277V+/-10%.
Switched power: HC003V—800W; HC403V—800/1200W.
Standby power: 0.6W (standby), 1.2W (operation).
Detection area: 10/30/50/75/100%, can be customized.
Hold Time: 5s/30s/180s/300s/15min/25min, can be customized.
Daylight threshold: 2-2000 lux, daylight/twilight/darkness, can be customized.
Sensor principle: microwave motion detector.
Microwave frequency: 5.8GHz+/-75MHz.
Microwave power: <1mW.
Detection range: max. (diameter, height) 8m, 10m.
Detection angle: 30—150 degree.
Motion detection: 1-20km/h (<3m mounting height); 1-200km/h (>5m height).
Mounting height: 0.5m - 5m.
Operating temperature: -35~70 degree.
IP rating: IP 20 (mounting inside a lamp); IP65 (mounting in Hytronik special box).
