Multi-function Calibrator

US $109.25 - US $156.75

US $115.00 - US $165.00

Description

Contact Supplier

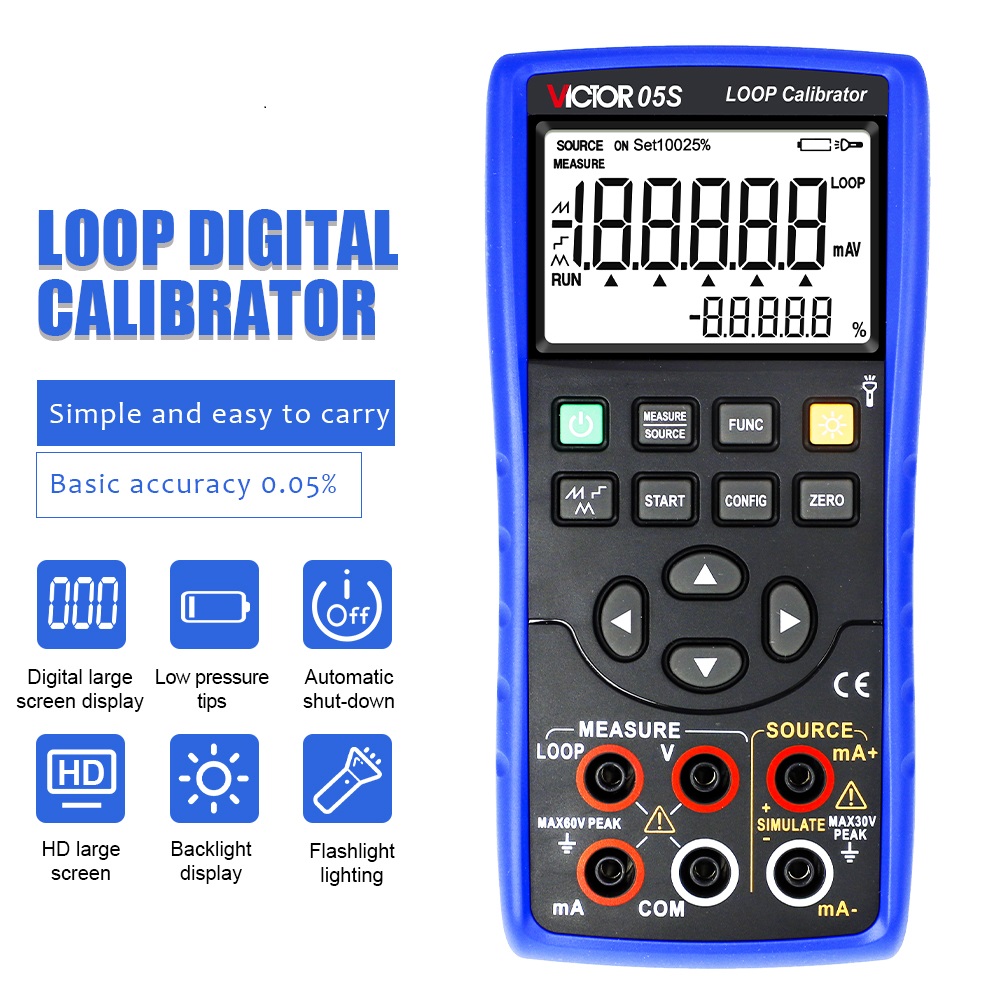

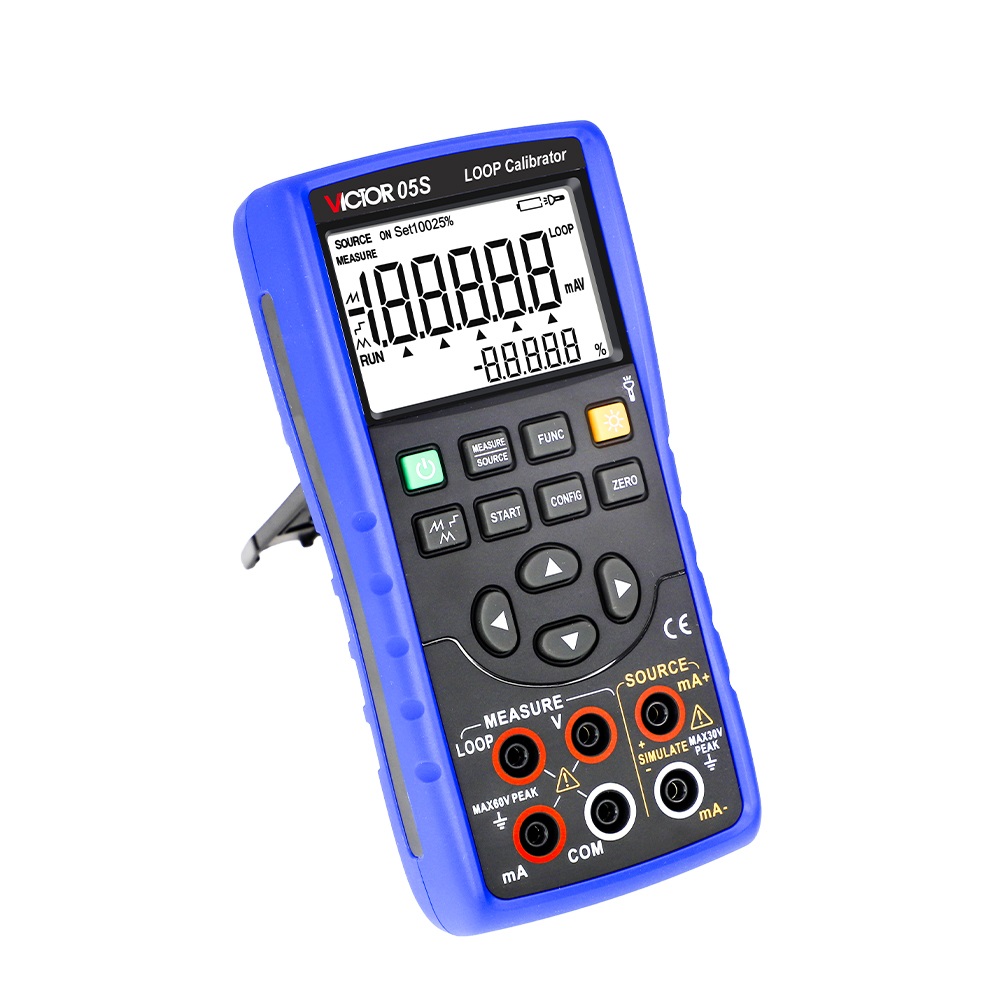

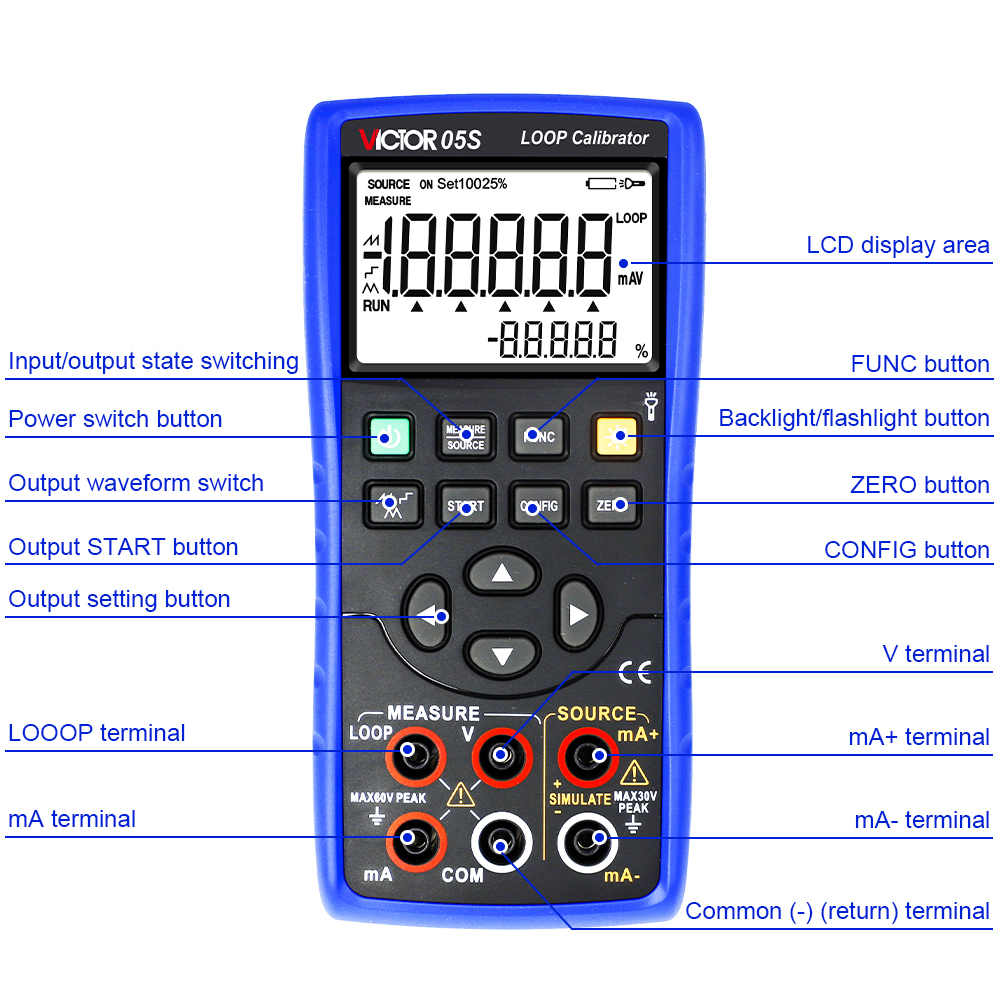

VICTOR 05S Loop Calibrator high precision Voltage Current Simulation transmitter handheld automatic signal generator

VC05S LOOP Calibrator
 * Measurement with basic accuracy of 0.02%, output with basic accuracy of 0.05%. 5 digits display for measured value.
 * Measurements: DC current, DC voltage as well as providing 24V loop voltage and measuring current simultaneously.
 * Analogue output: DC current and simulating transmitter.
 * Providing loop voltage supply of 24V.
 * Current displayed in Am and Am% format.
 * The step, zero and full output provided with a fast operation.
 * Output signal generates a auto ramp current output (4～20mA) at both fast and slow speeds.
 * The step, zero and full output provided with a fast operation.
 * Adjustable output gain.
 * Built-in self-tests with closed-case calibration (no internal calibration adjustment).

General characteristics Power supply: Alkaline battery 1.5V (LR6)*3 The basic accuracy of measurement and output reaches 0.05%, and themeasurement and output are displayed in 5 digits Segment code LCD display with white backlightLED electric torch Double fuse protection MA has a percentage display mode lnternal 24V circuit power supply provided

certified as compliant to IEC1010 provisions(Safety standard issued by International Electro technical Commission)
 * certified as compliant to IEC / ENEN61326-1 EMC standard
 * Certified as compliant to IEC 60068-2-64:2008,IEC 60068-2-32:2008 with respect to vibration.

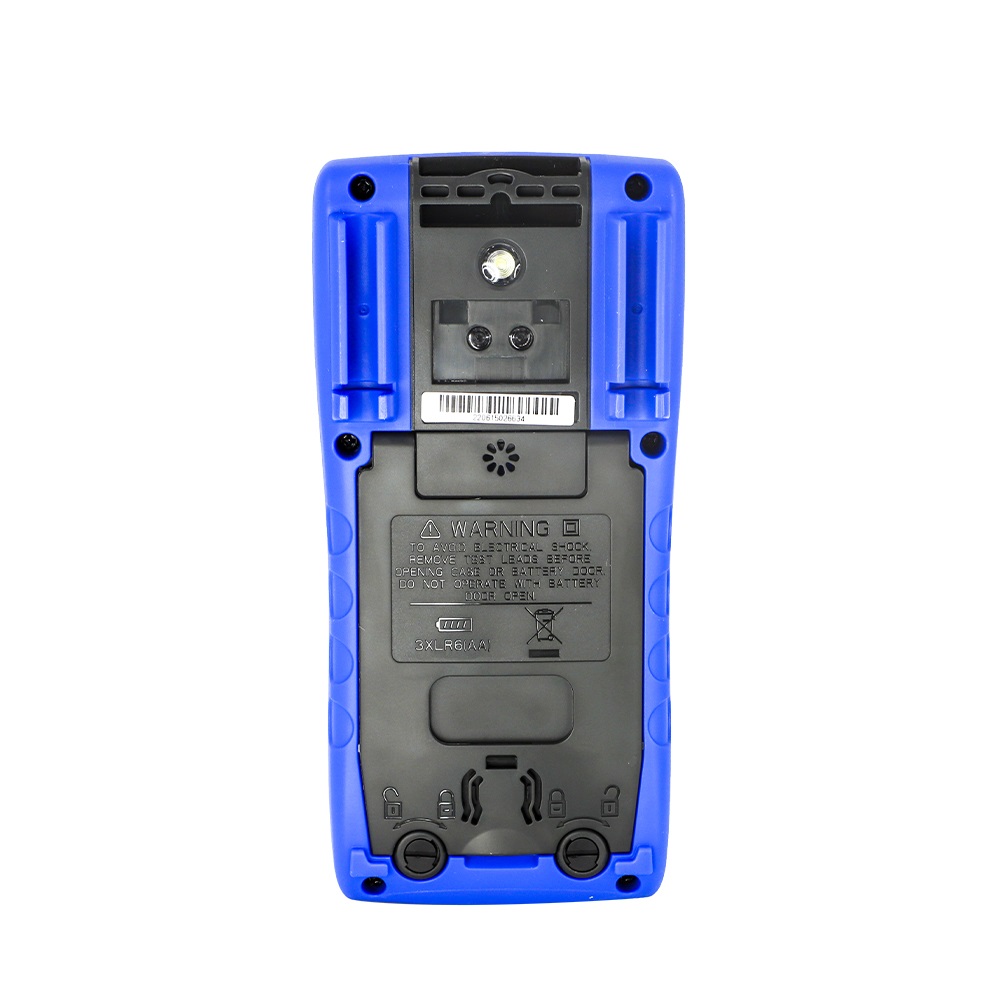

 * 2×1.5AA-size alkaline batteries, automatic power-off.

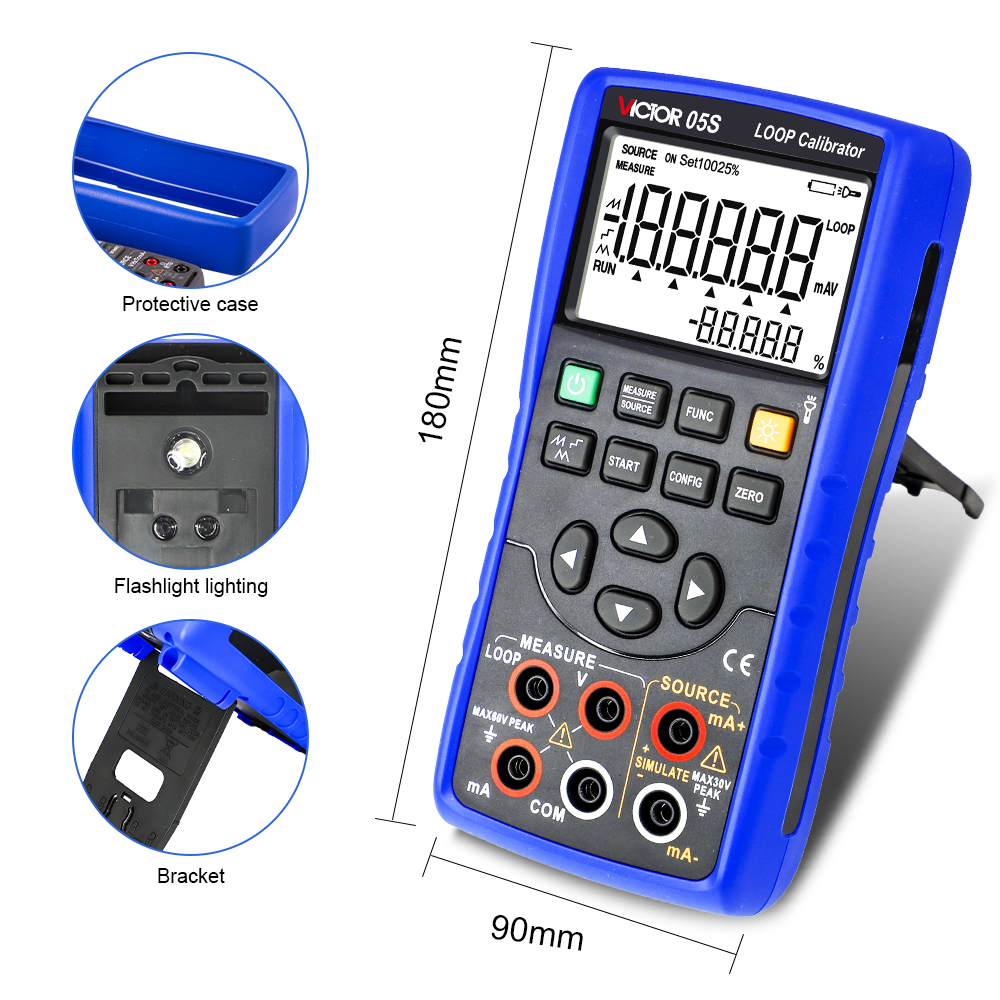

 * Seize and weight: 180×90×47mm, about 500g.

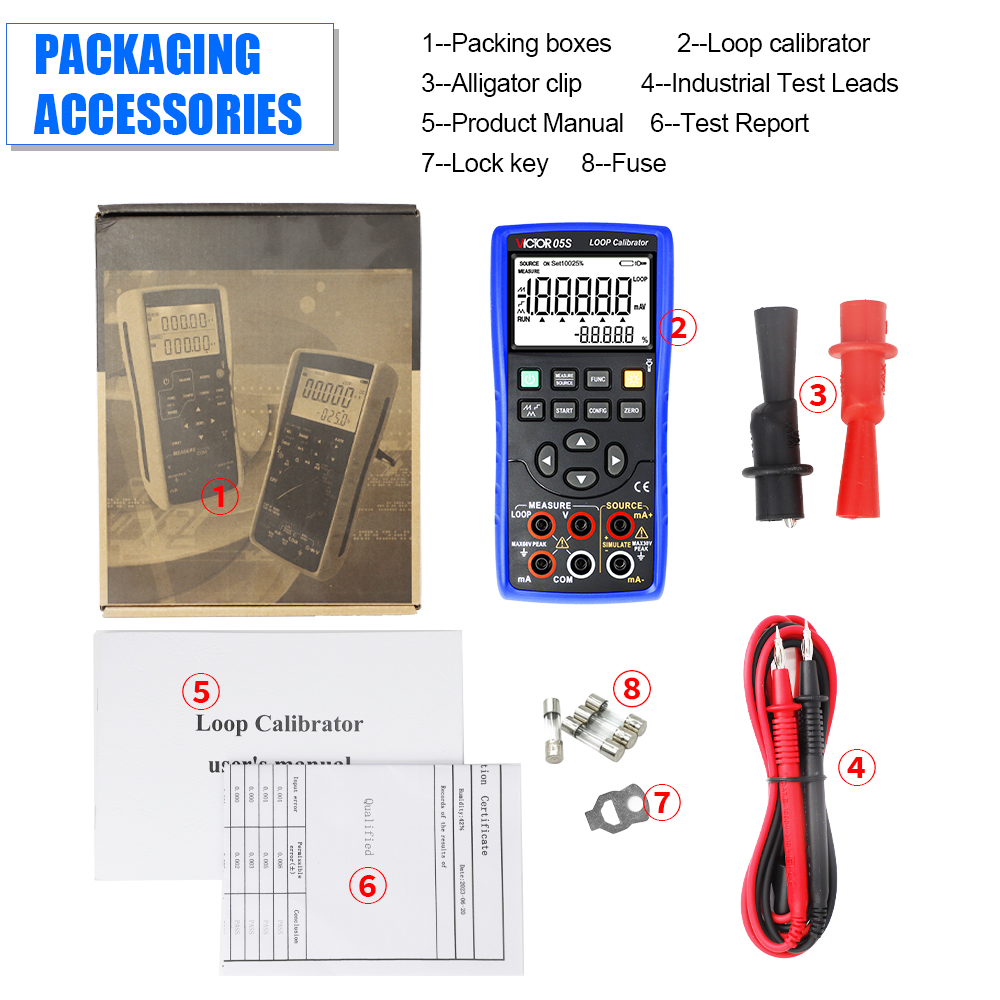

 * Accessories: a pair of test leads.
 * Options: TAS-U-5.
