• Model: ASL120D40H3LED80G
• Diameter: 120.0mm
• Height: 20.00mm
• Angle: 80°
• Material: PMMA Lens + PC Cover
• Transmittance: >90%
• LED Applications: 3030''5630''5050
• Lighting applications: Linear Lighting

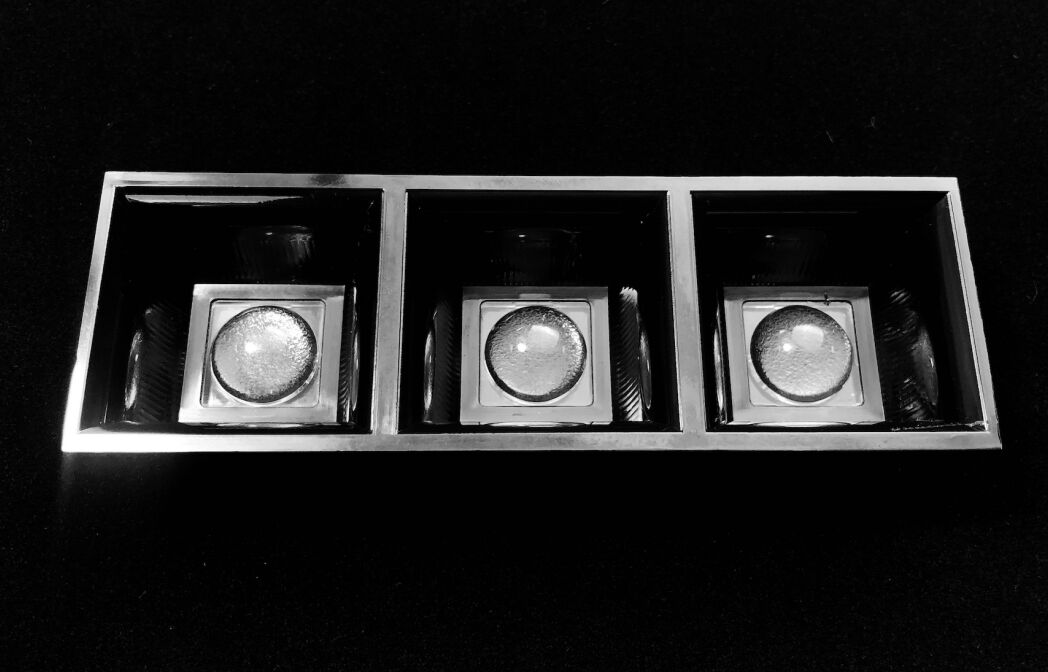

• The 1X3 linear lens array is designed with the optical grill for better UGR and anti-glare control.
• For each optical surface can put multiple LEDs inside to achieve the dimmable lighting solution.

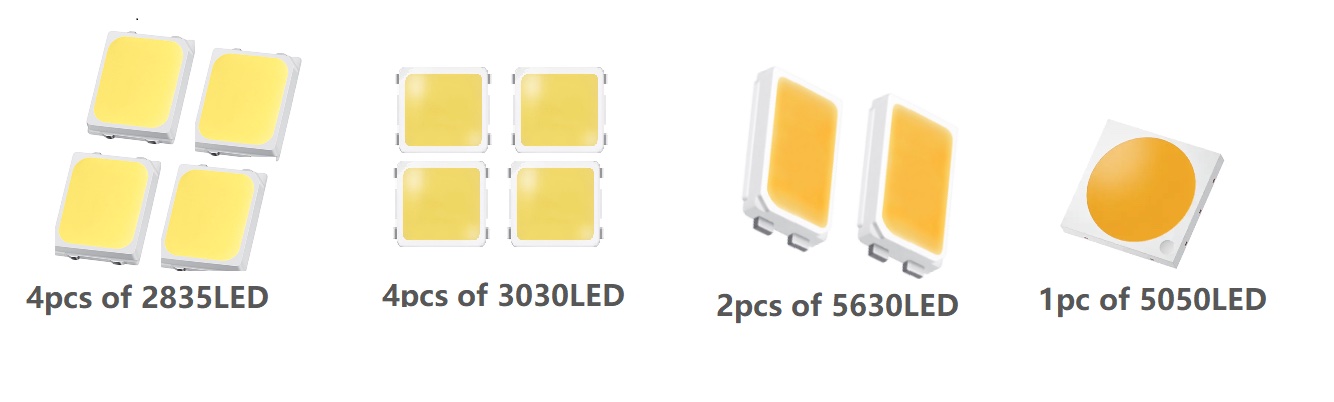

• The optical design is also compatible with different LED sizes from 2835, 3030 LEDs up to 5630, 5050 LEDs.
• The 1x3 linear lens can be recessed mounted, suspend mounted, or surface mounted upon different installing requirements.
• The 1X3 linear lens can fit with 2ft. or 4ft. dimension option with screw-less assembly.
• For more details, please check our website.
