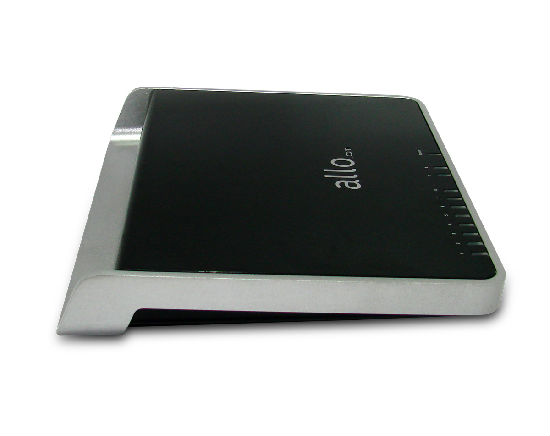

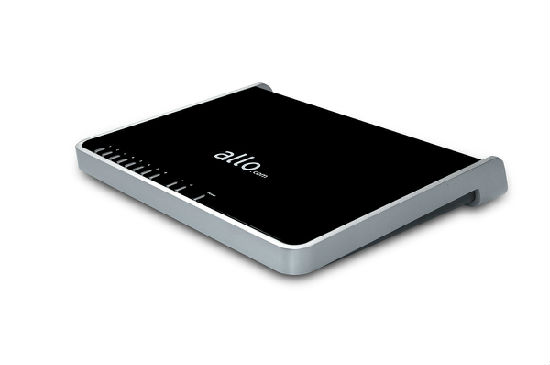

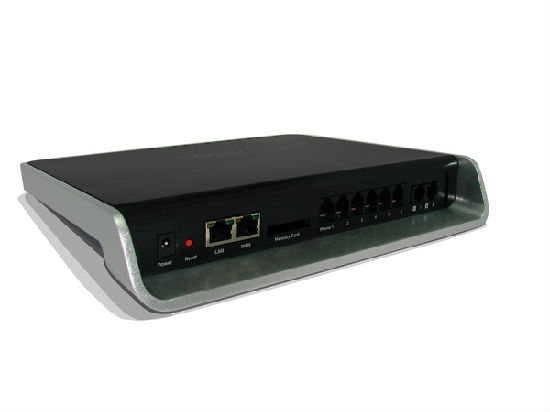

Easy to Install, Easy to use, Easy on the eye. The NANO2 was designed for the SMB, SOHO segment delivering all the advanced features of an Asterisk based PBX controlled by a clear and user friendly GUI. Not all PBX systems belong in a rack or mounted on a wall, reliable appliance that looks good.

Key Features

• 8 user conference
• FAX and VOICEMAIL to Email
• G.722 codec supported
• Callback
• Call Recording (on USB drive, also export to the remote server)
• Call Restriction
• Billing Interface
• CDR
• Music on Hold
• Directory Service
• 8 Ports (2FXO-4FXS-2 FXO/FXS)
• RTC (Real Time Clock & Date)
• Easy to use GUI
• 8 GB USB drive for Music, Voicemail, Recording (expandable)
•
• System Capacity
•
• 2 FXO, 4 FXS, 2 FXO/FXS programmable
• 75 IP extensions, Up to 6 Analog extensions
• 32 IP and 8 TDM Simultaneous calls
•

Auto-Attendant Features

• Configurable IVR
• Queue creation
• Music on hold
• Scheduling for IVR with RTC (Real Time Clock) supporting date/time

Reporting

• CDR ( Caller ID, Time/Date, Incoming, Outgoing, Missed)
• Remote CDR access

Call Features

• Call Forwarding
• Call Transfer
• Call Waiting
• Call Park
• Pick-up
• 3 Way Calling
• Hunt group and more

Messaging

• Up to 100 hours
• Each extension has access to Voice Mail
• Remote Voice Mail access
