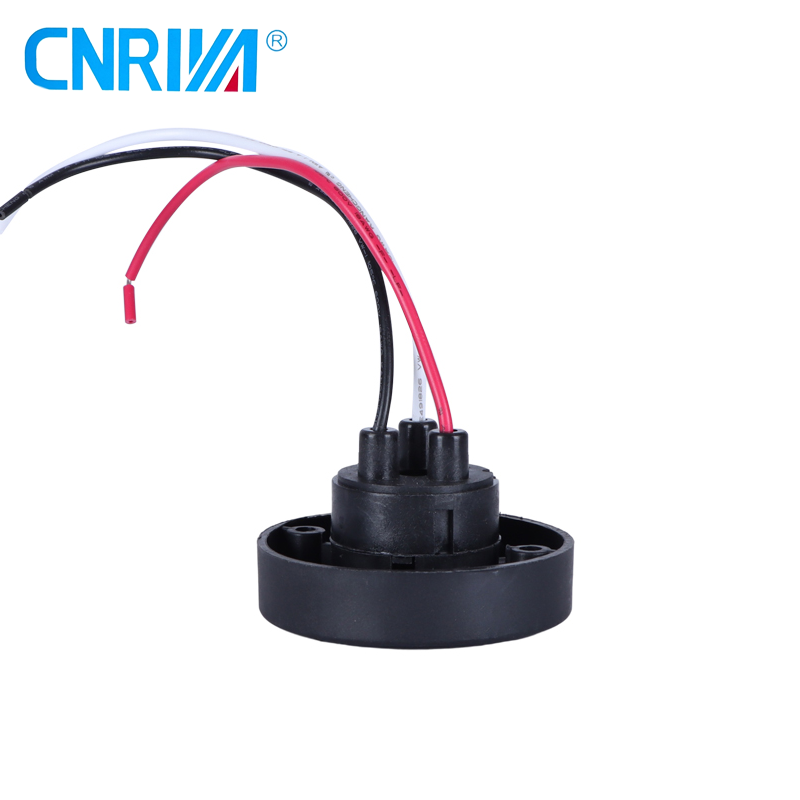

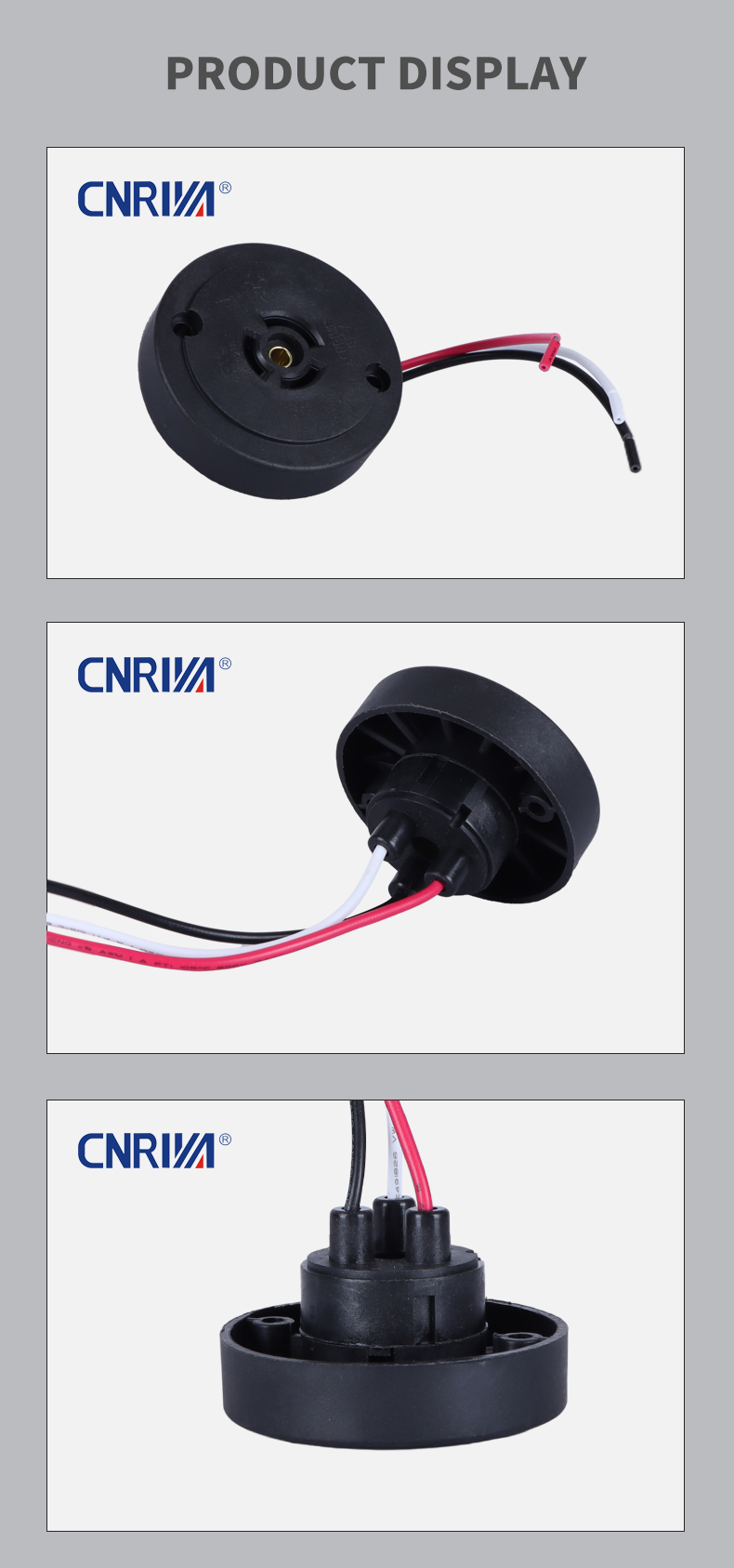

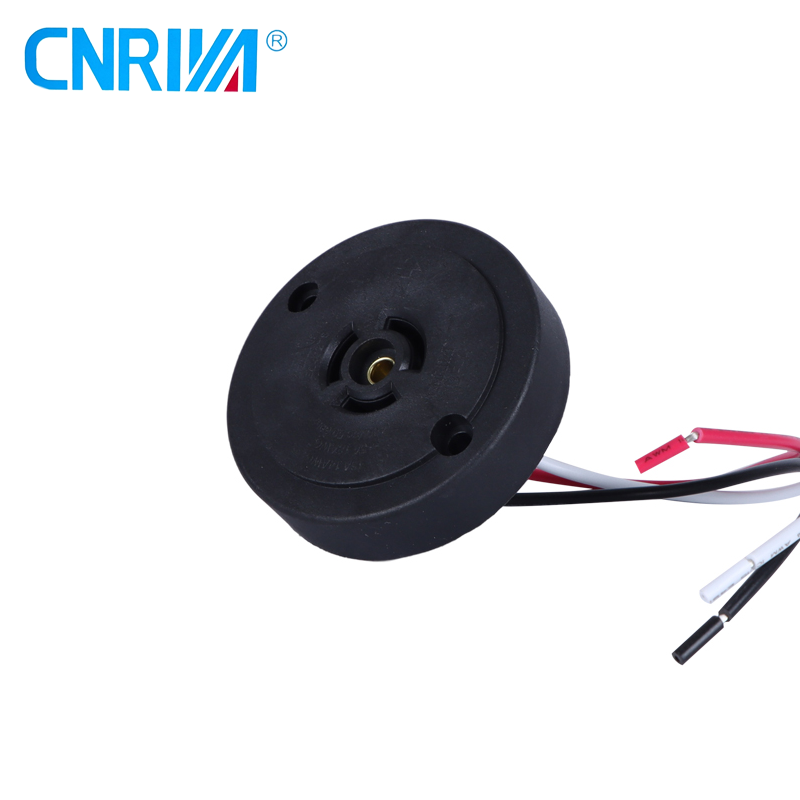

NEMA 3PIN Receptacle for Outdoor Lighting BF-A
Share this page
Production Lead Time:
5-45 day(s)
Shipping Method:
to transport by sea
Brand:
CNRIYA
Model No.:
BF-A
Standard:
ANSI C136.10 & UL773
Voltage Rating:
480V, 50/60Hz
Power Consumption:
<0.8W/ 24H Mean
Rated Load :
1000W/1800VA 15A Max.
Shell:
PBT,V0
Connector :
Copper
Wire:
18AWG or 14AWG 1015 105℃ 16CM or Requirement
Operating Temperature:
-30 to +100℃
Certification:
UL E249278
Warranty:
5 Years
Description
Certification & Document
Contact Supplier
Description

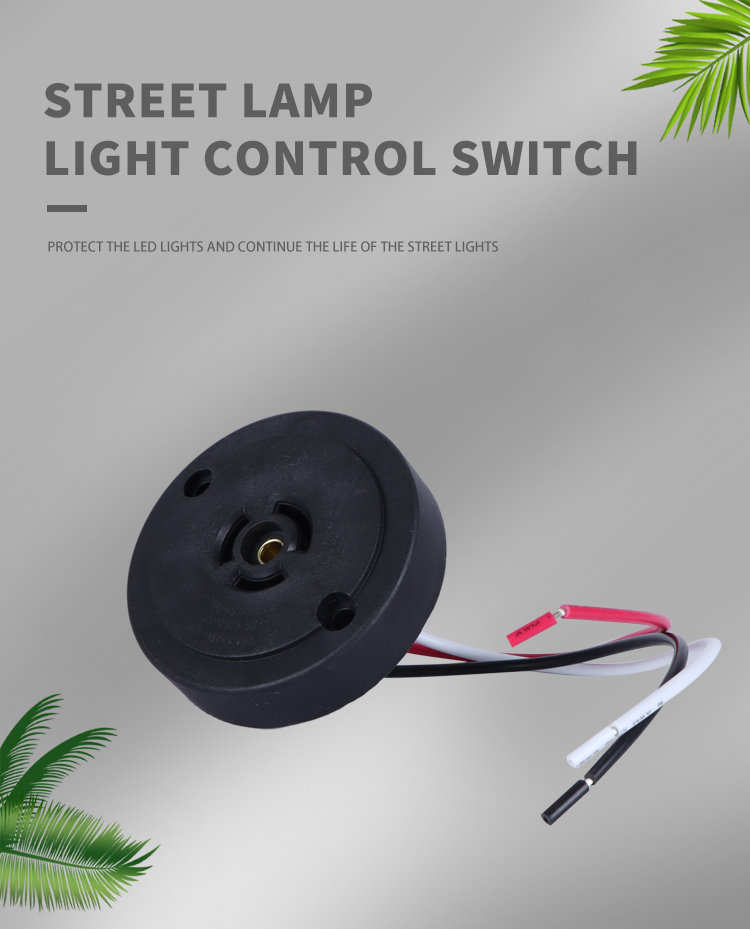

All the BF series dusk to dawn automatic Light Control Nema 3 Pin Photocontrol Receptacle are intended to be pre-mounted onto those lanterns designed to fit an ANSI C136.10-1996 twist-lock photocontrol.

BF-A Nema 3 Pin Photocontrol Receptacle has been recognized by UL to applicable US and Canadian safety standards, under their file E188110,Vol.2.


Certification & Document
Certificate Name
Issued By
Certificate Type
Valid Date
CE
Issued By
lntertek Testing Services Shanghai
Certificate Type
CE
Valid Date
28 Jul 2023
-
28 Jul 2028
UL
Issued By
Underwriters Laboratories Inc
Certificate Type
UL
Valid Date
19 Feb 2016
-
19 Feb 2025
