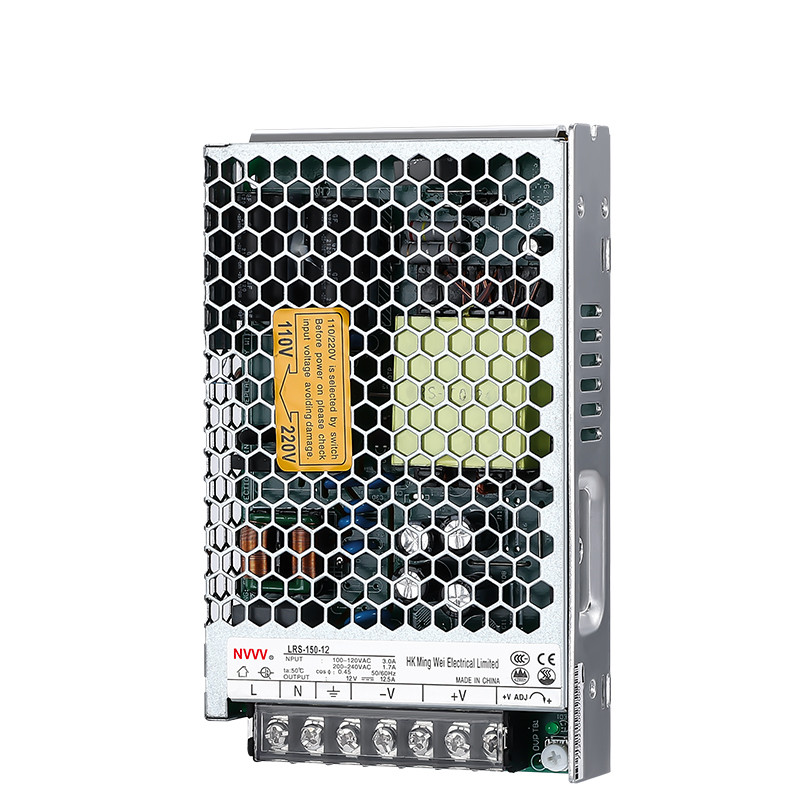

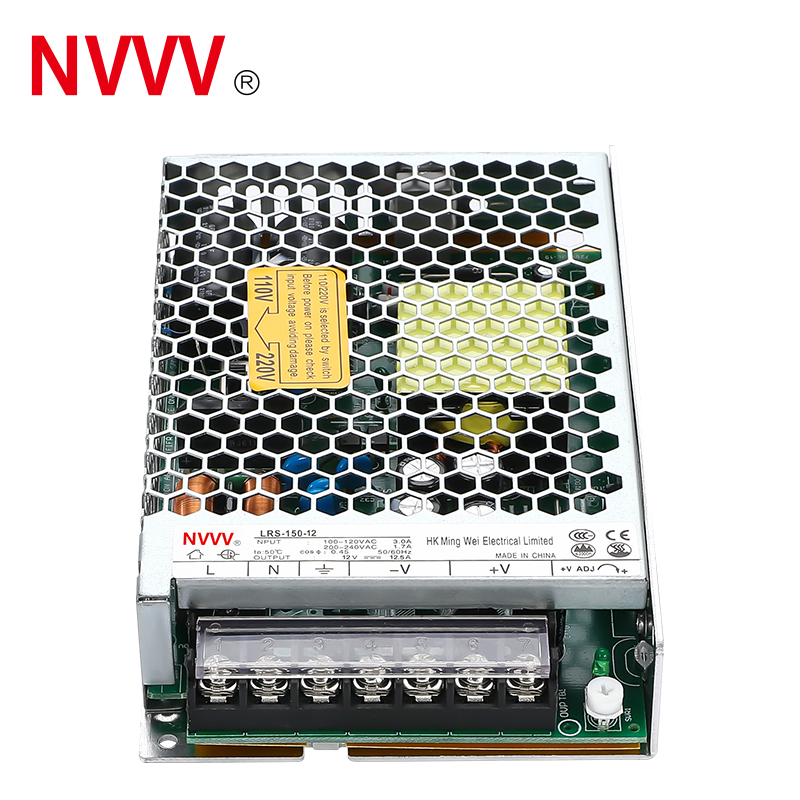

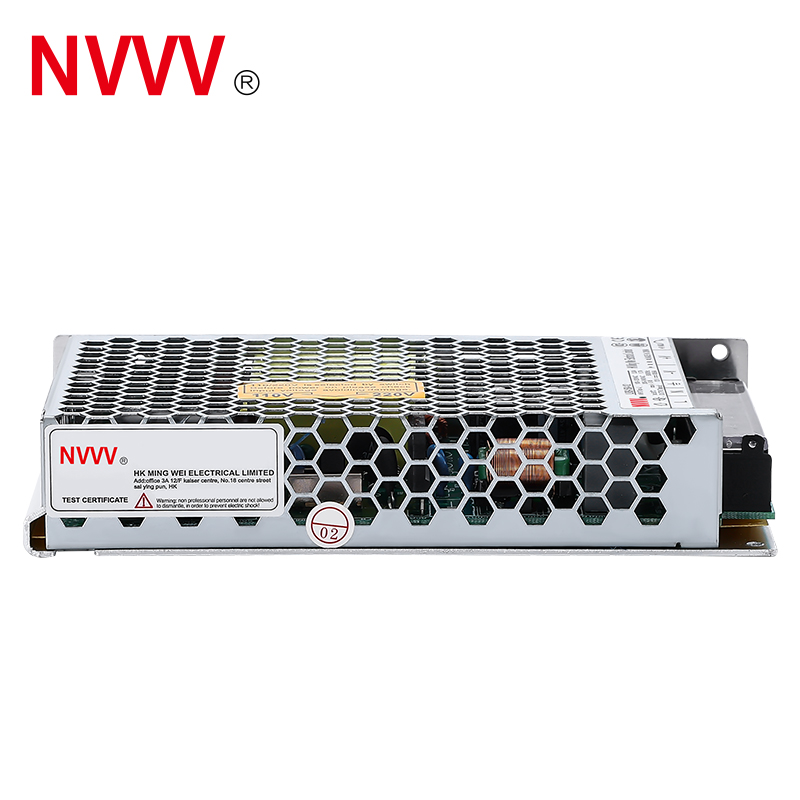

NVVV LRS-150-12 Switching Power Supply 12V 12.5Amp Enclosed Switchable Power Supply 85-264VAC Input

Quantity

Production Lead Time:

1 day(s)

Shipping Method:

Express Delivery

Application:

ac to dc

Brand:

NVVV

Model No.:

LRS-150-12

Size:

159*97*30

Weight:

0.3

Description

Contact Supplier

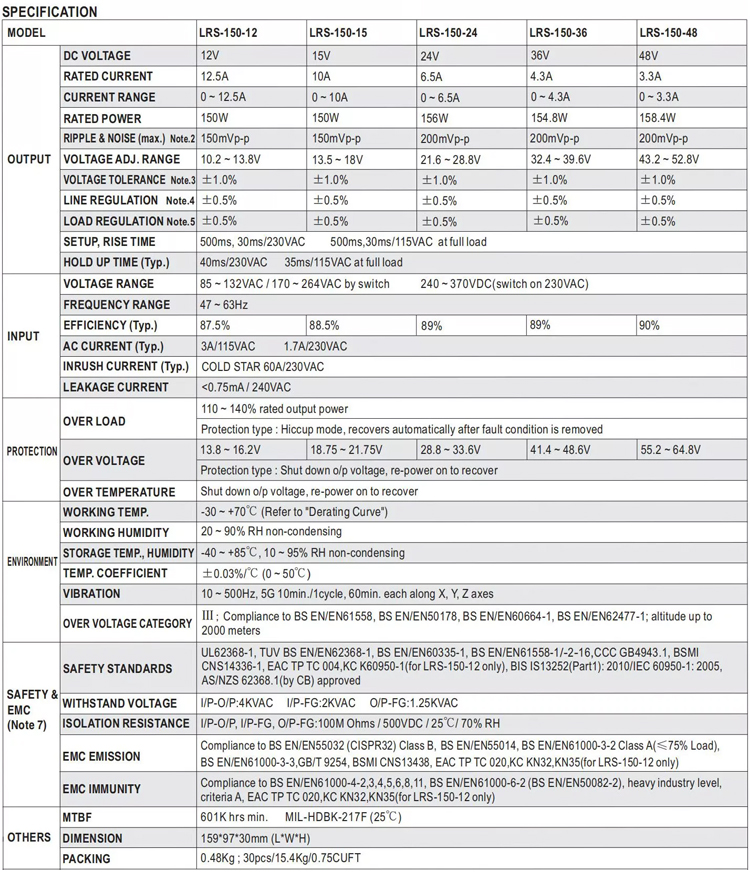

LRS-150 Series 150W Switching Power Supply
Project		Technical index
Output	DC voltage	5V	12V	24V	48V
	Rated current	22A	12.5A	6.5A	3.3A
	Rated power	110W	150W	156W	158.4W
	Ripple and noise ①	100mVp-p	150mVp-p	200mVp-p	200mVp-p
	Ripple and noise	±10%
	Voltage accuracy	±2.0%	±1.0%	±1.0%	±1.0%
	Linear adjustment rate	±0.5%	±0.5%	±0.5%	±0.5%
	Load adjustment rate	±1.0%	±0.5%	±0.5%	±0.5%
	Starting and rising time	500ms、30ms/230VAC 500ms、30ms/115VAC(full load)
	Retention time	40ms/230VAC 35ms/115VAC(full load)
Input	Voltage range / frequency	85-132vac / 170-264VAC selected by switch / 240-370vdc 47Hz ～ 63Hz
	Efficiency (typical) ②	85%	87.50%	89%	90%
	Working current	3A/115VAC 1.7A/230VAC
	Impulse current	Cold start: 60A / 230VAC
	Leakage current	＜1mA 240VACTime

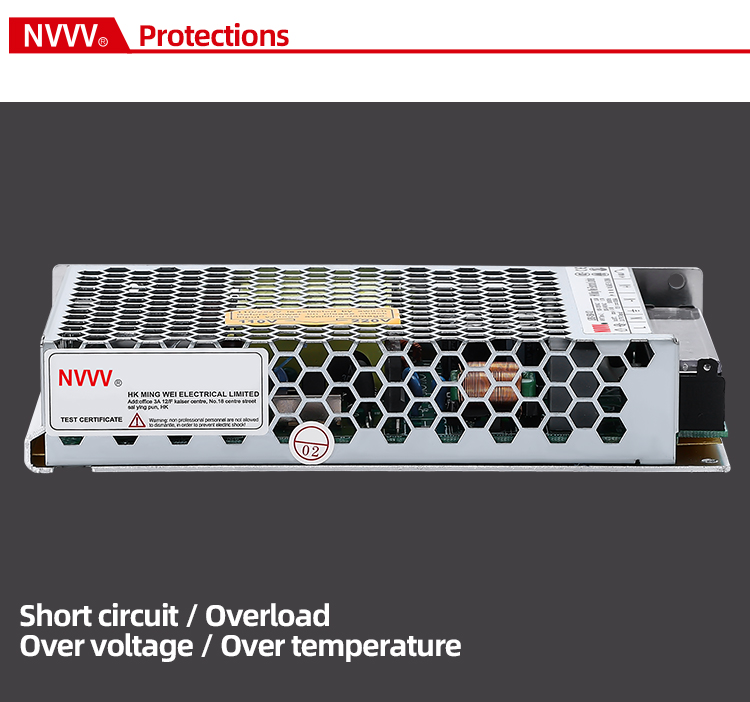

Protect	overload protection	110%-130% Protection type: burping mode, automatic return to normal after removing abnormal conditions
	Overvoltage protection	115%-145% Protection type: close the output, restart and automatically return to normal
	Over temperature protection	≥90℃ Protection type：Burp mode, remove the abnormal condition and automatically return to normal
Function	Working temperature and humidity	-30℃～+70℃；20%～90RH
	Storage temperature and humidity	-40℃～+85℃；10%～95RH
Safety regulations	Withstand voltage	Input output: 4kvac input shell: 2kvac output shell: 1.25kvac for 1 minute
	Insulation impedance	Input output, input shell, output shell: 500VDC / 100M Ω 25 ℃ 70% RH

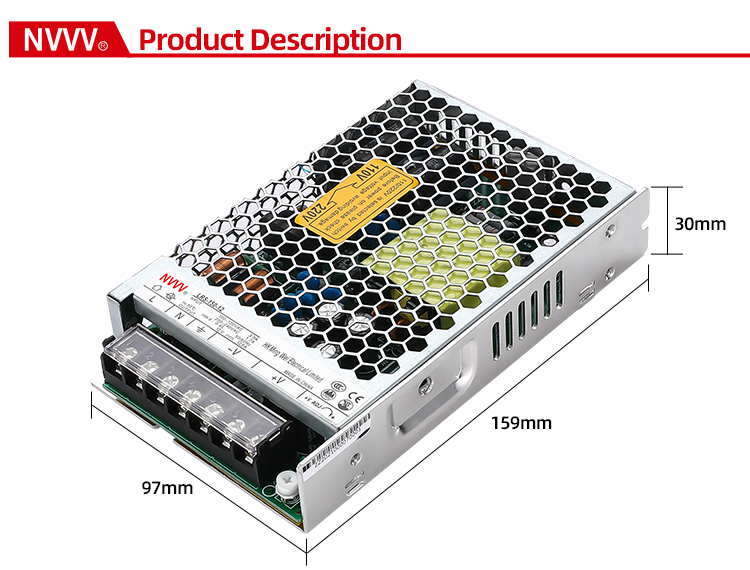

Other	size	1599730mm(LWH)
	Net weight / gross weight	480g/513g
