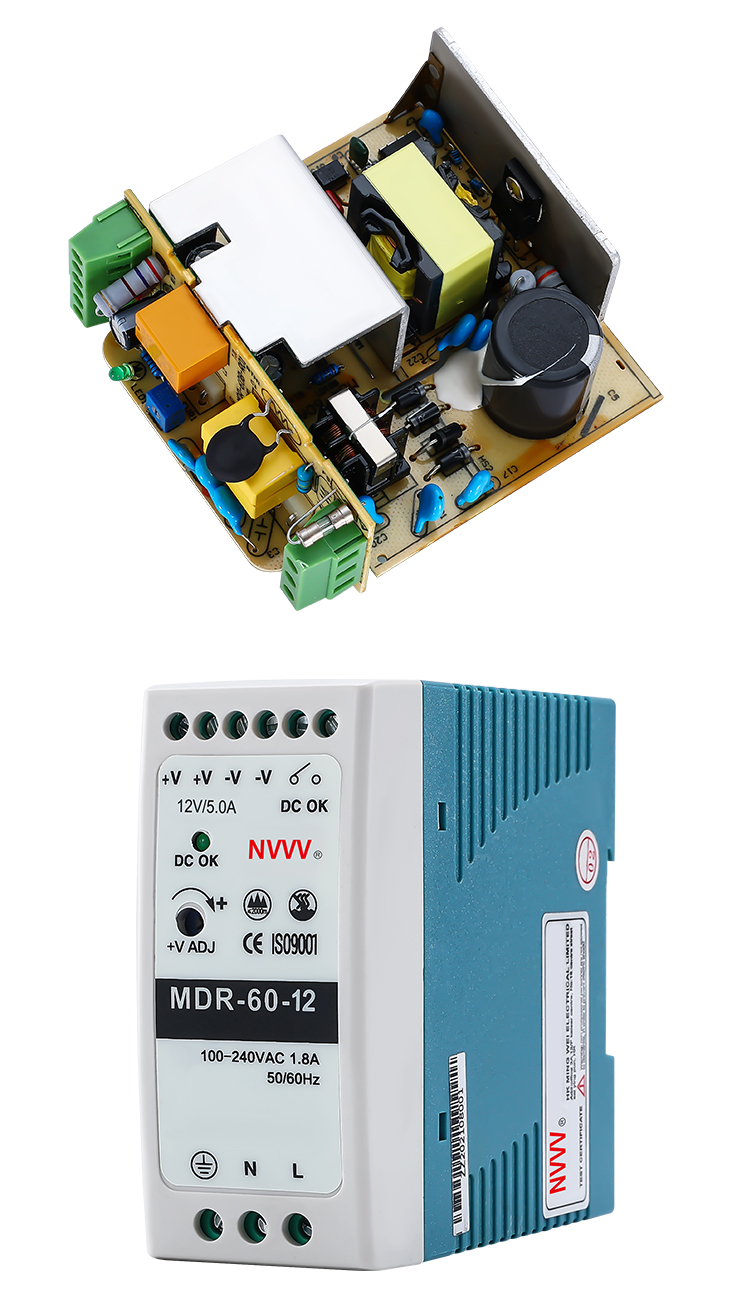

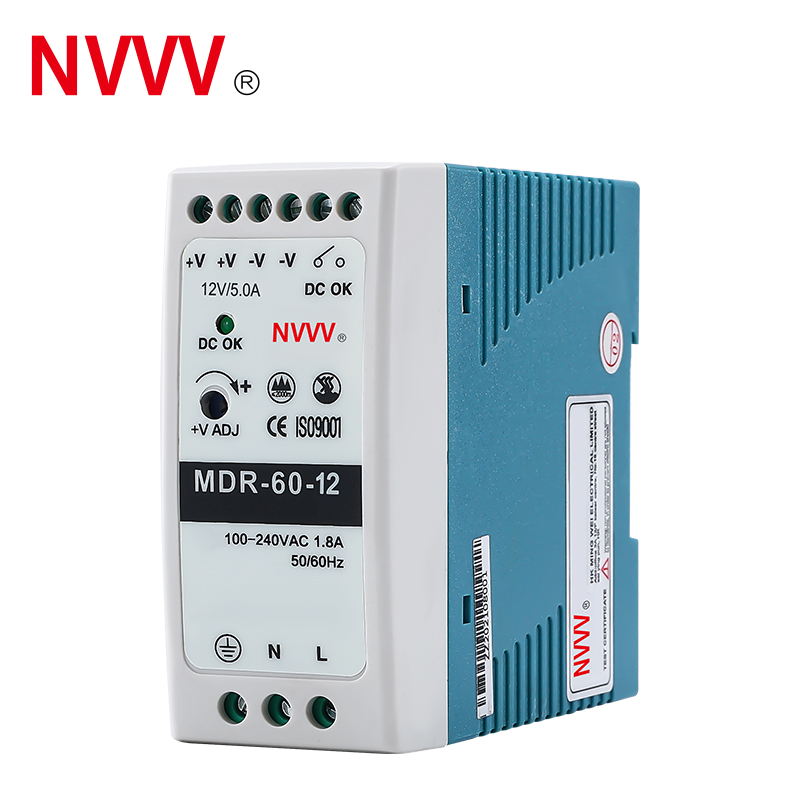

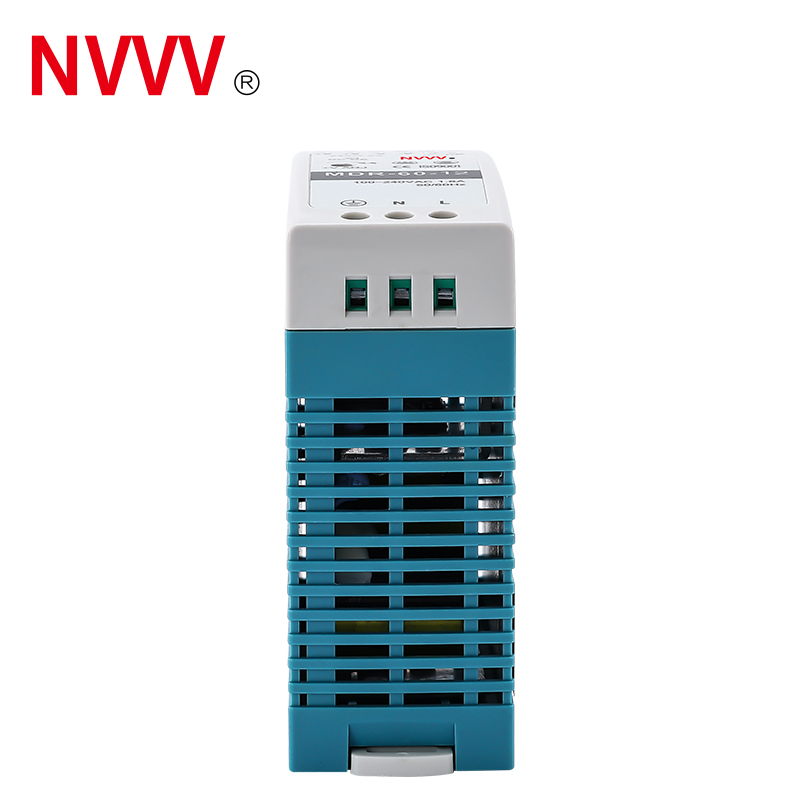

NVVV MDR-60-12 AC to DC DIN-Rail Power Supply 12V 5 Amp 60W, (Input:100-240VAC,Output:12VDC,50/60HZ)

Quantity

Production Lead Time:

1 day(s)

Shipping Method:

Express Delivery

Application:

AC to DC

Brand:

NVVV

Model No.:

MDR-60-12

Size:

40*90*100

Weight:

0.3

Description

Contact Supplier

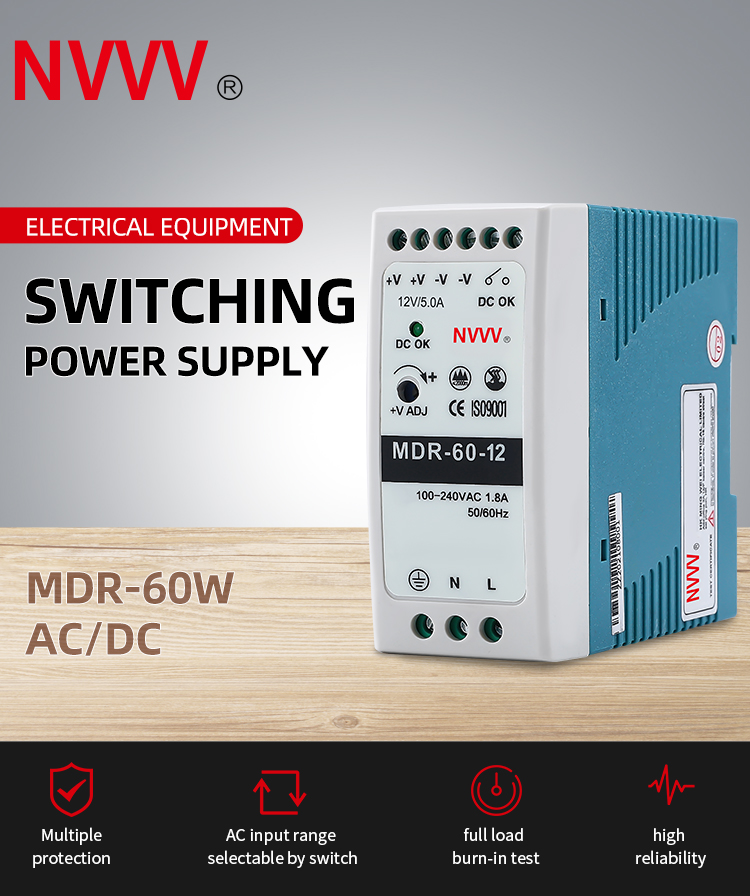

MDR-60 60W rail type switching power supply

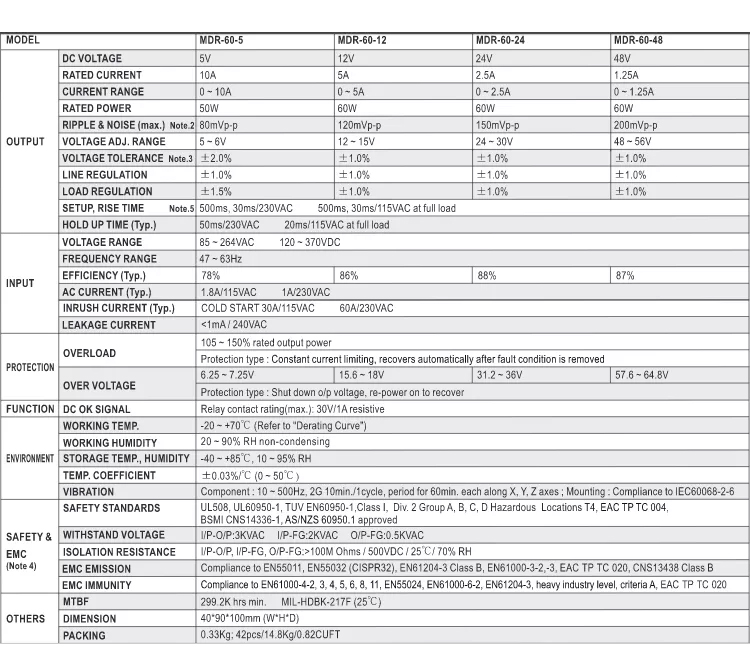

Project		Tehnical index
Output	DC voltage	5V	12V	24V	48V
	Rated current	10A	5A	2.5A	1.25A
	Rated power	50W	60W	60W	60W
	Ripple and noise ①	＜80mV	＜120mV	＜150mV	＜200mV
	Voltage accuracy	±2%	±1%	±1%	±1%
	Output voltage regulation range	±10%
	Load adjustment rate	±1.5%	±1%	±1%	±1%
	Linear adjustment rate	±1%
Input	Voltage range	85-264VAC 47Hz～63Hz (120VDC～370VDC)
	Efficiency(typical) ②	＞78%	＞86%	＞88%	＞87%
	Working current	＜1.8A 110VAC ＜1A 220VAC
	Impulse current	110VAC 35A， 220VAC 70A
	Start，rise hold time	500ms、30ms、25ms ：110VAC 500ms、30ms、120ms ：220VAC

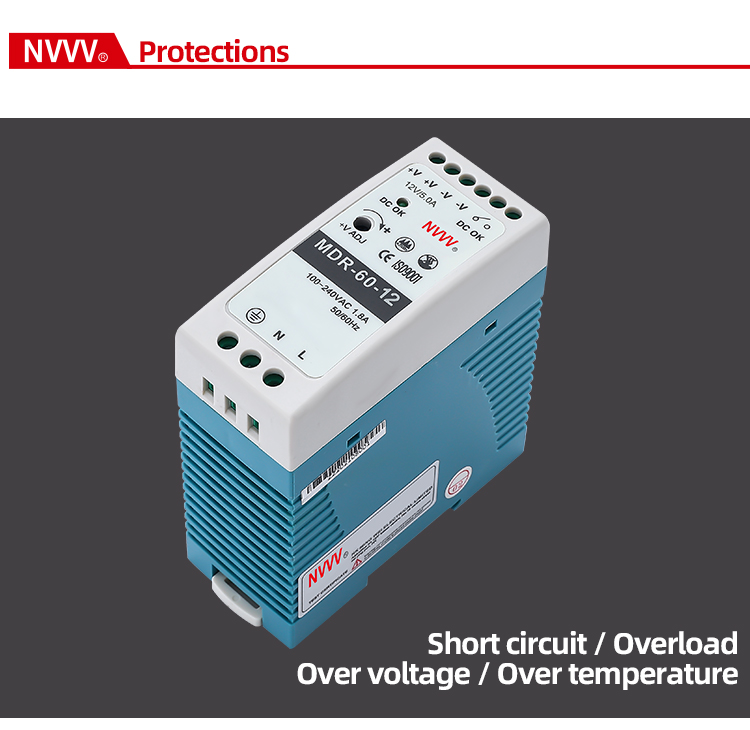

Protect	Overload protection	105%-150% type：protection mode：automatic recovery after belching mode abnormal conditions are removed
	Overload protection	When the output voltage is more than 135%，close the abnormanl output condition and restart it for recovery
Environ mental science	Working current	-20℃～+70℃；20%～90RH
	Storage temperature and humidity	-40℃～+85℃；10%～95RH
Safety regulations	Withstand voltage	Input output:3KVAC input ground：1.5KVAC outpu ground ：0.5KVAC for 1 minute
	Isolation resistance	Input output，input shell，output shell ：500VDC/100MΩ

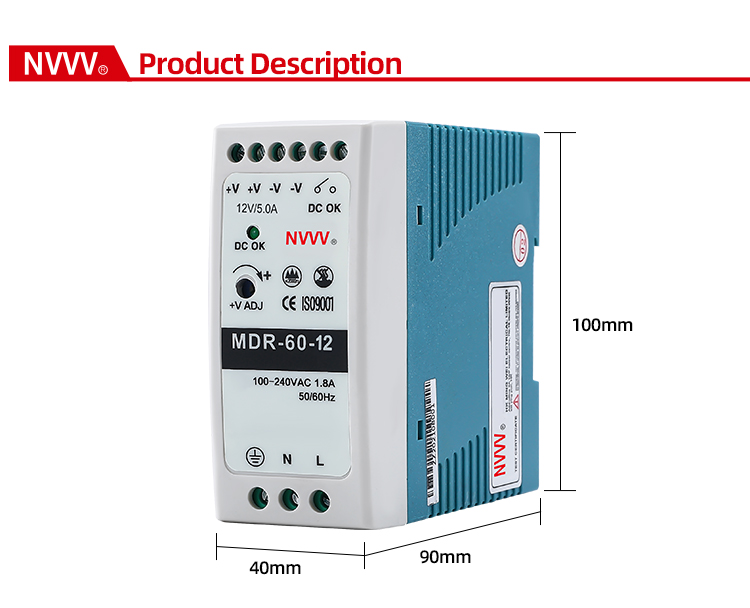

Sther	Size	4090100mm
	Net weight/gross weight	330/350g
Remark	①Ripple and noise measurement method: use a 12" twisted pair cable, and the terminals should be connected in parallel with 0.1uF and 47uF capacitors, and measure at a bandwidth of 20MHz. ②The efficiency is at an input voltage of 230VAC, rated load, and an ambient temperature of 25°C Under test. Accuracy: including setting error, linear adjustment rate and load adjustment rate. Linear adjustment rate test method: from low voltage to high voltage under rated load test load adjustment rate test method: from 0%-100% rated load. The start-up time is measured in the cold start state. Rapid and frequent switching of the machine may increase the start-up time. When the operating altitude is higher than 2000 meters, the operating environment temperature needs to be lowered by 5°C/1000 meters.
