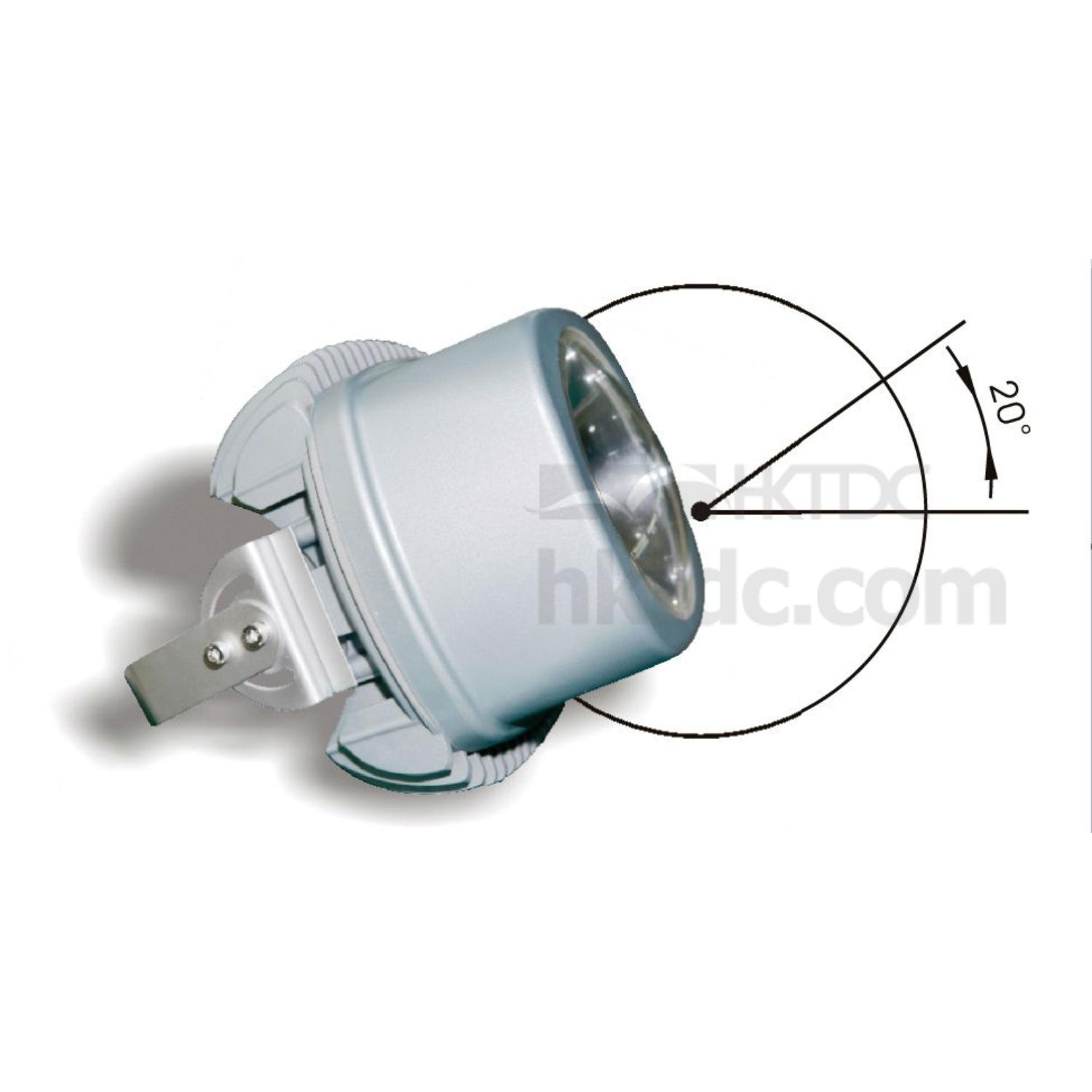

- 20° beam angle for long distance lighting
- Flexible and reliable, a LED light for all professional projects
Features & Characteristic:
*20° beam angle for long distance lighting application
*Patent multi- function design, suitable for all projects
*5-5-10 year warranty
*Top performance LED chips, 110 lm/w system efficacy
*80% lumen maintenance over 50,000hours
*0-10Vdc dimming driver available
*Photocell and motion sensor system available
*Built-in surge protection
*Built-in thermal protection
*Maintenance free
*Mercury free, No UV or IR
*Universal 80-347Vac input without additional adapter
*Instant start and flicker free
*High uniformity and color rendering
Datasheet:
Model : ZHGL-90P ZHGL-210P ZHGL-270P
Power Consumption: 90W 210W 270W
Initial Lumen Flux (6000K): 9900 lm 23100 lm 29700 lm
Replace HID Lamp: 150-250W 400-500W 500-600W 600-1000W
Dimension: 360x358x306mm
Net Weight: 13kg (28.6lbs)
Color Temperature: 2000K - 6000K
Color Rendering: ≥Ra75
Working Life: ≥50000Hrs
Housing Material: Aluminum
Coating : Zinc Rich Paint
IP Class: IP 65 (Upgradeable to IP 67)
Insulation Class: Class I (Upgradeable to Class II)
Working Temperature: -40C ~ 60C / -40F ~ 140F
Working Humidity: 10% ~ 95%
AC Input: 80 ~ 315Vac, (347Vac available on request)
DC Input: 80 ~ 400Vdc, (12Vdc, 24Vdc and other input available on request)
THD: <10%
Power Factor: ≥0.98
Warranty: 3/5 Years
Typical application:
Street | Bridge | Architecture | Warehouse | Stadium | Tunnel | Garden | Parking | Billboard | Plaza | Show Room | Factory |
Shopping Mall | Petrol Station | Conference Centers | Cold Storage | Floodlighting
