Narrow Frame Panel Series
US $25.00 - US $65.00
Production Lead Time:
30 day(s)
Shipping Method:
by sea
Model No.:
DWNUGR606036
Input Voltage:
AC200-240V, 50/60HZ
Power:
36W
LED Source:
SMD2835
Color Temp:
3000K/4000K/5700K
CRI:
Ra>80
Power Factor:
>0.9
IP Rate:
IP40
Optional:
0-10V dimming, Dali dimming, or traic dimming
MOQ:
300PCS
Certificate:
CE, RoHS, CB,SAA
Warranty Time:
5 Years
Payment Terms:
T/T
Supply Ability:
7000pcs per month
Description
Contact Supplier
Description

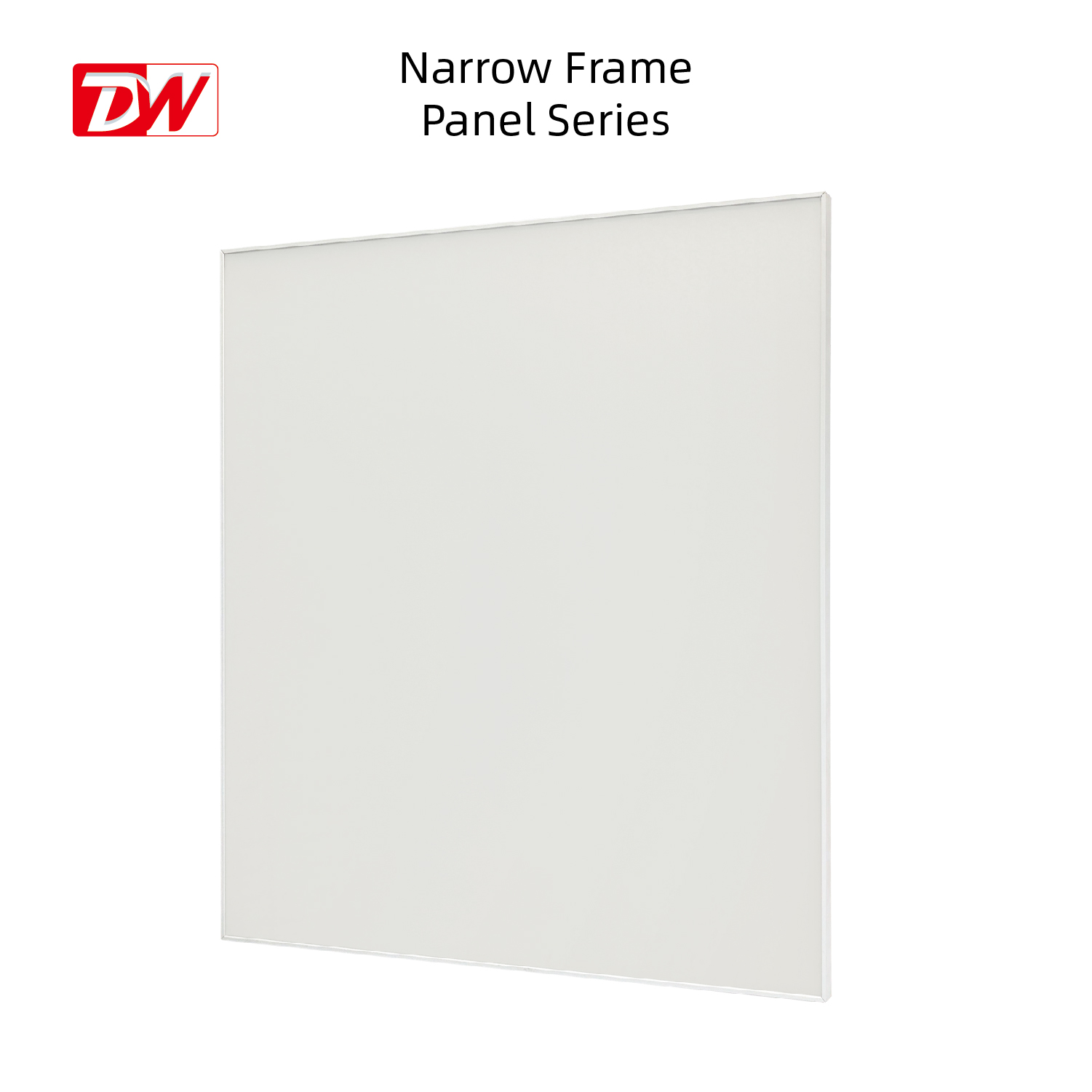

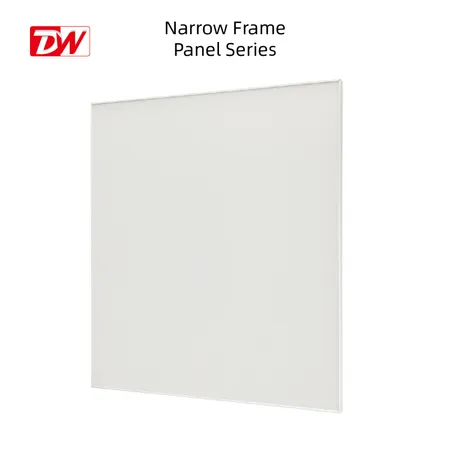

Narrow Frame Panel Series
Narrow Frame panel are latest product, with perfect appearance, flat and neatly surface, the light use high lumen led chips and support seamless installation. The luminaires emit efficient, glare-free light and offer innovative features.
◈ FEATURES
Only 4mm width frame,overshadow your competitor's panels by attractive and neat looking;

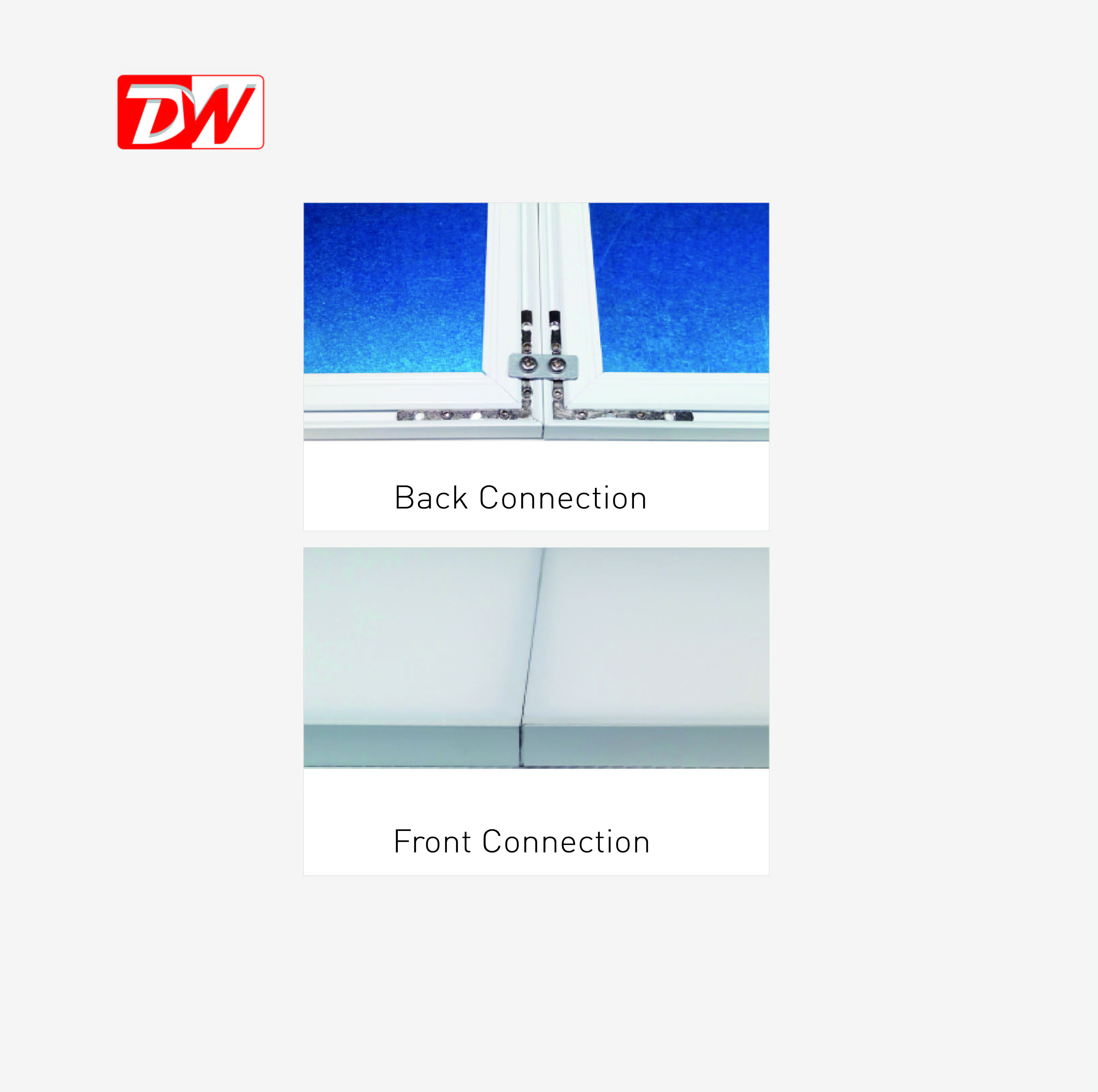

Be able to connect one by one into different shapes;

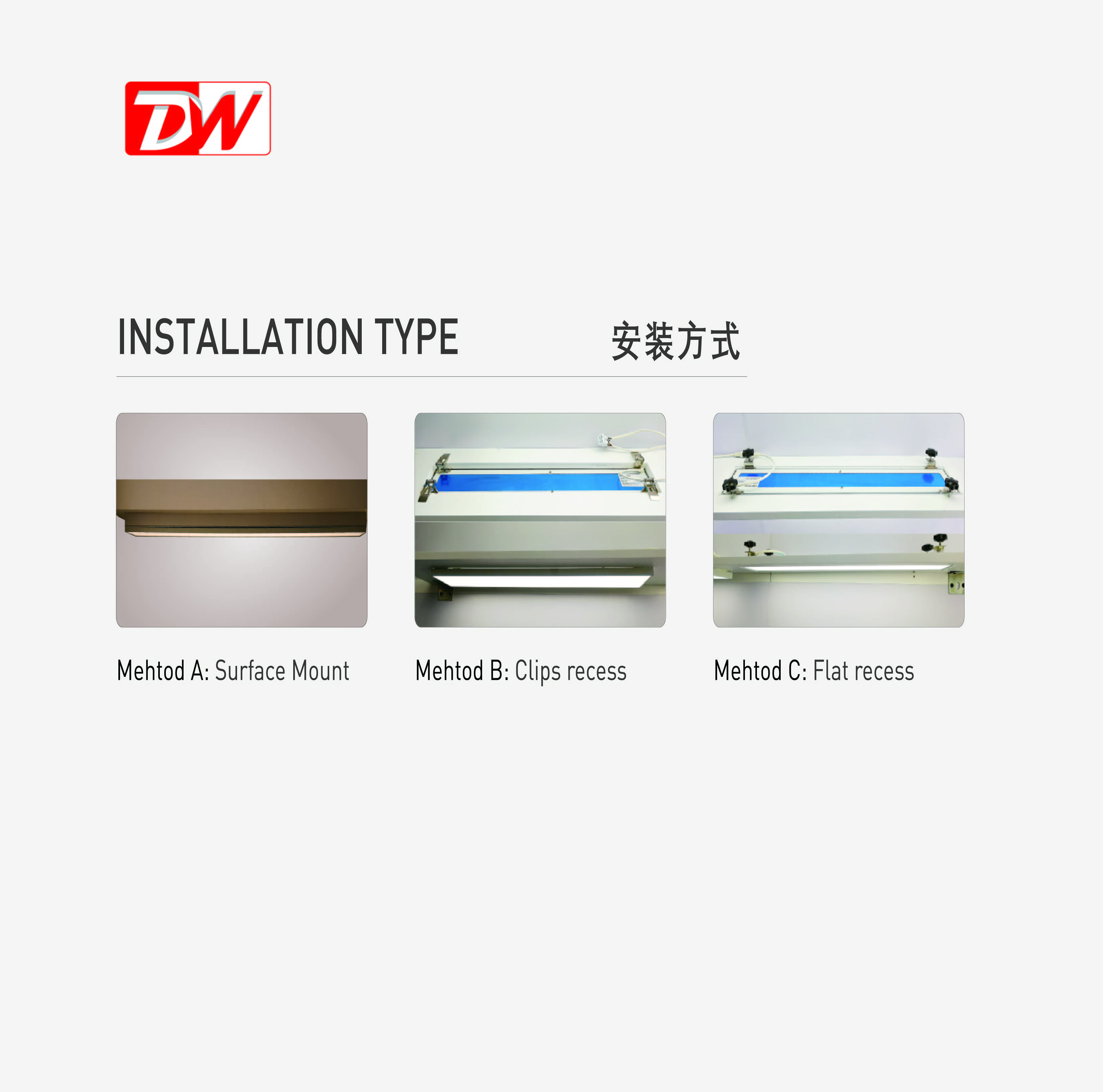

Diversified installation way;
UGR<19 is also very good choice;
PMMA LGP, anti yellowing;
◈ ADVANTAGE
TUV Listed CE, CB, and RoHS, SAA,ISO9001;
PMMA LGP, anti-yellowing;
Only 4mm width frame，overshadow your competitor's panels by attractive and neat looking;
Imported guide plate from Japan Mitsubishi /Taiwan CHIMEI, more than 80% light transmittance;
Diversified installation way;
◈ SPECIFICATION
UGR<19 Narrow Frame Panel Light | ||
Photometric Parameters | ||
NO. | project | parameter |
1 | LED | SMD4014 |
2 | Luminous Efficiency | 100lm/W |
3 | CCT | 3000K-6500K (warm white, natural white, cool white) |
4 | CRI | ≥80 |
5 | Beam Angle | 120° |
6 | UGR | <19 |
7 | LED Lifespan | ≥50000 Hours |
Electrical Parameters | ||
8 | Driver input voltage | AC220-240V /50～60Hz |
9 | OutputVoltage | DC30-40V |
10 | Power Supply Efficiency | ≥88% |
11 | Power Factor | ≥0.9 |
12 | Protection Class | Class II |
13 | Rating IP | IP40 |
14 | Material | Aluminum + PMMA |
15 | Frame Finishing | White |
16 | Installation | Recessed/Pendant |
17 | Working Temperature | -20～+45℃ |
18 | Storing Temperature | -40～+60℃ |
19 | Working Humidity | 15%~90%RH |
◈ SIZE
Efficiency | Model No. | Wattage | Luminous flux | CRI | LED | Dimension |
Standard | DWN606036 | 36W | 3600lm | RA>80 | SMD4014 | 595x595x14mm |
DWN626236 | 36W | 3600lm | RA>80 | SMD4014 | 620x620x14mm | |
DWN606036 | 36W | 3600lm | RA>80 | SMD4014 | 295x1195x14mm | |
UGR<19 | DWNUGR606036 | 36W | 3600lm | RA>80 | SMD4014 | 595x595x14mm |
DWNUGR626236 | 36W | 3600lm | RA>80 | SMD4014 | 620x620x14mm | |
DWNUGR606036 | 36W | 3600lm | RA>80 | SMD4014 | 295x1195x14mm |

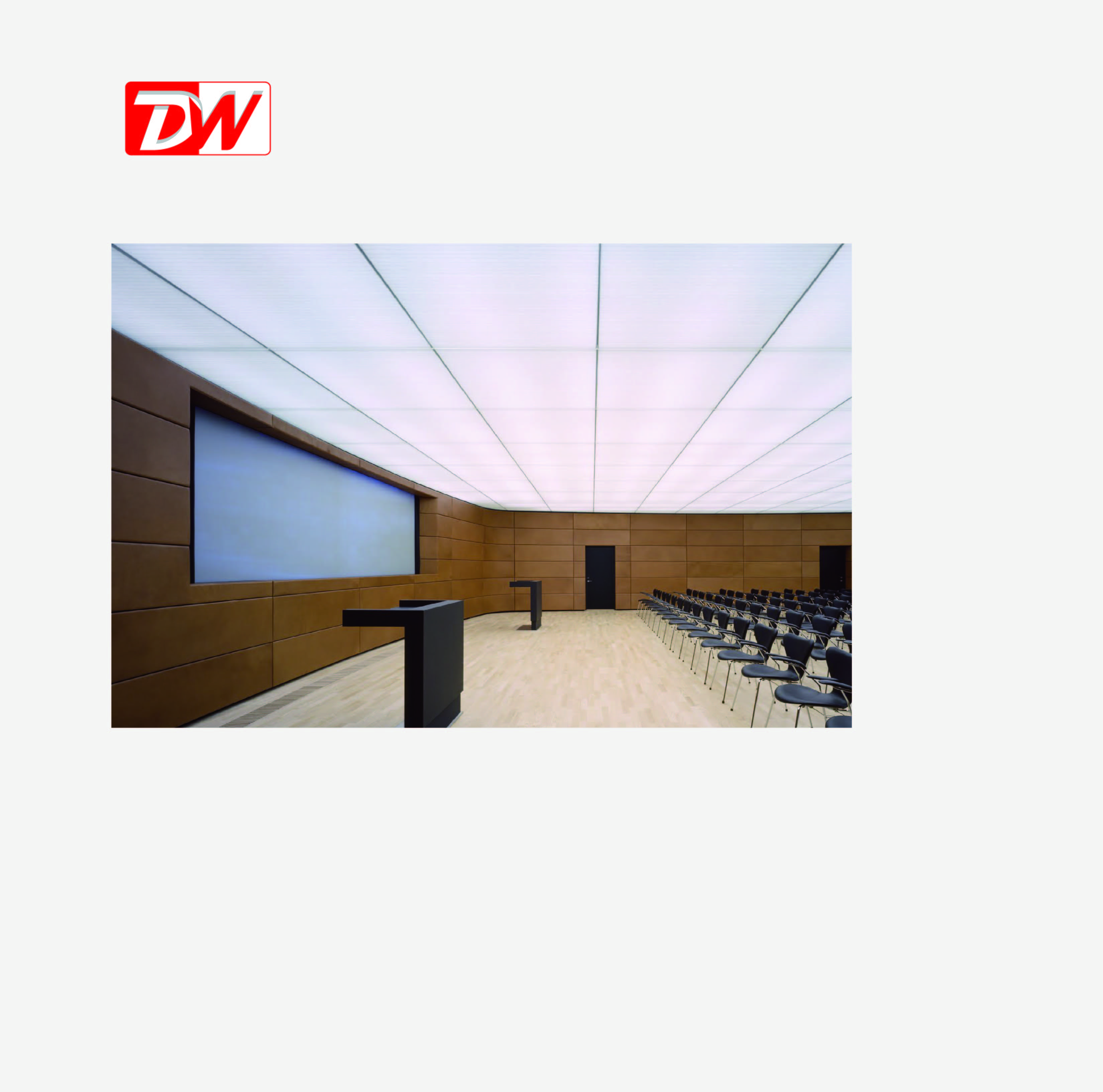

◈ APPLICATION
♦ Showrooms
♦ Boardrooms, offices, corridors
♦ Retail outlets
♦ Hospitals
♦ Hotels, motels/hospital
