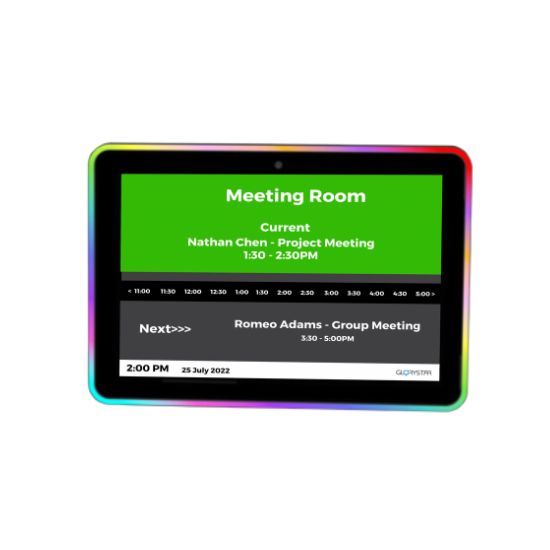

The Nebula Glow Human Machine Interface features a vibrant 10-inch display with a resolution of 1280 x 800, offering exceptional brightness at 450 cd/m² and a contrast ratio of 800:1. With a 16:10 aspect ratio and an active display area of 216.96 x 135.6 mm, it provides a clear and engaging viewing experience, supported by wide 85° viewing angles.

This device employs advanced G+G 10-point capacitive touch technology, enabling smooth interactions via finger touch or a capacitive stylus. The touchscreen is designed for durability, with a surface hardness of ≥ 6H and a transparency of ≥ 85%. It features a rapid response time of just 10 microseconds, ensuring a responsive user experience.

Powered by a quad-core Cortex-A55 processor clocked at up to 2.0GHz, the Nebula Glow is equipped with 4GB DDR4 RAM and 32GB eMMC flash storage, running on Android 12. It supports a range of video formats, including MOV and MP4, and various audio formats like AAC and MP3. The device features dual 2W speakers with noise cancellation and a 2MP camera for multimedia applications.

Connectivity is robust, with Bluetooth 5.0, dual-band Wi-Fi (802.11 a/b/g/n/ac) utilizing three antennas, and a 10/100/1000 LAN port. The Nebula Glow includes multiple I/O options, such as USB 2.0, USB 3.0, a Type C port, and GPIO support. With optional Power over Ethernet (POE) capabilities and a maximum power consumption of 14.4W, it is designed for versatility and efficiency. The sleek gray and black plastic chassis is flame-retardant, ensuring safety in various operating conditions, which range from 32°F to 104°F (0°C to 40°C).
