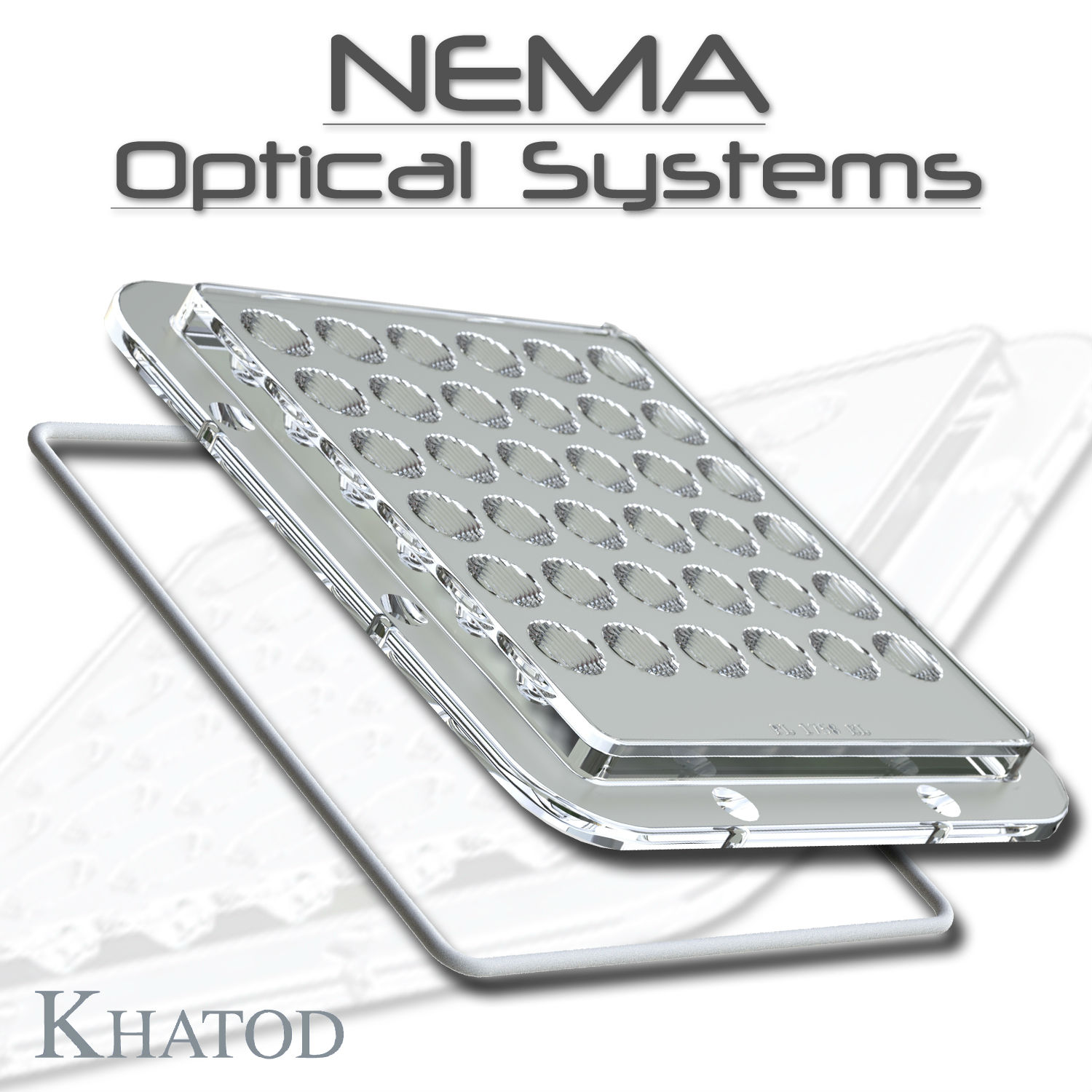

NEMA OPTICAL SYSTEMS are ready-to-use optical systems, for the most diverse Lighting applications.
Their name immediately identifies the service NEMA OPTICAL SYSTEMS are designed for, as well as their compliance with NEMA Standards requirements. Conceived for sporting facilities, arenas and stadiums, they offer excellent performances in any wide area, indoor and outdoor. You will find panels made up of 36 optics (6x6) and panels realized as a flat-lens panel. You may create small configurations made of a single module as well as large configurations made up of 12 -16 and more elements. Optimize the high intensity light outputs of the most recent Power LEDs. A single NEMA module can achieve a light flux output of around 7000 Lumens intensity.

General Characteristics
• Optic Type:  Optical System, designed for Power LEDs delivering high intensity. Panel and optics are a
   single injection-molded body.
• Material: Optical grade PMMA HT specific for high temperature resistance, up to 125°C.
• Dimensions:  110 mm (w)  x  120 (l)  x  9,51 to 12 mm (h)



• Models and Beam Angles:
   -  5 Models realized in the form of lens arrays made up of 36 optics (6x6);
      Beam angles: Narrow –  Medium – Wide –  Extra Wide – Elliptical
   -  2 models realized in the form of a single flat-lens, available with clear finish and opal white finish.
      Perform a 120° beam angle; generate a very smooth and homogeneous lighting diffusion.
• Beam Angles Class: Complying with  NEMA 2 – 3 – 4 – 5 – 7  Standards.
• Lighting efficiency: over 85%
• Complying with UL94 Specifications
• UV protected
• Non-yellowing; total anti-glare.
• A pocket in the panel provides the housing for UL homologated connectors.
• IP 65 protected on request.

Features
• Ensure great illuminance and total anti-glare effect in any location they are installed.
• No need of glass protection = No light dispersion = +13% in lighting efficiency.
• Allow interchangeability of different models on the same LED source.
• Great flexibility in the applications; they are excellent solutions also in portable lighting applications.
• Enable multi-modules layouts.

Applications:
Engineered for arena lighting applications, NEMA OPTICAL SYSTEMS are excellent also for any application in the most diverse locations, outdoor and indoor. Excellent also in floodlight and portable lighting applications.
• Sporting facilities, arenas, stadiums and any event area.
• Industrial and commercial buildings, Indoor & Outdoor.
• Construction and manufacturing areas.
• Large yards, Workplaces, Wide Public Places.
• Emergency operations areas, road and urban works areas:  light towers as well as in portable lighting
   (tripod, portable pedestals, etc.)
• General Lighting in Wide Areas: Garden Light, Residential, Retail, Shop, Architectural, Hospital &
   Hospitality Light, Canopies, Petrol Gas Station, Parking Light, Industrial Light, Professional Light.
