Product Description

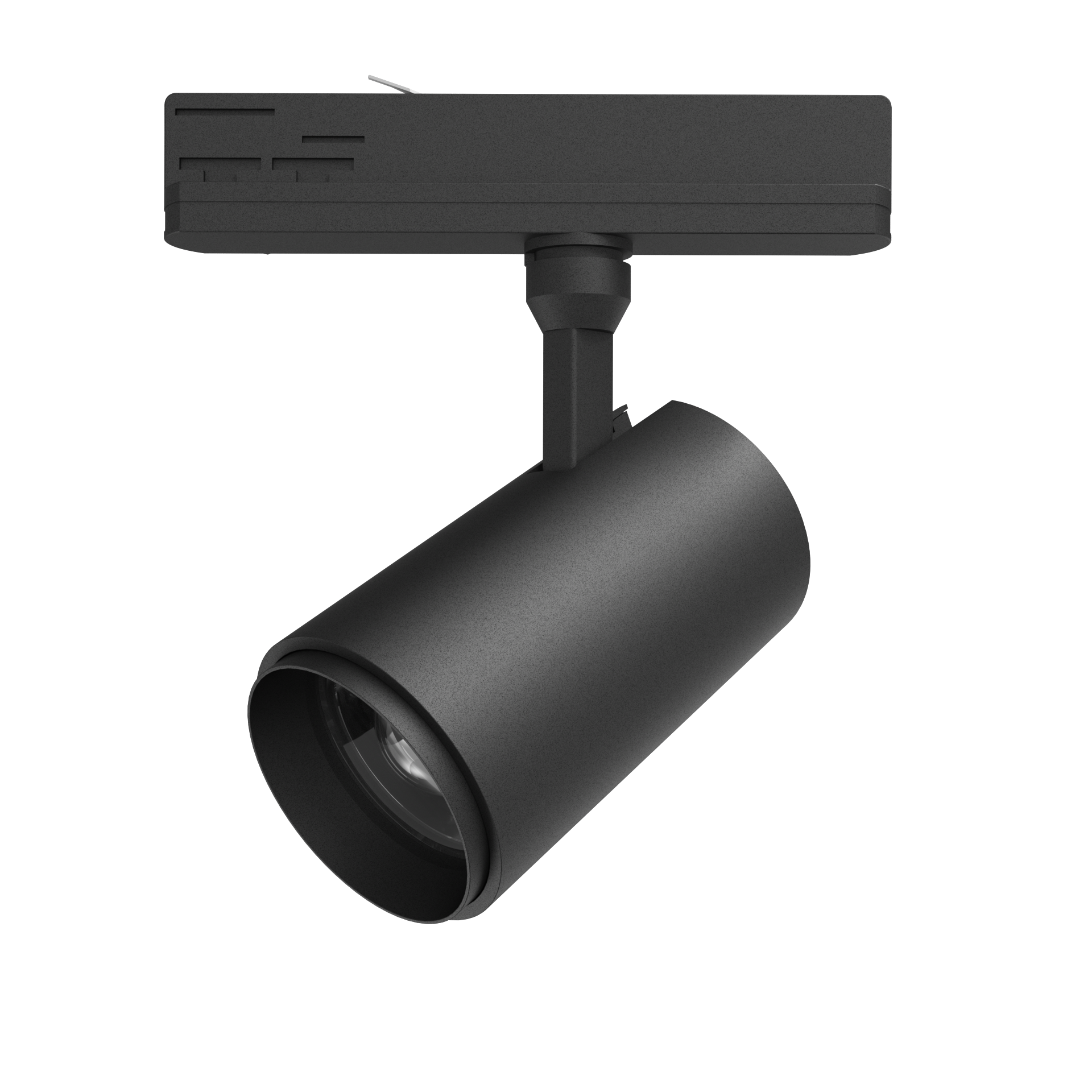

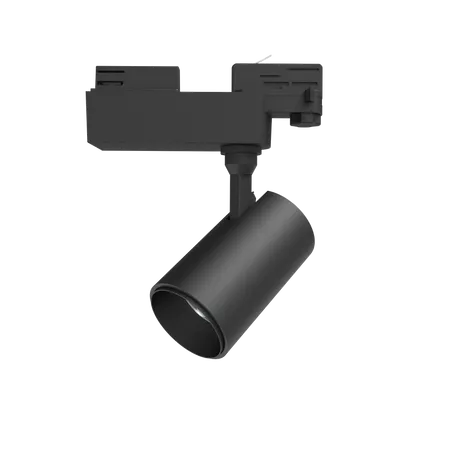

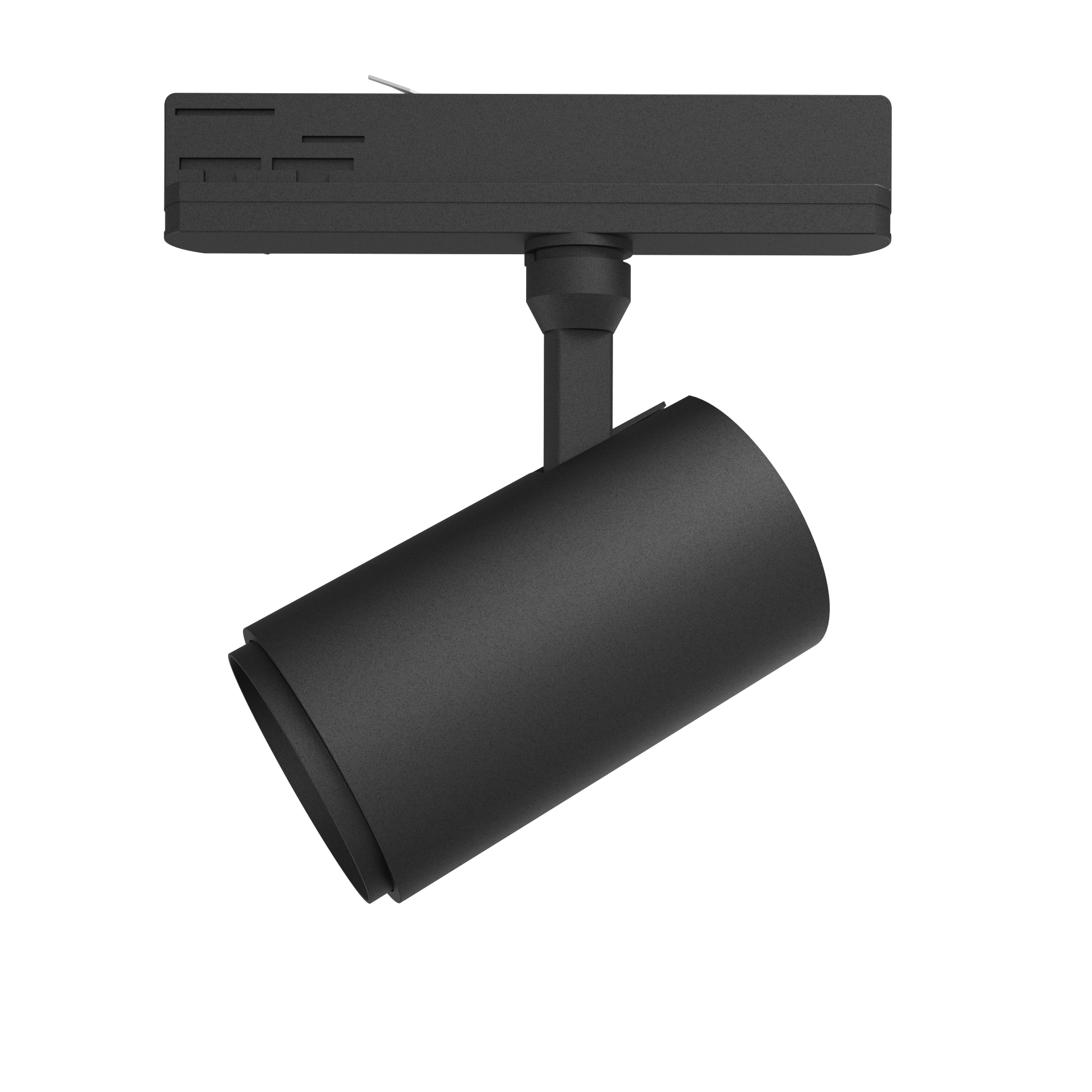

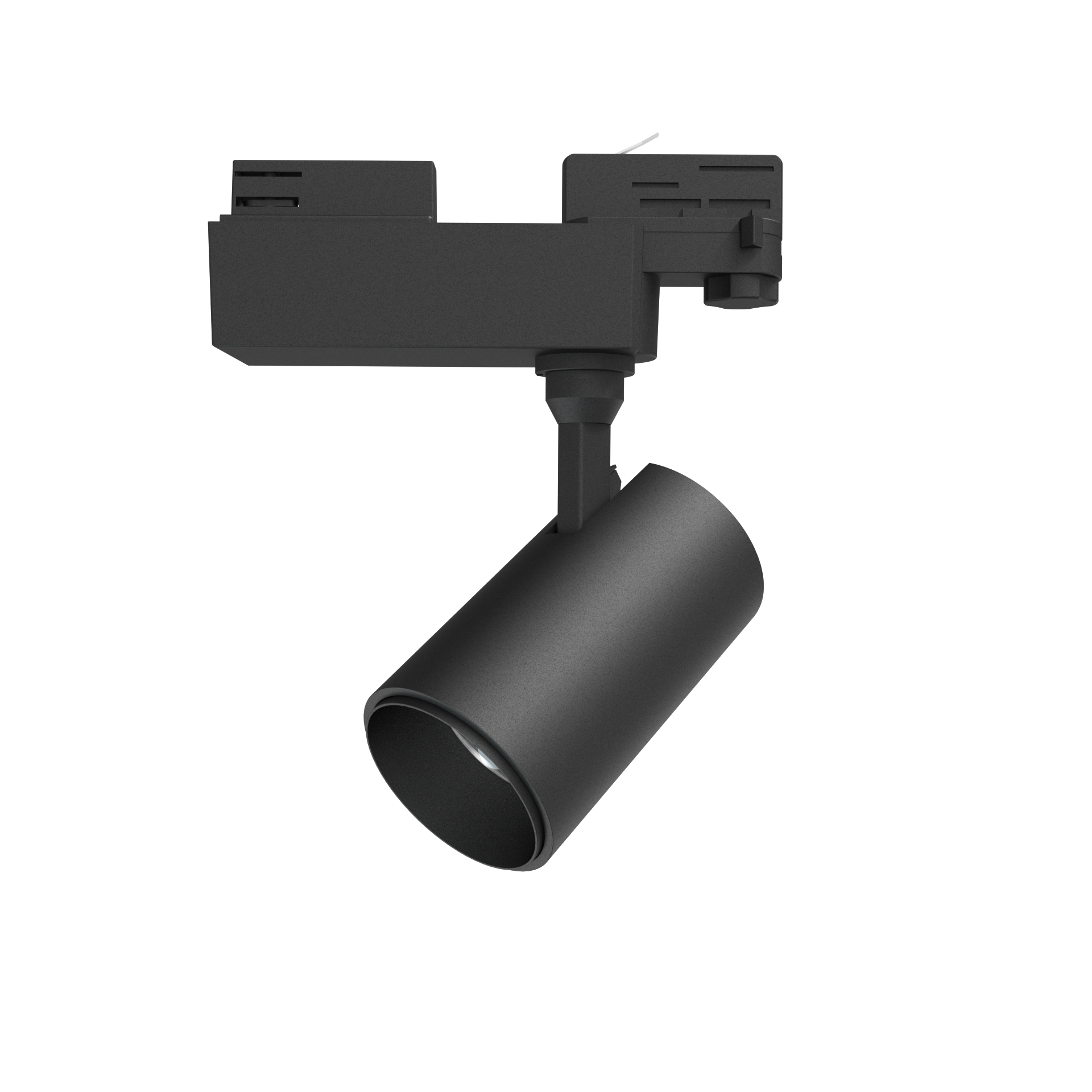

Tack light RT8520-BL originally researched and developed by KWT, high-end

spotlight with interior driver, design inspiration from people’s double-eyelid

eyes, 85mm diameter face cover, integrated molded lamp housing of CNC

aluminum, international top COB CITIZEN chip, plus KWT-oriented glare free reflector and KWT exclusive non-flicker driver, stable specifications,

glare-free, good heat sink, brilliant quality, more than 40,000 hours life

span.

Technical Parameter

Nominal wattage:20W

Warranty ：3 years

Input Voltage: 220-240V 50/60Hz

Color temperature: 2700k/3000k/4000k

Operation temperature ：-20℃-50℃

Protection class ：IP20

Beam angle:16°~50°

2700k Luminous flux:16° 1339lm/50° 1551lm

3000k Luminous flux:16° 1419lm/50° 1586lm

4000k Luminous flux:16° 1449.3lm/50° 1616lm

Connection type : 3 wires/4 wires/6 wires

Product color:White/Black

Color rendering index : Ra>90

Dimming:No Dim/Triac Dim/0-10V/Dali

 Product features

·High Ra﹥90, Low SDCM﹤3

·High efficacy,high illuminance

·No glare design,perfect point of light,accurate beam Angle,

So that the lighting environment comfortable.

·No flicker drive to meet superior peripheral lighting requirements

·Integrated radiator with convection hole, good heat dissipation

performance,internal drive, low temperature operation

guarantee of over 40,000 hours

·Exquisite parts and design guarantee a long life

·It can rotate 355 degree shorizon tally and 90 degrees vertically

Packaging Info

Packaging unit             Folding carton box                       Shipping carton box

Packaging QTY                   1pcs                                             12pcs

Dimensions(Lx Wx H)         268×225×125mm                   556×470×400mm

Volume                                     7.53 dm³                                    104.16 dm³

Gross weight                                 1.14kg                                    13.68kg

Installation

1.lease install the related track rail before install the light

2.Aim the track head to the track rail then push up, make sure

the track head are total match into the track rail

3.After install the track head into the track rail, rotate the connector

spindle 90°as below
