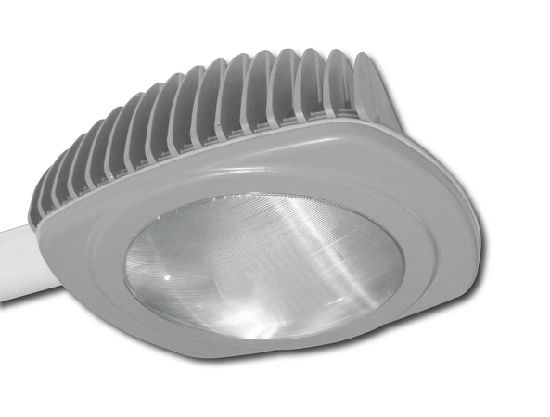

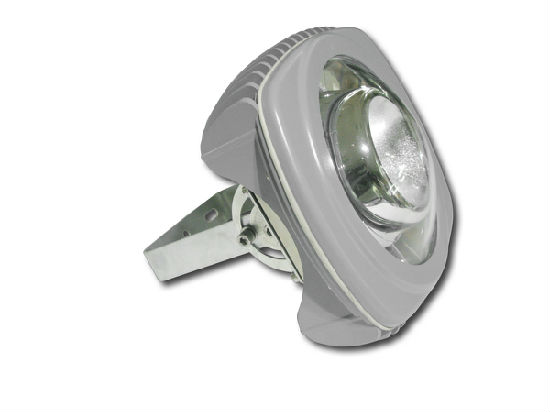

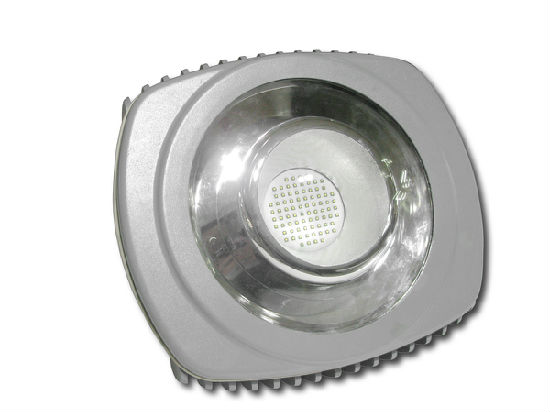

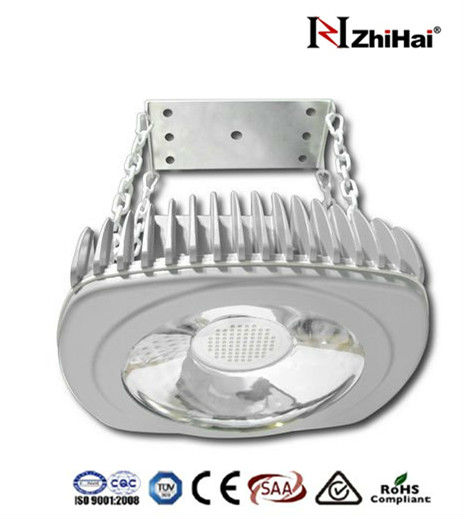

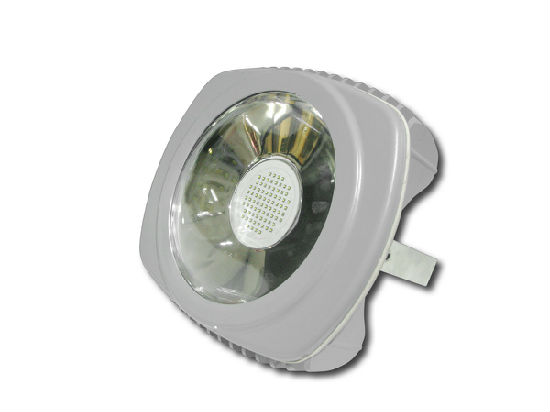

New Design High Lumen Industrial LED Pendant Light
Production Lead Time:
10 day(s)
Model No.:
ZHGL-30A/60A/90A/120A/150A/180A
Brand:
Zhihai
Colour:
Gray
Size:
360 x 358 x 187mm
Port:
Beijing, Tianjin
Type of Payment:
T/T
Minimum Order Quantity:
5 piece(s)
Voltage(V):
80-315Vac
Certification:
CE, CQC, LVD, RoHS, SAA, UL, VDE
Wattage(W):
30W-180W
Warranty:
3/5 year
Base Type:
pendant bracket
Light Source:
LED Bulb
Body Material:
Aluminum, Glass, Polycarbonate (PC), Stainless Steel
Is Dimmable:
Yes
Power Source:
AC, DC, Solar Powered
Including Bulbs:
No
Description
Contact Supplier
Description
Features & Characteristic:
Model: ZHGL-30A/ZHGL-60A/ZHGL-90A/ZHGL-120A/ZHGL-150A/ZHGL-180A
Total Power: 30W 60W 90W 120W 150W 180W
Initial Lumen: 3600lm 7200lm 10800lm 14400lm 18000lm 21600 lm
Replace HID Lamp: 50-100W 100-150W 150-250W 250-300W 300-400W 400-500W
Dimension: 360x358x187mm
Net Weight: 8kg (17.6lbs)
Color Temperature: 4000K (warm white) / 6000K (cool white)
Color Rendering: ≥Ra75
Working Life: ≥50000Hrs
Housing Material: Aluminum
Coating: Zinc Rich Paint
IP Class: IP 65 (Upgradeable to IP 67)
Insulation Class: Class I (Upgradeable to Class II)
Working Temperature: -40C ~ 60C / -40F ~ 140F
Working Humidity: 10% ~ 95%
AC Input: 80 ~ 315Vac, (347Vac available on request)
DC Input: 80 ~ 400Vdc, (12Vdc, 24Vdc and other input
available on request)
THD: <10%
Power Factor: ≥0.98
- Patent multi- function design, suitable for all projects
- 5-5-10 year warranty
- Osram/Cree LED chips, 120 lm/w system efficiency*
- 80% lumen maintenance over 50,000hours
- 0-10Vdc dimming driver available
- Photocell sensor system available
- Built-in surge protection
- Built-in thermal protection
- Maintenance free
- Mercury free, No UV or IR
- Universal input without additional adapter,80-315Vac, 80-400Vdc
- Instant start and flicker free
- High uniformity and color rendering
Model: ZHGL-30A/ZHGL-60A/ZHGL-90A/ZHGL-120A/ZHGL-150A/ZHGL-180A
Total Power: 30W 60W 90W 120W 150W 180W
Initial Lumen: 3600lm 7200lm 10800lm 14400lm 18000lm 21600 lm
Replace HID Lamp: 50-100W 100-150W 150-250W 250-300W 300-400W 400-500W
Dimension: 360x358x187mm
Net Weight: 8kg (17.6lbs)
Color Temperature: 4000K (warm white) / 6000K (cool white)
Color Rendering: ≥Ra75
Working Life: ≥50000Hrs
Housing Material: Aluminum
Coating: Zinc Rich Paint
IP Class: IP 65 (Upgradeable to IP 67)
Insulation Class: Class I (Upgradeable to Class II)
Working Temperature: -40C ~ 60C / -40F ~ 140F
Working Humidity: 10% ~ 95%
AC Input: 80 ~ 315Vac, (347Vac available on request)
DC Input: 80 ~ 400Vdc, (12Vdc, 24Vdc and other input
available on request)
THD: <10%
Power Factor: ≥0.98
