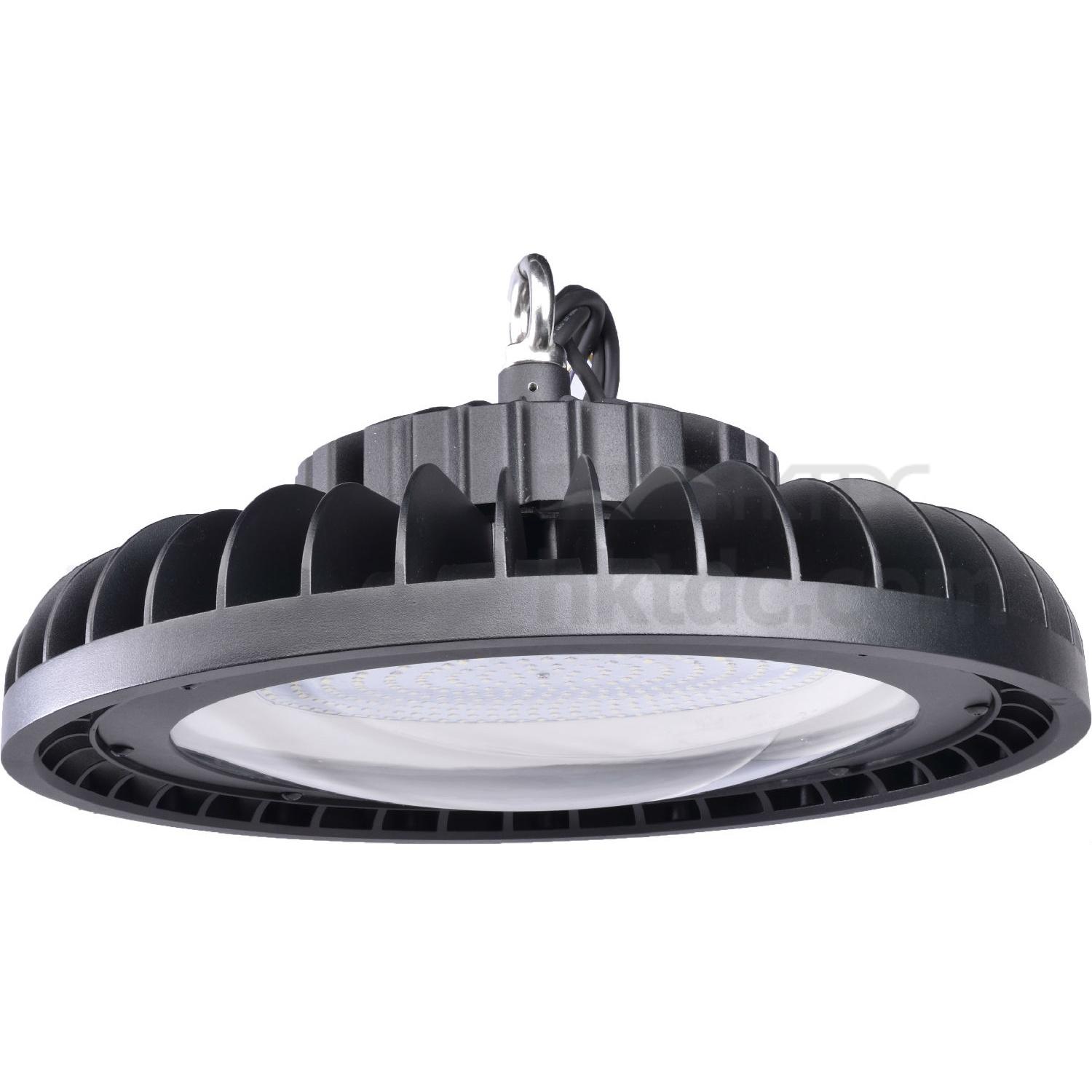

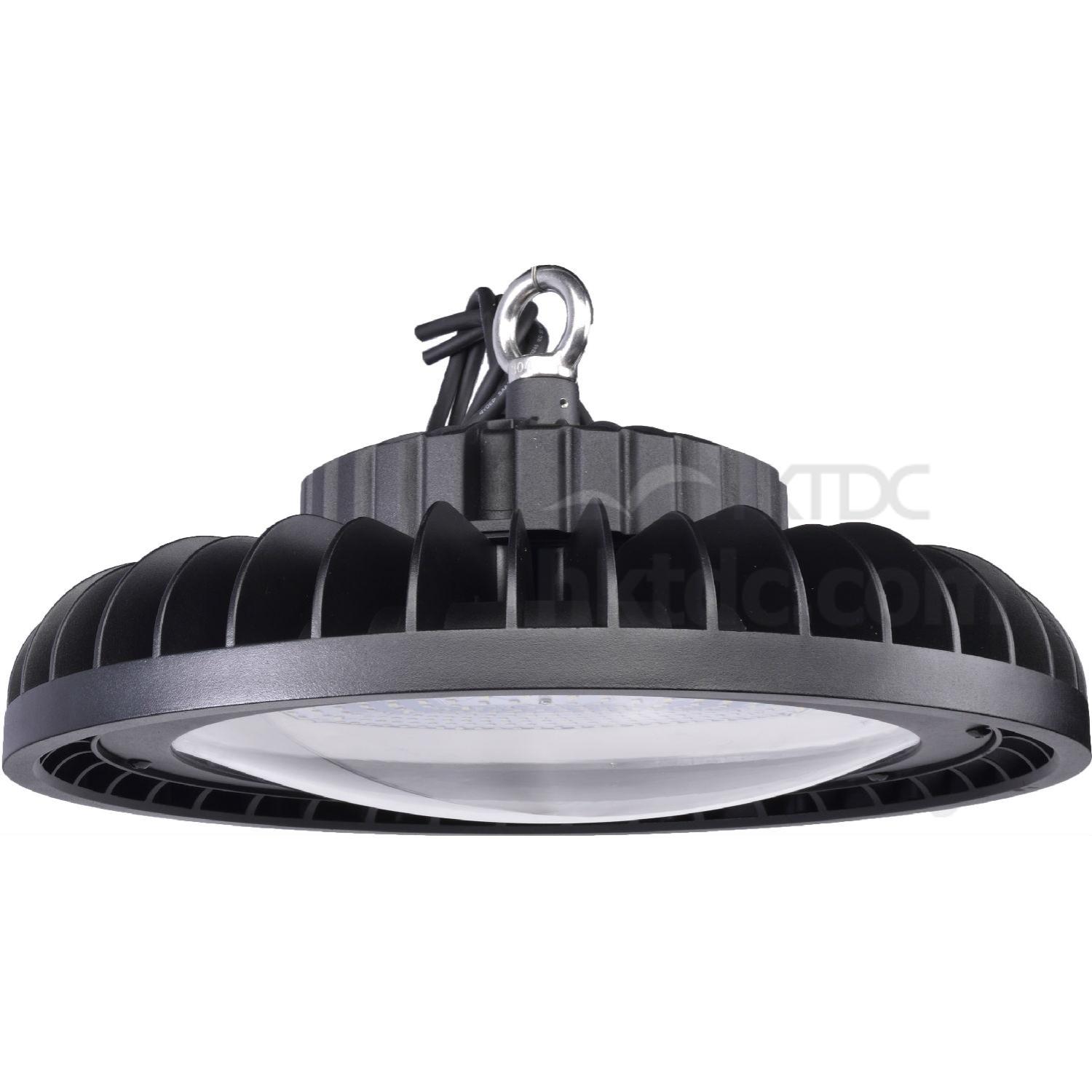

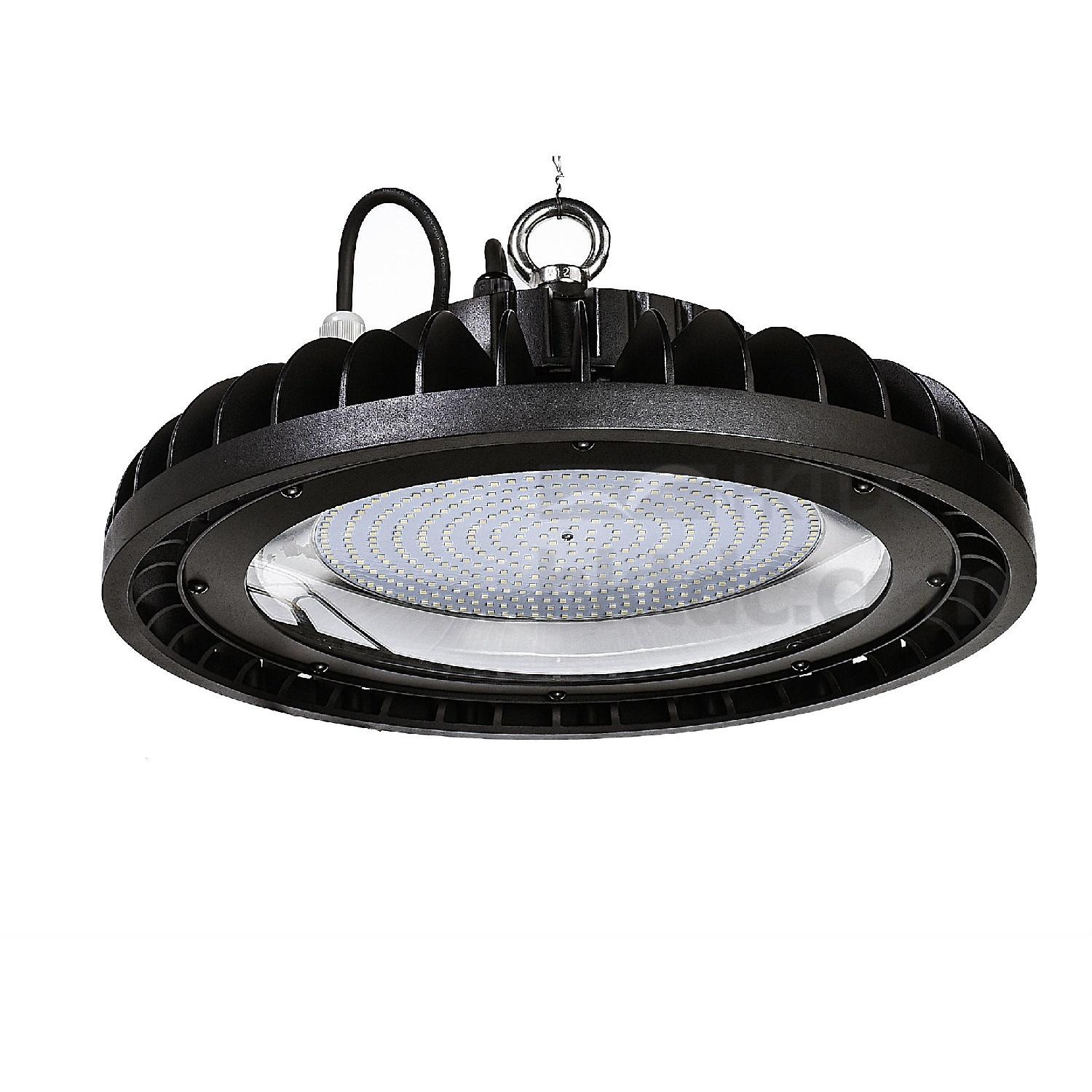

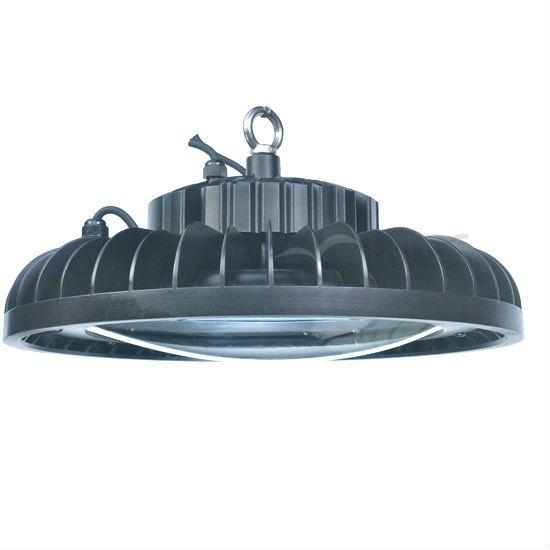

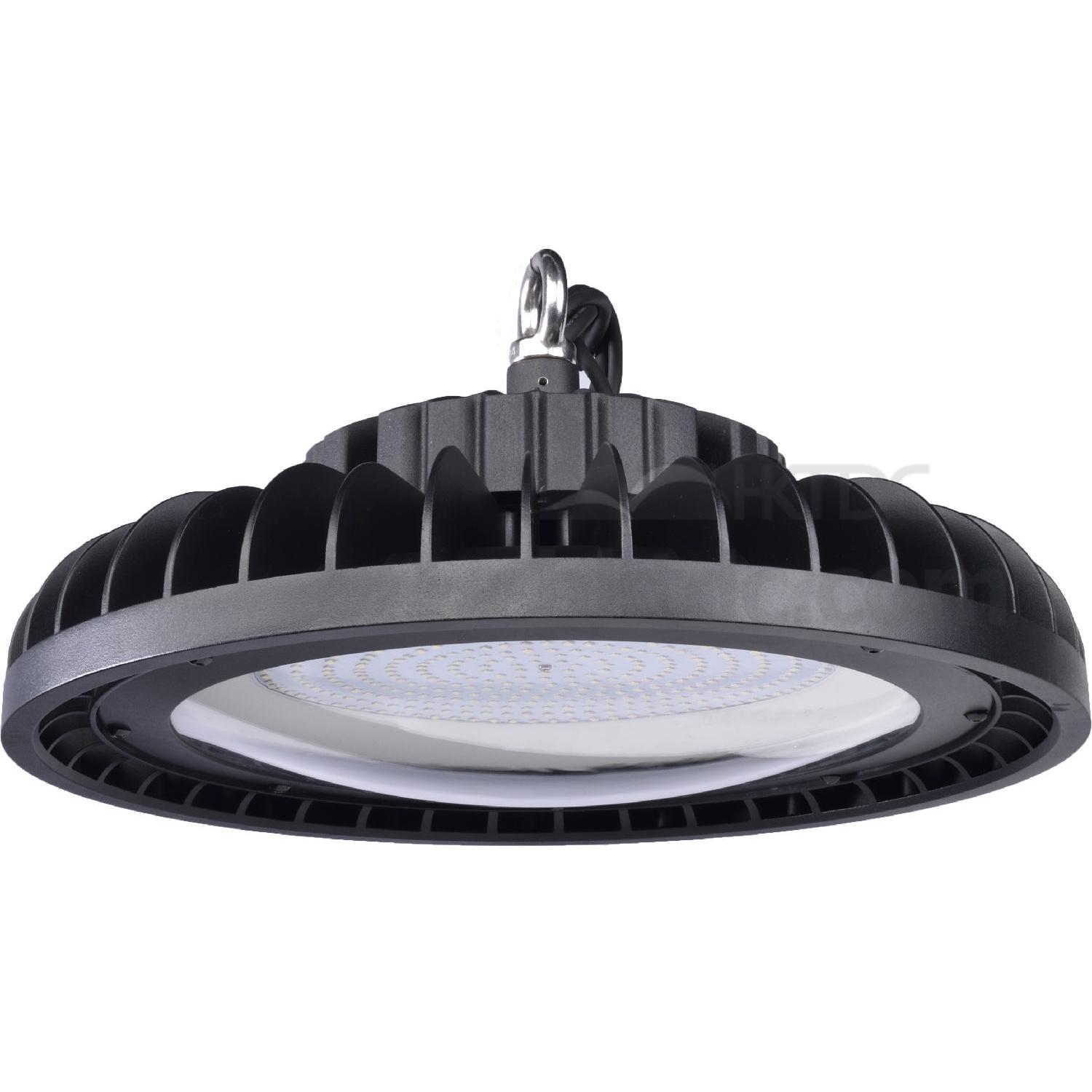

New Style LED High Bay Light (100W-240W)
Production Lead Time:
5 day(s)
Model No.:
SV-HBL-100
Brand:
SunValley
Colour:
Black
Size:
Φ350mm x 200mm, Φ410mm x 205mm
Port:
Yantian, Shenzhen
Type of Payment:
T/T
Minimum Order Quantity:
1-500
Certification:
FCC, DLC, ETL
Wattage(W):
90~305AC
Warranty:
5 year
Light Source:
LED
Body Material:
Aluminum
Is Dimmable:
Yes
Power Source:
AC
Switch Type:
Touch Switch
Customized:
Yes
Description
Contact Supplier
Description
- Model ORE-UFO-HBL(100W-240W)
- Output power 100W-240W±10%
- Material Die-cast aluminium alloy
- Light source LUMILEDS 3030 SMD*398 PCS
- Color Temperature 4000K or 5700K
- CRI ≥70
- Light distribution standard (comply with North American and European standards)
- Driver INVENTRONICS(Intelligent driving power supply)
- Input voltage 90-305 VAC or 127-300 VDC
- Output voltage 36VDC
- Output current 3100-5600mA
- Frequency range 47-63Hz
- Power factor PF﹥0.99. 120VAC; PF﹥0.96. 220VAC
- Power-supply efficiency ＞92%
- Luminous efficacy class LER＞130lm/W
- Protection Short circuit/Over voltage/Over temperature automatic protection
- Operating temperature 一40℃～+55℃
- Operating humidity 10～95% RH
- Driver 0-10V / PWM Intelligent Dimming. Class 2 and SELV. SPD 4KV
- Protection level be suitable for risky situations of Class Ⅰ & Division 2 in North America. IP65.
- Heat-dissipating method Natural air cooling
- Safety certification ETL ,DLC, RoHS, FCC and IP66
- Size Φ350*200mm or Φ410*205mm
- Net weight 5.65kg-7.65Kg
- Packaging Carton + polyfoam
