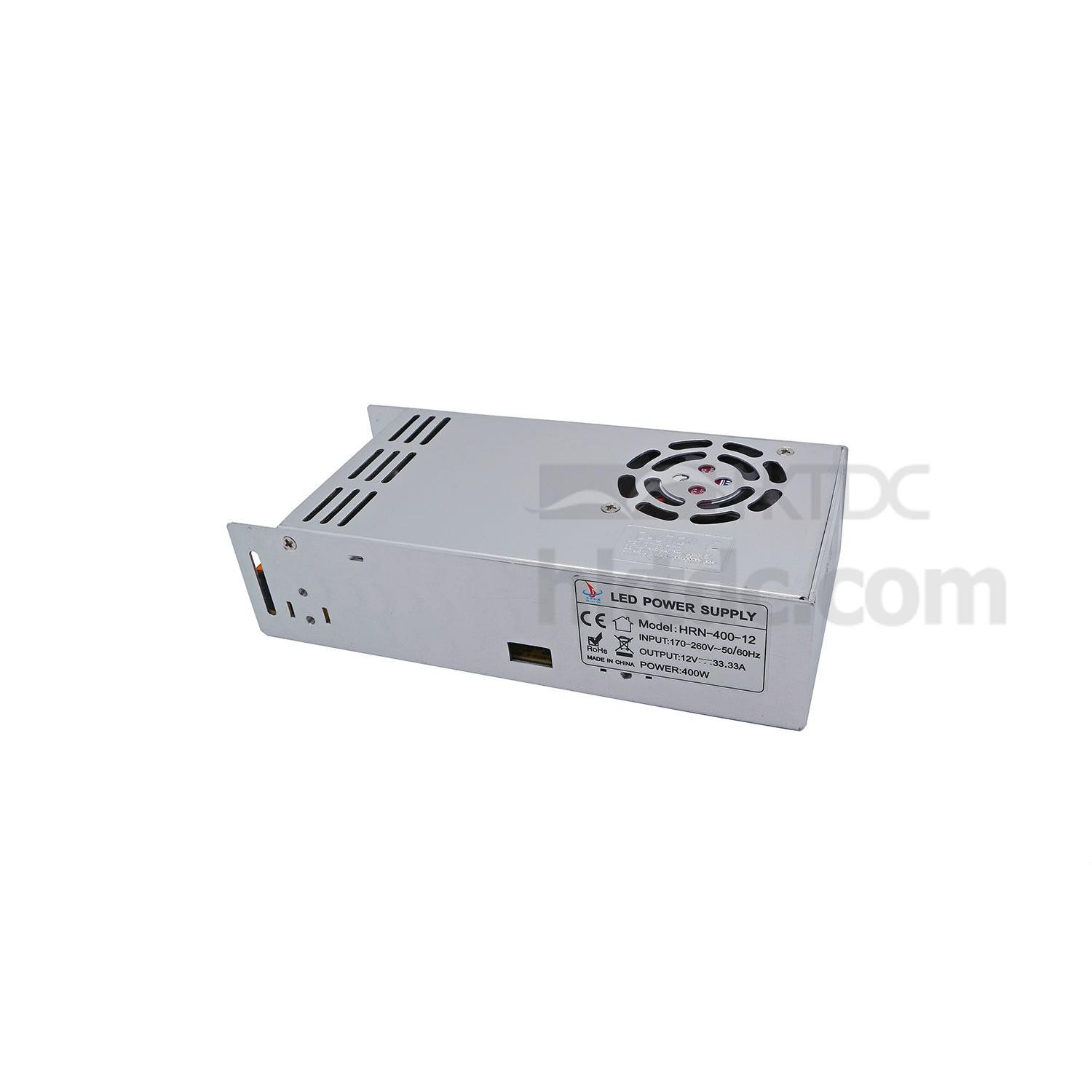

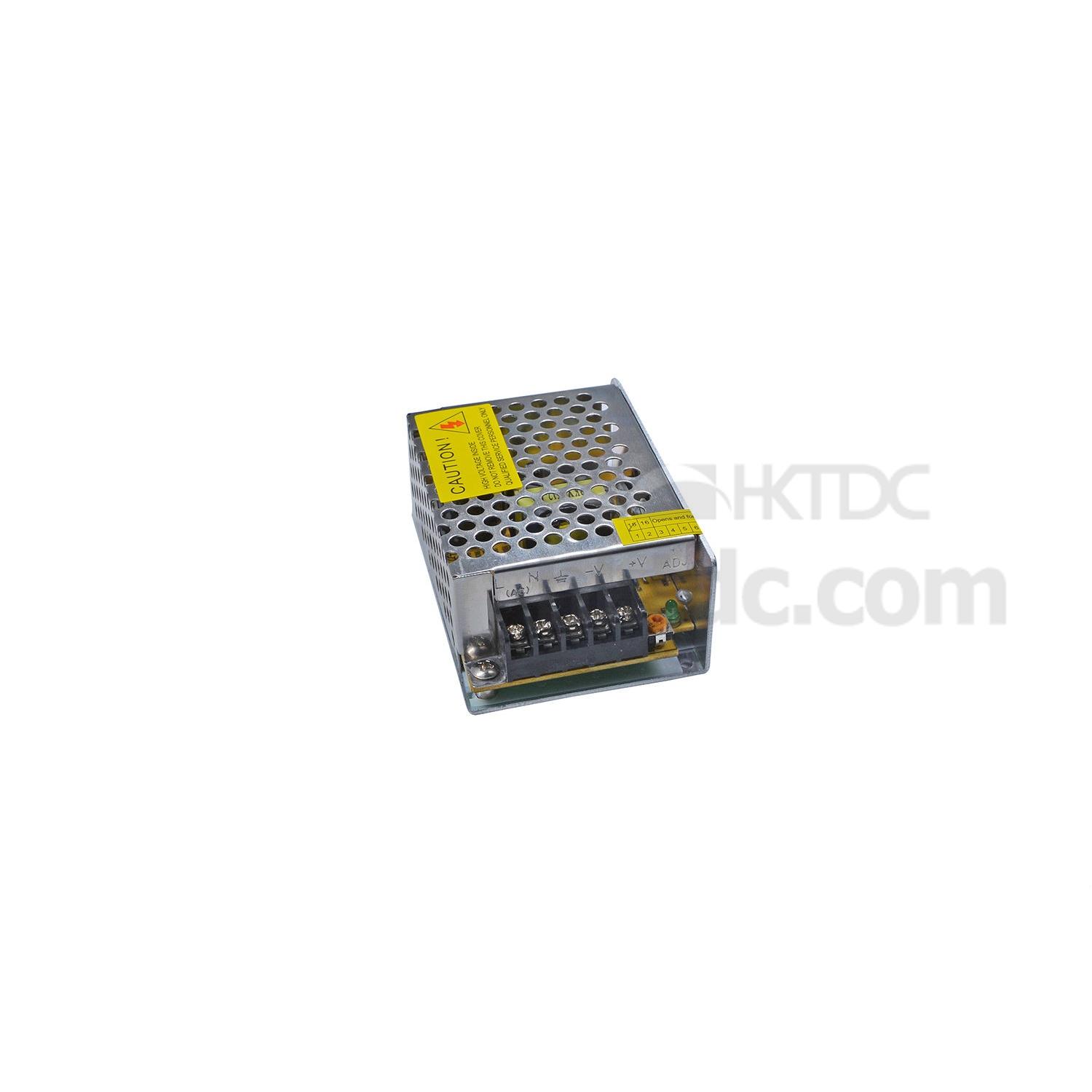

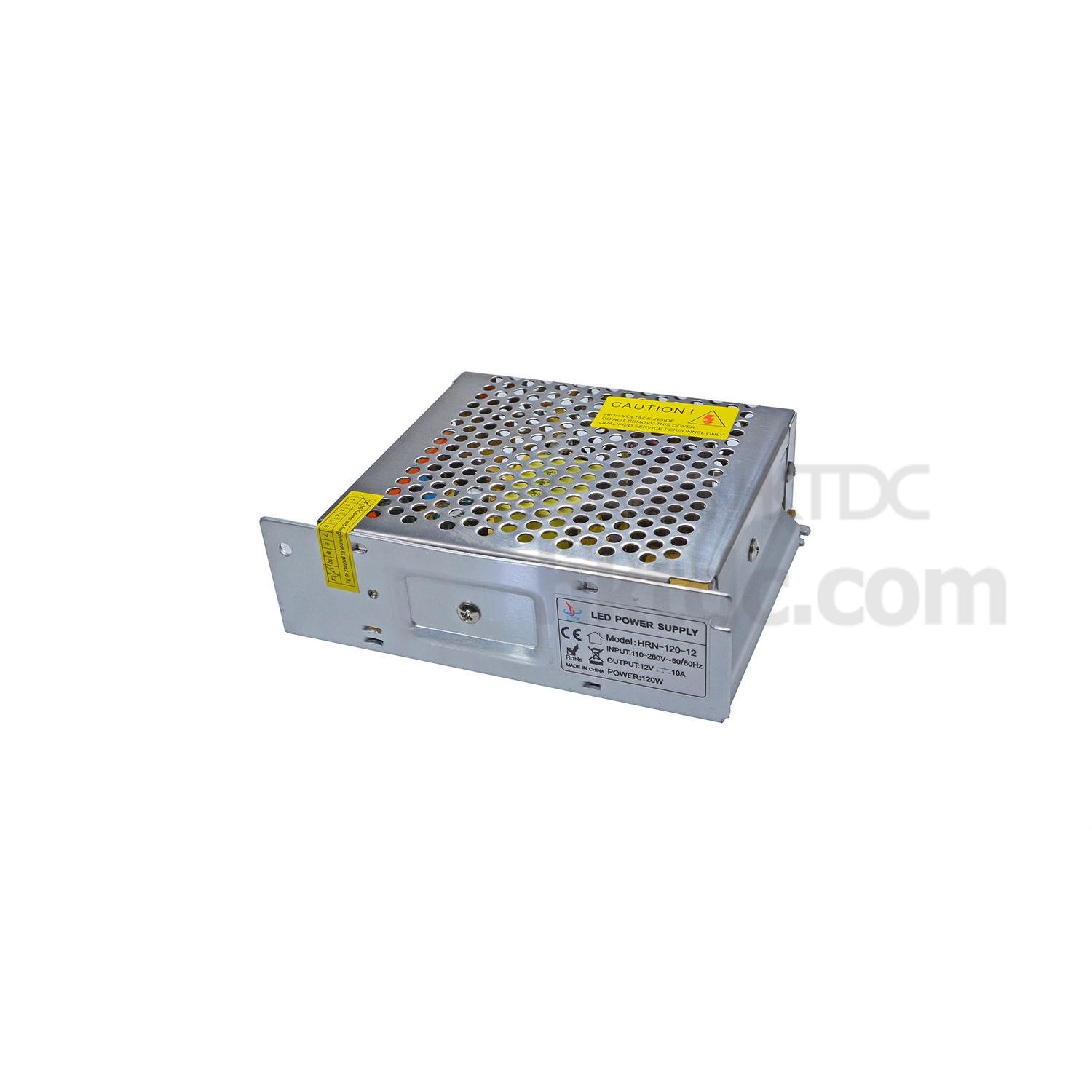

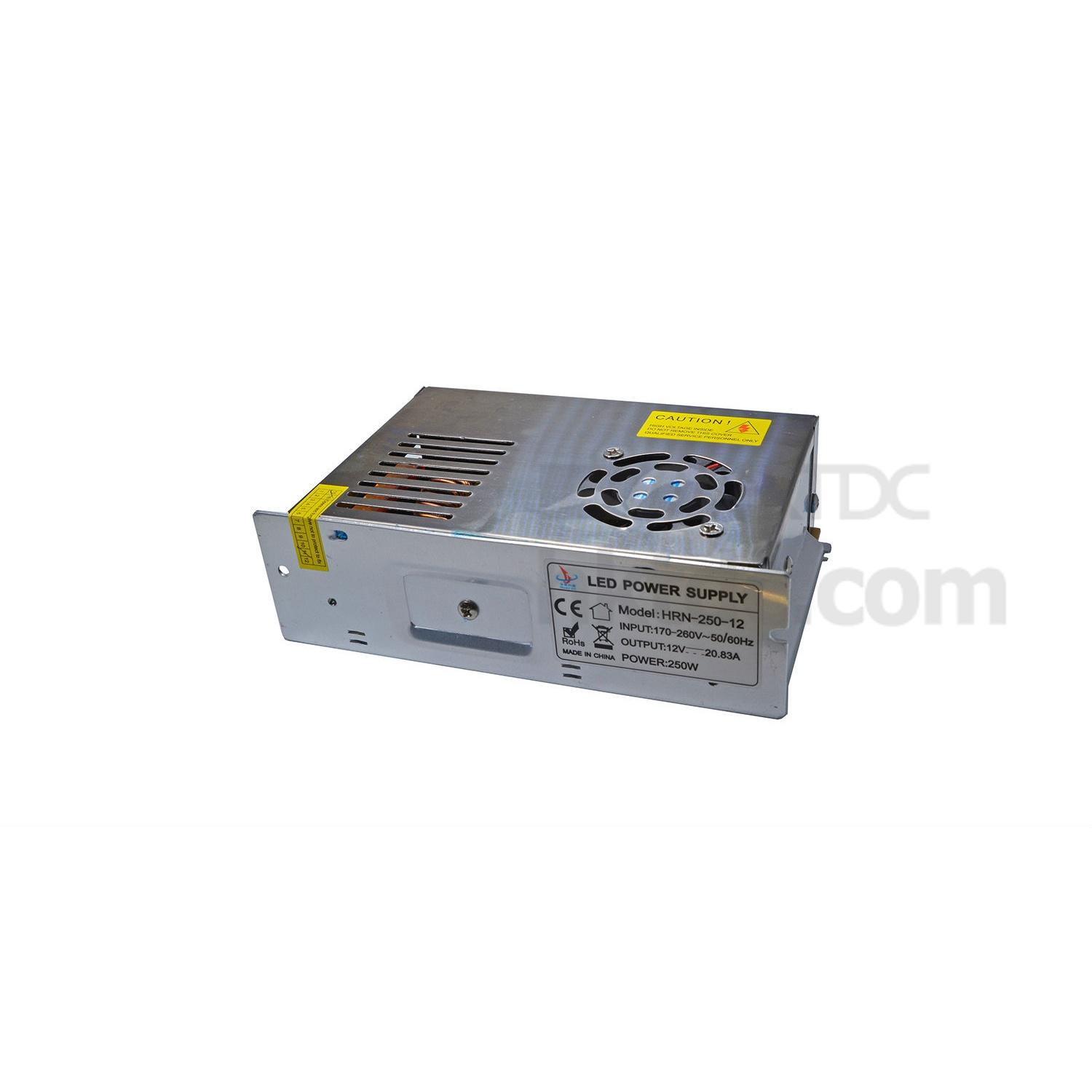

Non-Waterproof Led Power Supply
Model No.:
HRN-XXX-12
Port:
shenzhen
Type of Payment:
T/T,PAYPAL,WEST UNION
Minimum Order Quantity:
200PCS
Fitting:
Linkable Fitting
Certification:
CCC, CE, CQC, EMC, FCC, GS, LVD, RoHS , VDE, CB,BIS
Warranty:
3 years
Output Voltage(V):
12V/24V
Input Voltage(V):
110V/220V
Description
Contact Supplier
Description
Item No: HRN-15-12...HRN-400-12
Output voltage:12V/24V
Rated Current: 1.25A/0.62A...33.3A/16.6A
Rated Power: 15W-400W
Ripple and Noise Note: 100mVp-p
Setup, Rise, Hold up time: 200ms 100ms 30ms
Input Voltage Range:100-264V
Frequency Range: 47~63Hz
AC inrush Current: 40A/230V
Leakage Current: 1mA/240VAC
Housing shell: Aluminum shell good for heat transfer
>>>Features :
Universal AC input/Full range
Protection: Short circuit/Overload/Over voltage/Over temperature
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effectively
100% full load burn-in test
Ideal for indoor or outdoor installations
Suitable for LED lighting and moving sign applications
3 years warranty
>>>Protection：
Over Current: 105-150% rated output power. Protection type: Hiccup mode,recovers automatically after fault condition is removed.
Over Voltage: Protection type: shut down o/p voltage, re-power on to recover.
Short Circuit: Auto Recover
Protection grade: IP20
>>>Environment：
Working Temp: - 20 ~ 60 ° c / 20% ~ 90% RH (no frost)
Storage Temp: -40 ~ 85 ° c / 20% ~ 90% RH (no frost)
Temp. Coefficient: 0.03%°C (0~50°C)
Vibration Frequency: 10~500Hz, 2G 10min/1cycle, period for 60 min. each long X, Y, Z axes.
Output voltage:12V/24V
Rated Current: 1.25A/0.62A...33.3A/16.6A
Rated Power: 15W-400W
Ripple and Noise Note: 100mVp-p
Setup, Rise, Hold up time: 200ms 100ms 30ms
Input Voltage Range:100-264V
Frequency Range: 47~63Hz
AC inrush Current: 40A/230V
Leakage Current: 1mA/240VAC
Housing shell: Aluminum shell good for heat transfer
>>>Features :
Universal AC input/Full range
Protection: Short circuit/Overload/Over voltage/Over temperature
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effectively
100% full load burn-in test
Ideal for indoor or outdoor installations
Suitable for LED lighting and moving sign applications
3 years warranty
>>>Protection：
Over Current: 105-150% rated output power. Protection type: Hiccup mode,recovers automatically after fault condition is removed.
Over Voltage: Protection type: shut down o/p voltage, re-power on to recover.
Short Circuit: Auto Recover
Protection grade: IP20
>>>Environment：
Working Temp: - 20 ~ 60 ° c / 20% ~ 90% RH (no frost)
Storage Temp: -40 ~ 85 ° c / 20% ~ 90% RH (no frost)
Temp. Coefficient: 0.03%°C (0~50°C)
Vibration Frequency: 10~500Hz, 2G 10min/1cycle, period for 60 min. each long X, Y, Z axes.
