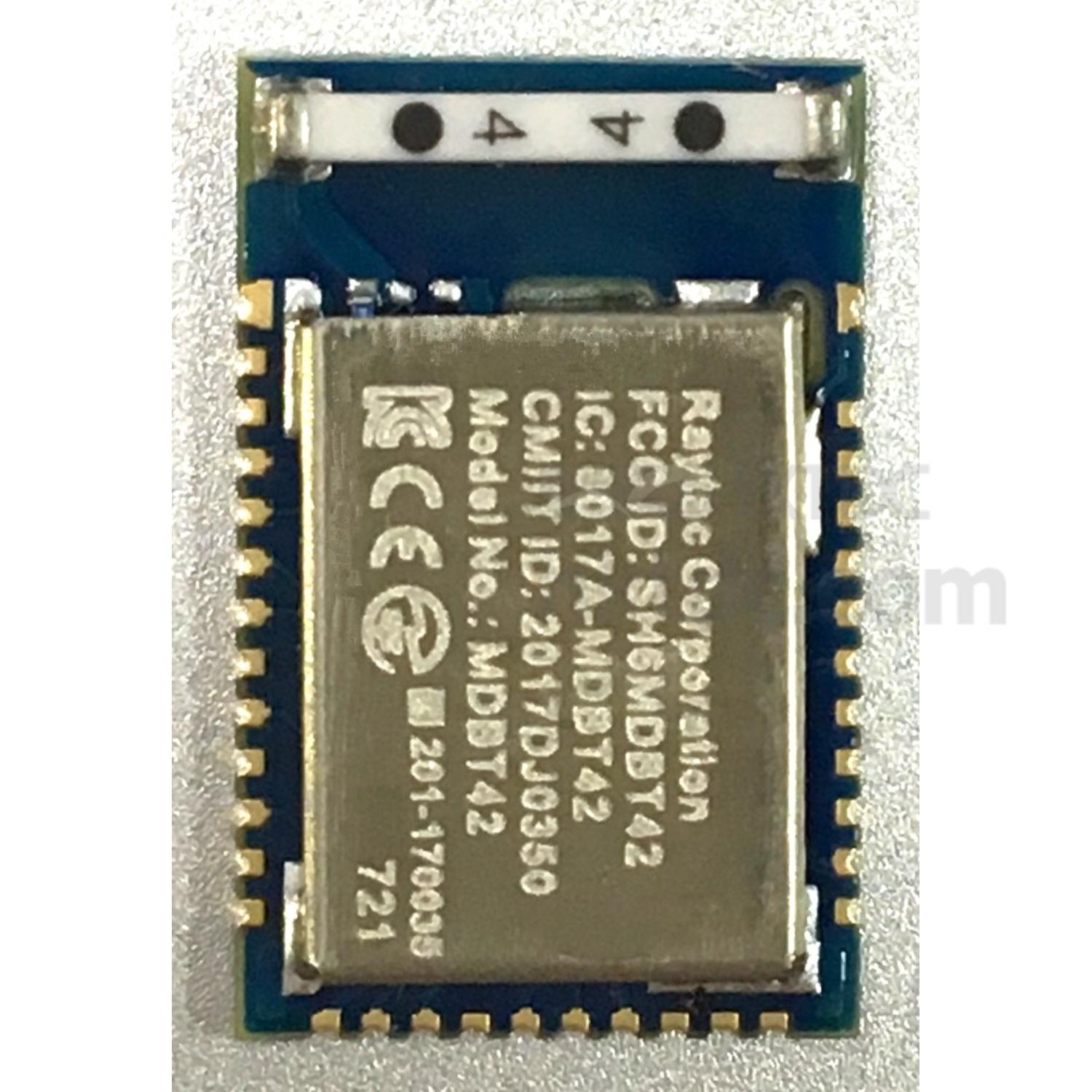

Nordic nRF52832 BLE Module
Share this page
Model No.:
MDBT42-512K
Brand:
Raytac
Colour:
Blue
Size:
13.8 x 8.8 x 1.9
Port:
Taiwan
Type of Payment:
T/T In advance
Minimum Order Quantity:
1
Description
Contact Supplier
Description
Raytac’s MDBT42 is a BT5 and BT4.2 stack (Bluetooth low energy or BLE) module designed based on Nordic nRF52832 SoC solution, which incorporates: GPIO, SPI, UART, I2C, I2S, PWM and ADC interfaces for connecting peripherals and sensors.

About the module:
  • 1. Dual Transmission mode of BLE & 2.4Ghz RF upon customer preference.

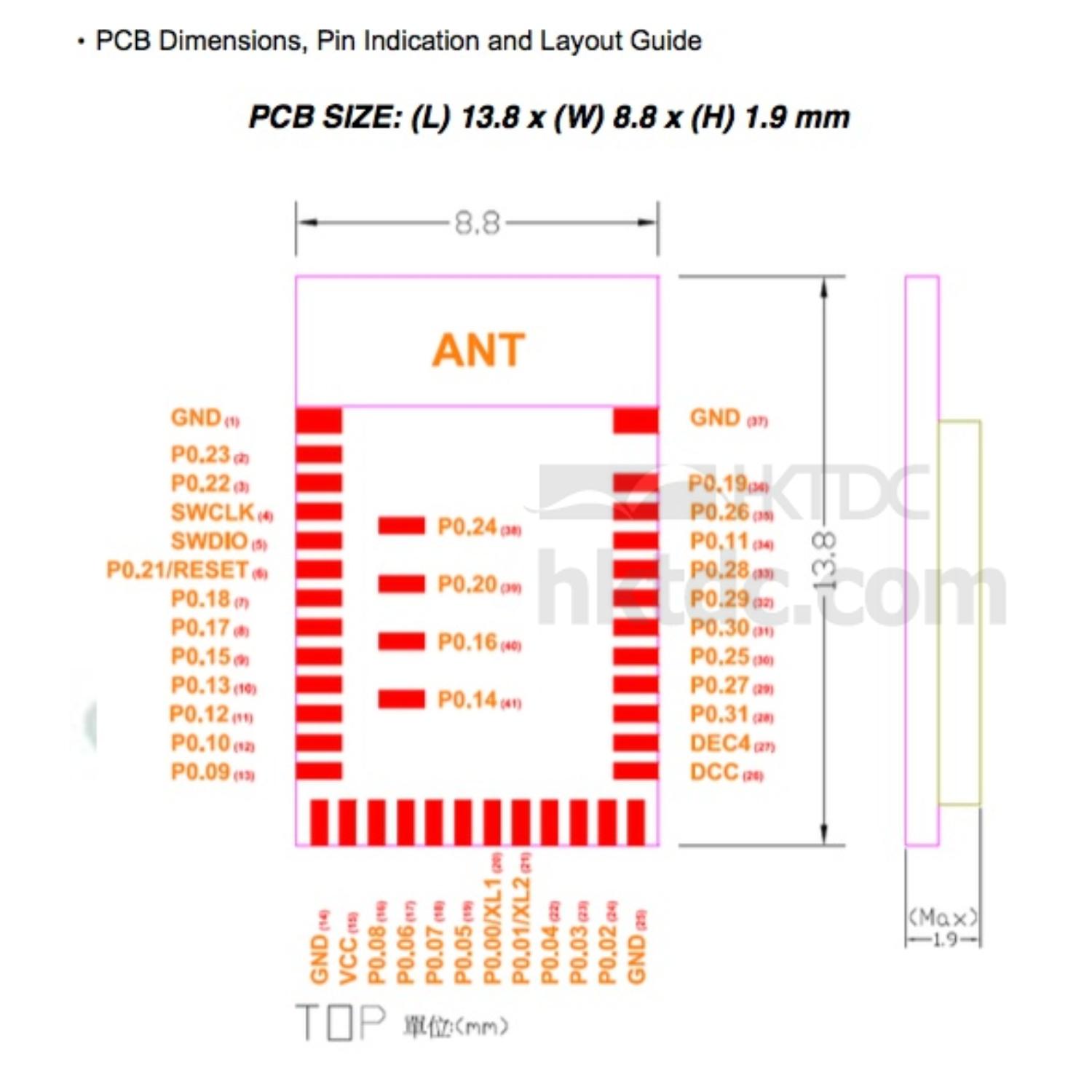

  • 2. Compact size with (L) 13.8 x (W) 8.8 x (H) 1.9 mm.
  • 3. Low power requirements, ultra-low peak, average and idle mode power consumption.
  • 4. Be compatible with a large installed base of mobile phones, tablets and computers.
  • 5. Fully coverage of BLE software stack
  • 6. BLE & RF transmission switching helps products fit all operation system and most hardware.
  • 7. BT5 & BT4.2 Bluetooth Specificaiton Certified
  • 8. FCC/IC/CE/Telec/KC/SRRC safety regulation certification granted.FeaturesMulti-protocol 2.4GHz radio
  • 32-bit ARM Cortex – M4F processor
  • 512KB flash programmed memory and 64KB RAM
  • Software stacks available as downloads
  • Application development independent from protocol stack
  • On-air compatible with nRF51, nRF24AP and nRF24L series
  • Programmable output power from +4dBm to -20dBm
  • RSSI
  • RAM mapped FIFOs using EasyDMA
  • Dynamic on-air payload length up to 256 bytes
  • Flexible and configurable 32 pin GPIO
  • Programmable peripheral interface - PPI
  • Simple ON / OFF global power mode
  • Full set of digital interface all with Easy DMA including:
  • 3 x Hardware SPI master ; 3 x Hardware SPI slave
  • 2 x two-wire master ; 2 x two-wire slave
  • 1 x UART (CTS / RTS)
  • PDM for digital microphone
  • I2S for audio
  • Quadrature demodulator
  • 12-bit / 200KSPS ADC
  • 128-bit AES ECB / CCM / AAR co-processor
  • Lowe cost external crystal 32MHz ± 40ppm for Bluetooth ; ± 50ppm for ANT Plus
  • Lowe power 32MHz crystal and RC oscillators
  • Wide supply voltage range 1.7V to 3.6V
  • On-chip DC/DC buck converter
  • Individual power management for all peripherals
  • Timer counter
  • 5 x 32-bit
  • 3 x 24-bit RTC
  • NFC-A tag interface for OOB pairing
