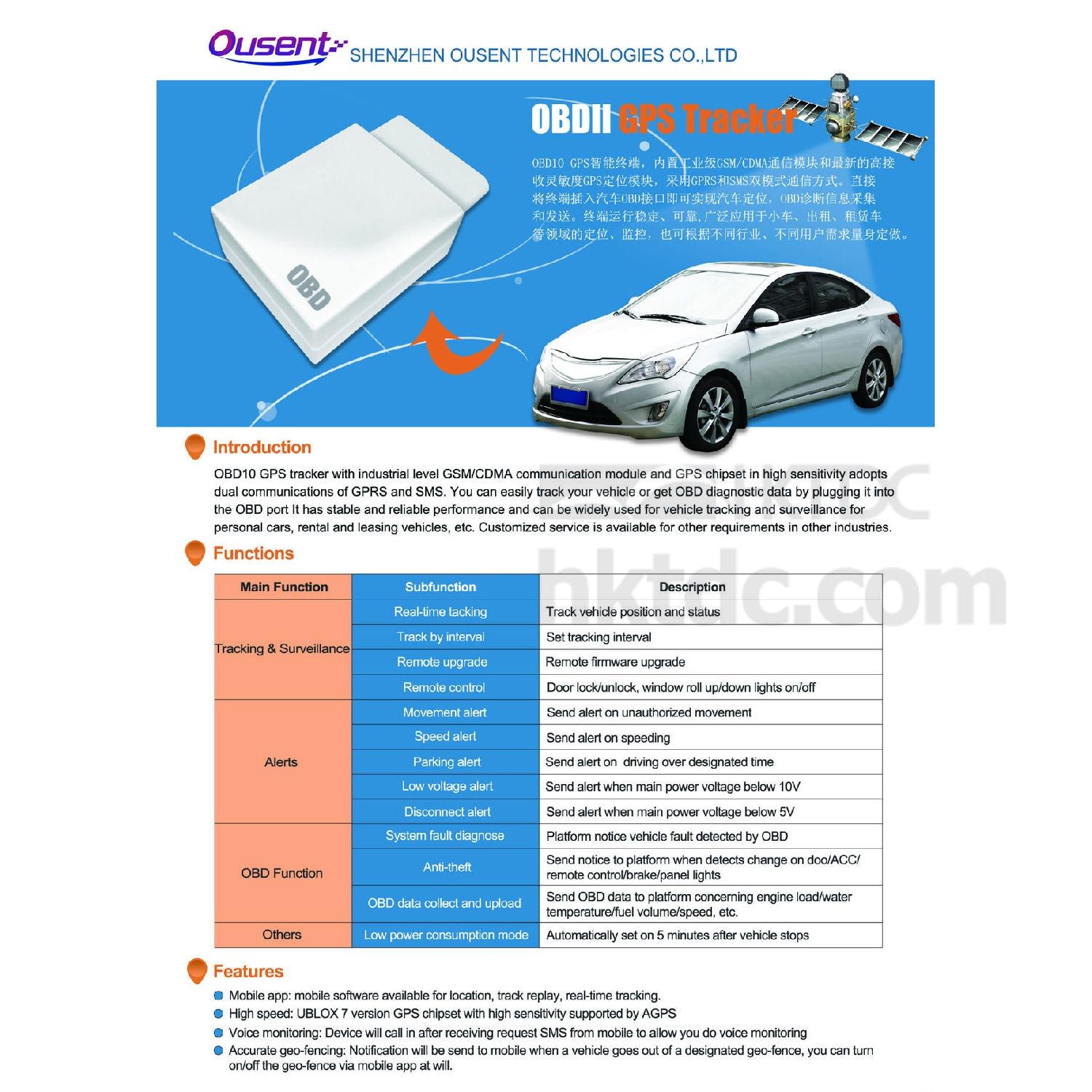

Introduction
OBD10 GPS tracker with industrial level GSM/CDMA communication module and GPS chipset in high sensitivity adopts dual communications of GPRS and SMS. You can easily track your vehicle or get OBD data by plugging it into the OBD port. It has stable and reliable performance and can be widely used for vehicle tracking and surveillance for personal cars, rental and leasing vehicles, etc. Customized service is available for other requirements in other industries.

Features:
Tracking & Surveillance

• Real-time tacking
• Track by time interval
• Remote firmware upgrade
• Voice monitoring
• Re-upload data at GPS blind area


Alerts

• Movement alert
• Speeding alert
• Overtime parking alert
• Low voltage alert
• Disconnect alert
• Geo-fence set &alert
• Collision/vibration alert

OBD Functions

• System fault diagnose
• Remotely cut off fuel/engine(anti-theft)
• OBD data collect and upload

Specifications

• Operating Current         90mA~160mA
• GSM Band                  GSM850/900/1800/1900 MHz
• Communication protocol    UDP/TCP(Customizable)
• GPS Module                Newest GPS Ublox7 Chipset & compass chip dual module
• GPS Sensitivity           -159dBm
• GPS Frequency             L1, 1575.42 MHz
• Location Accuracy         10 Meters, 2D RMS
• Speed Accuracy            Average 0.1 seconds
• Hot Start                 Average 0.1 seconds
• Warm Start                Average 1 sec
• Cold Start                Average 38 seconds
• Working Temperature       -20°～ 70° C
• Humidity                  5% ～ 95%
• Terminal Size             52mm x 42mm x 28mm
• Built-in Battery          3.7V 110mA (Polymer)

Highlights

• Plug and play
• High GPS sensitivity
• SMS/GPRS dual communication
• Low power consumption
• OBD data collect and upload
• Fast and accurate tracking
