OEM 5MP Camera Module OV5640 Sensor DVP Interface For Code Scan Recognition

Production Lead Time:

7 day(s)

Shipping Method:

DHL/FedEx

Customised:

Yes

Model No.:

SNS-51603-v1.0

Resolution:

2048×1080

Size:

Customizable

Brand:

Sinoseen

Description

Contact Supplier

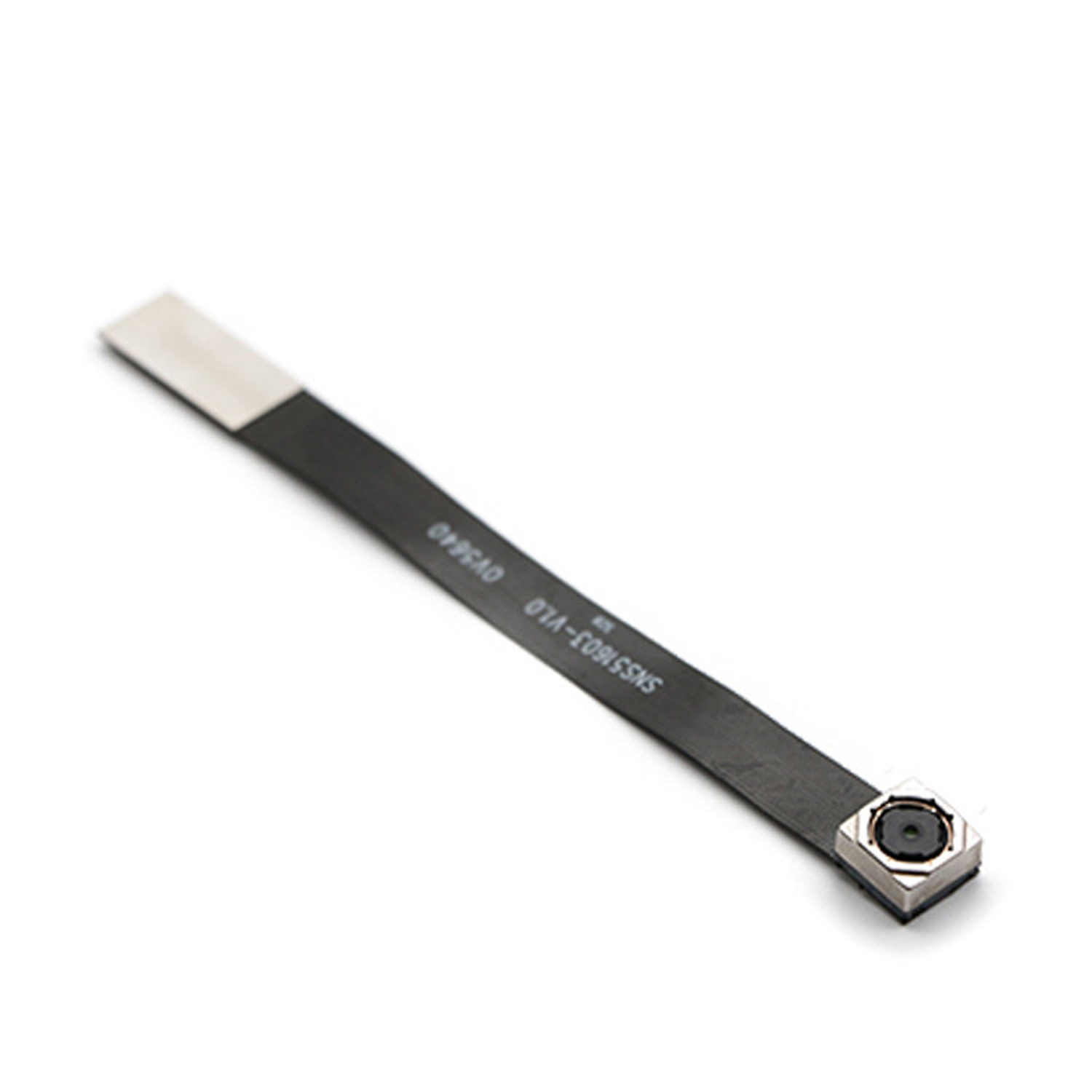

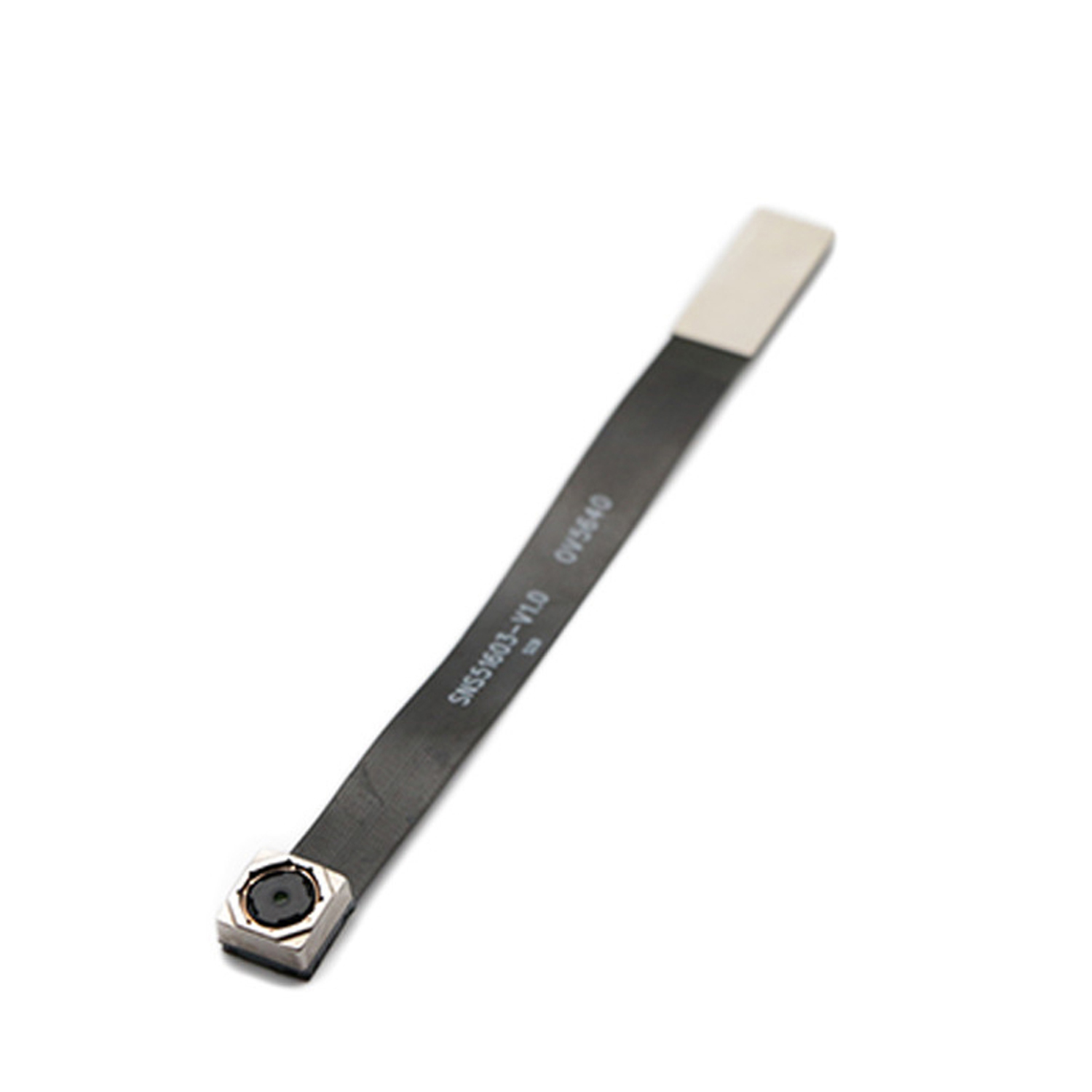

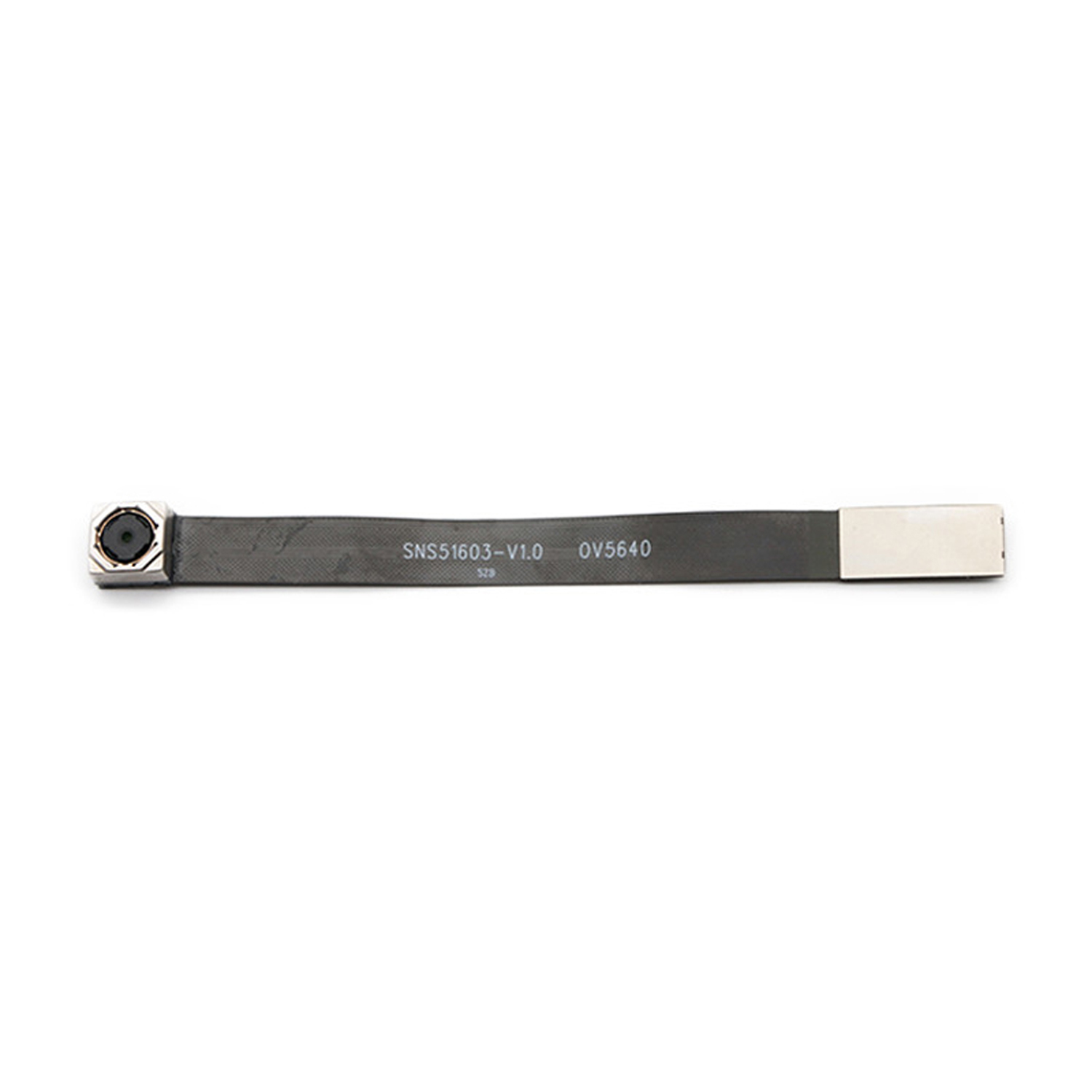

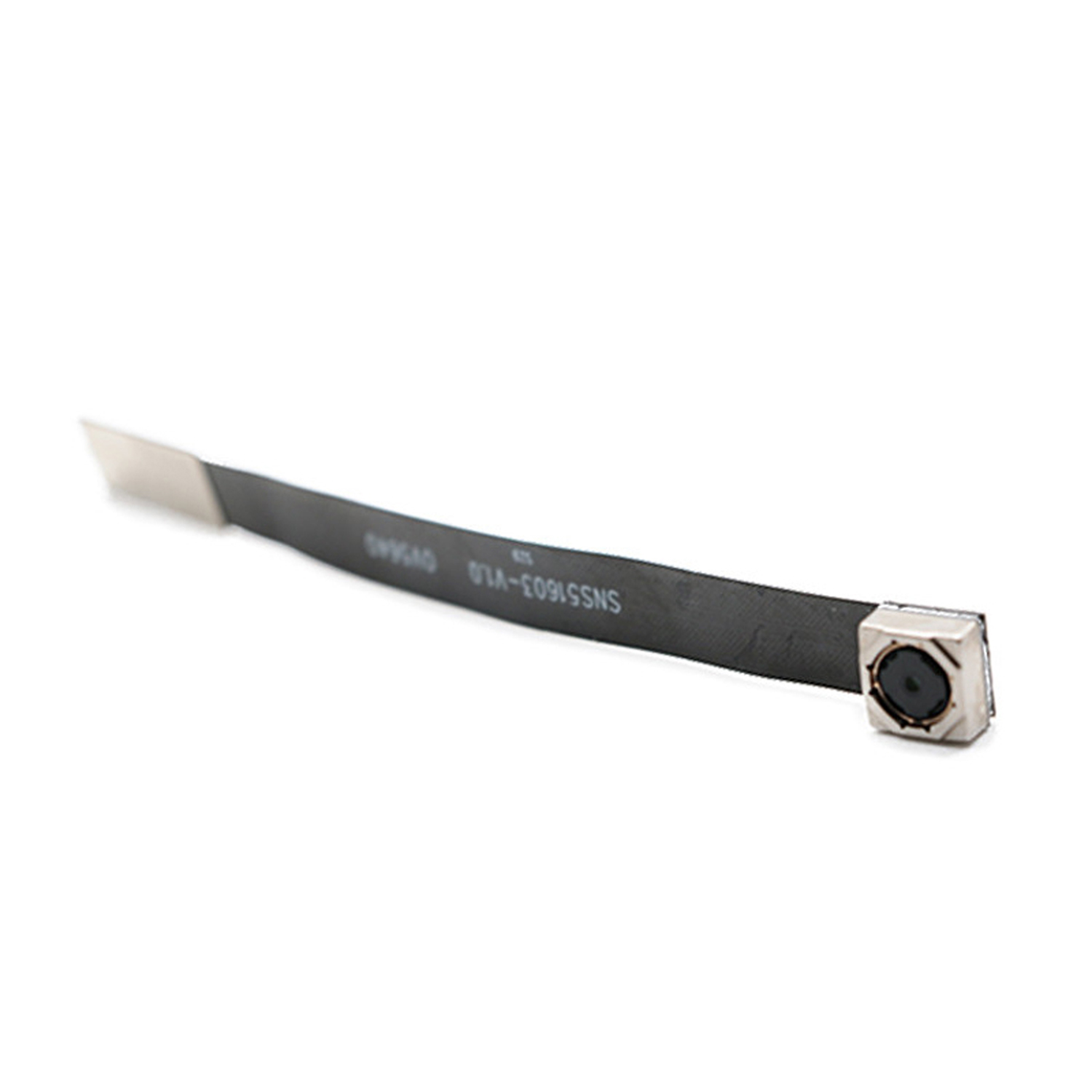

This is our new custom ultra-thin and ultra-small structure 5MP camera module. It uses DVP interface and adopts ov5640 high-definition image sensor. The function of low power consumption makes its picture quality more stable, power consumption is greatly reduced, and the number of frames per second It can achieve 30 frames per second full resolution 1080p HD video and 60 frames per second to capture 720p video. And it can be used in scenarios such as tablets, code scanning, identification, and all-in-one machines.

Module No	SNS-51603-v1.0
Pixel Size	1.4µm x 1.4µm
Effective Pixels	2592 (H) x 1944 (V)
Video output	YUV2 MJPG
Active Array Size Video Rate	1080p@30FPS,720P@60FPS
Image Sensor	1/4’’ Omnivision OV5640 CMOS
SNR max	TBDdB
Dynamic range	TBDdB
AEC	Support
AEB	Support
AGC	Support
Interface	DVP
Operating temperature	0～60℃
Storage temperature	-20～70℃
Cable length	Defualt
