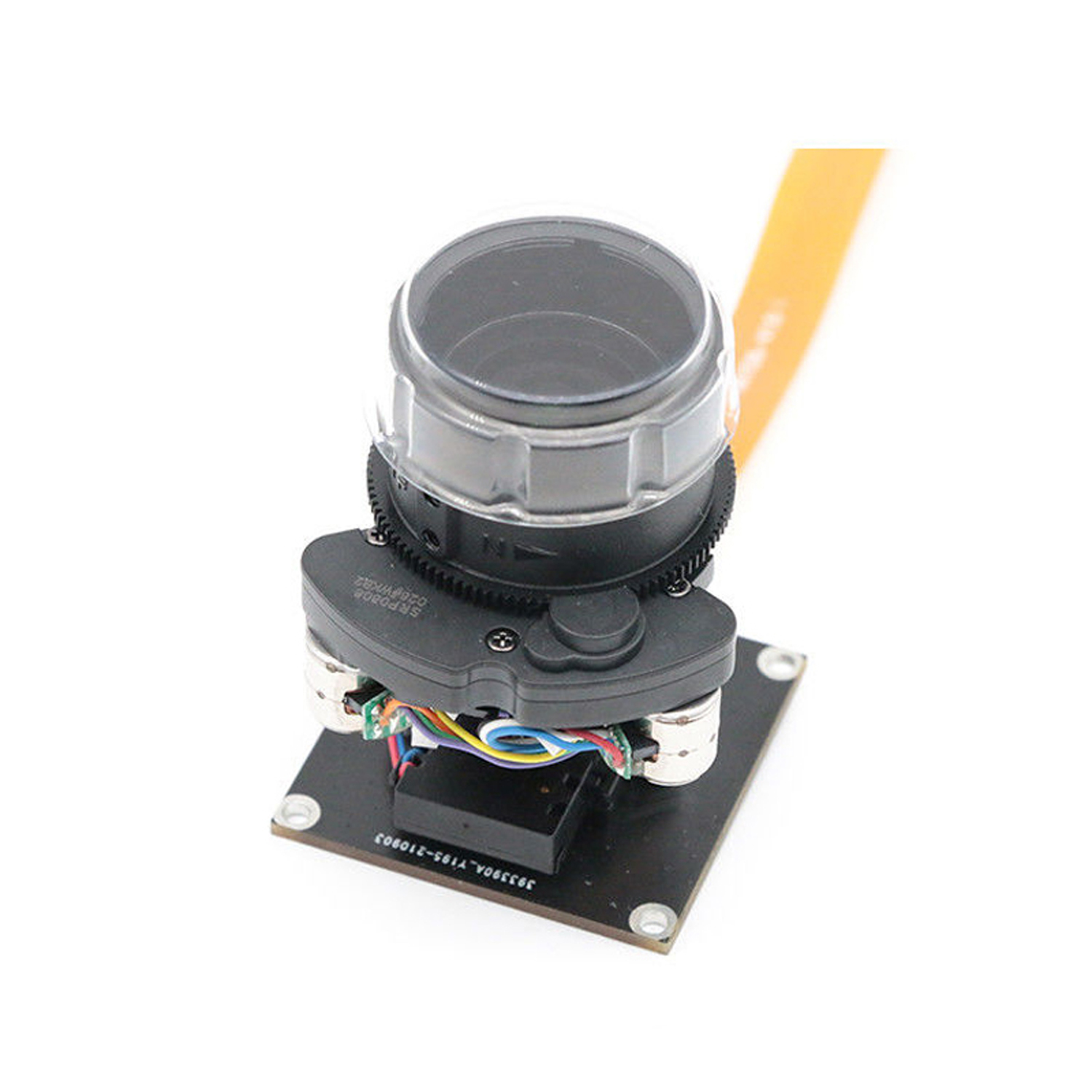

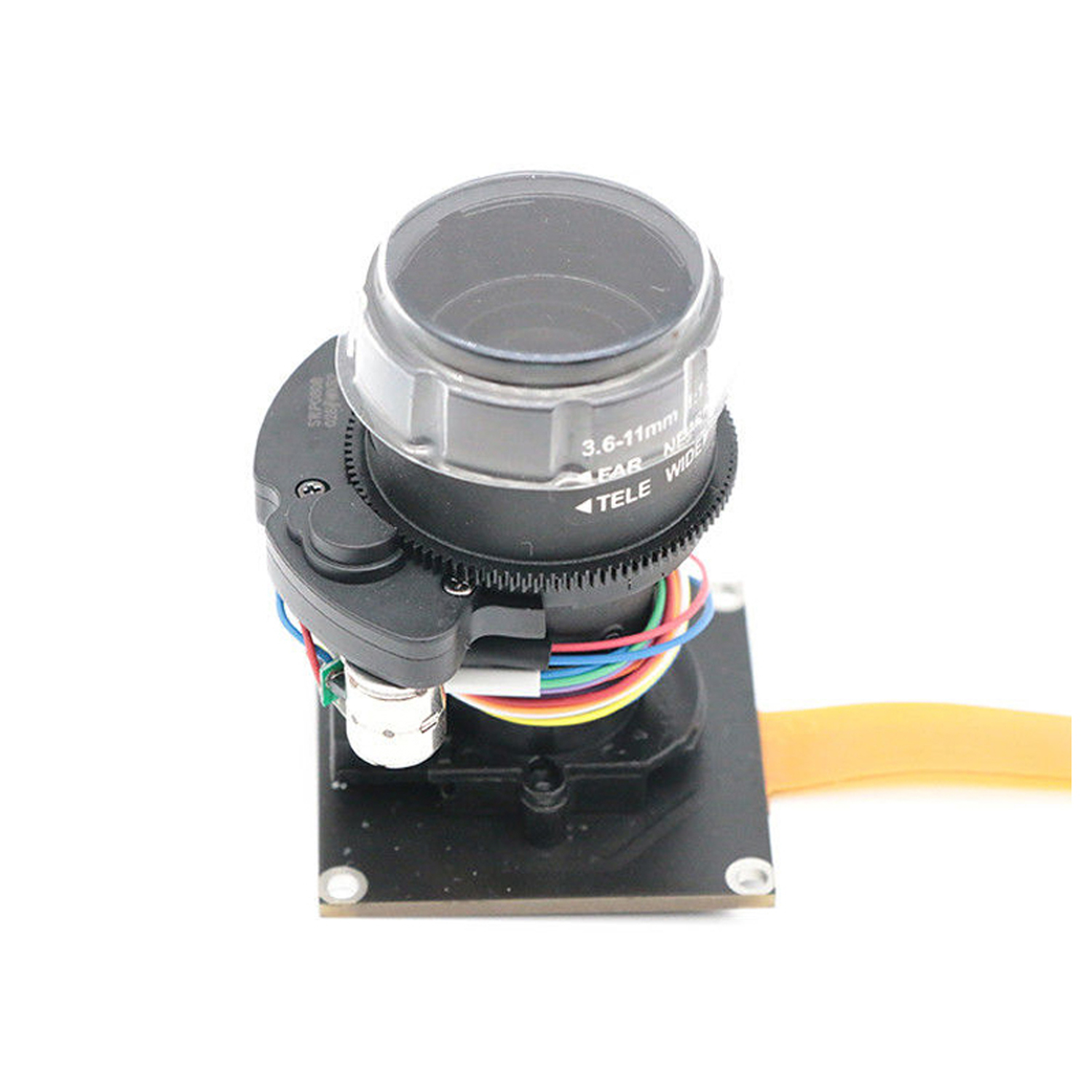

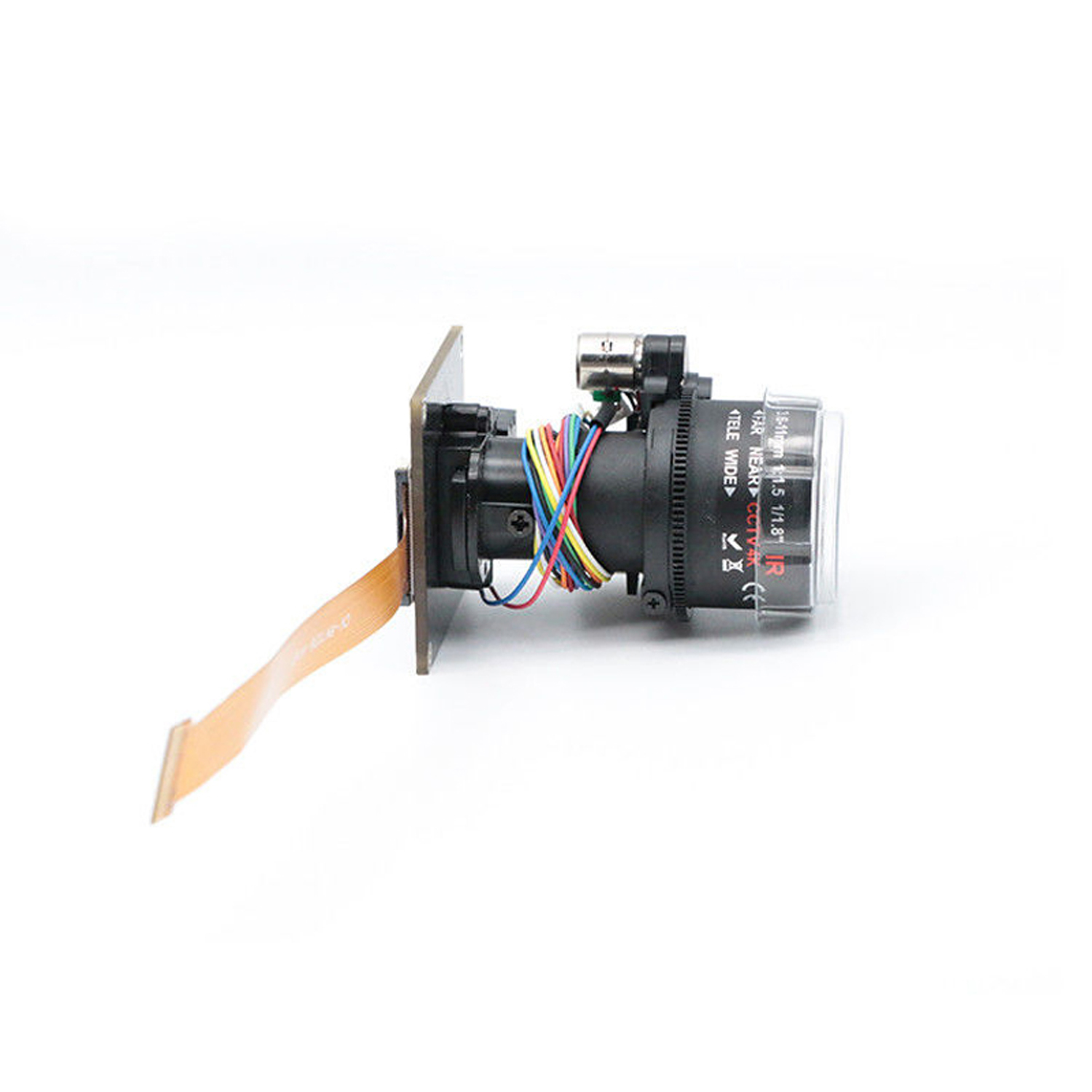

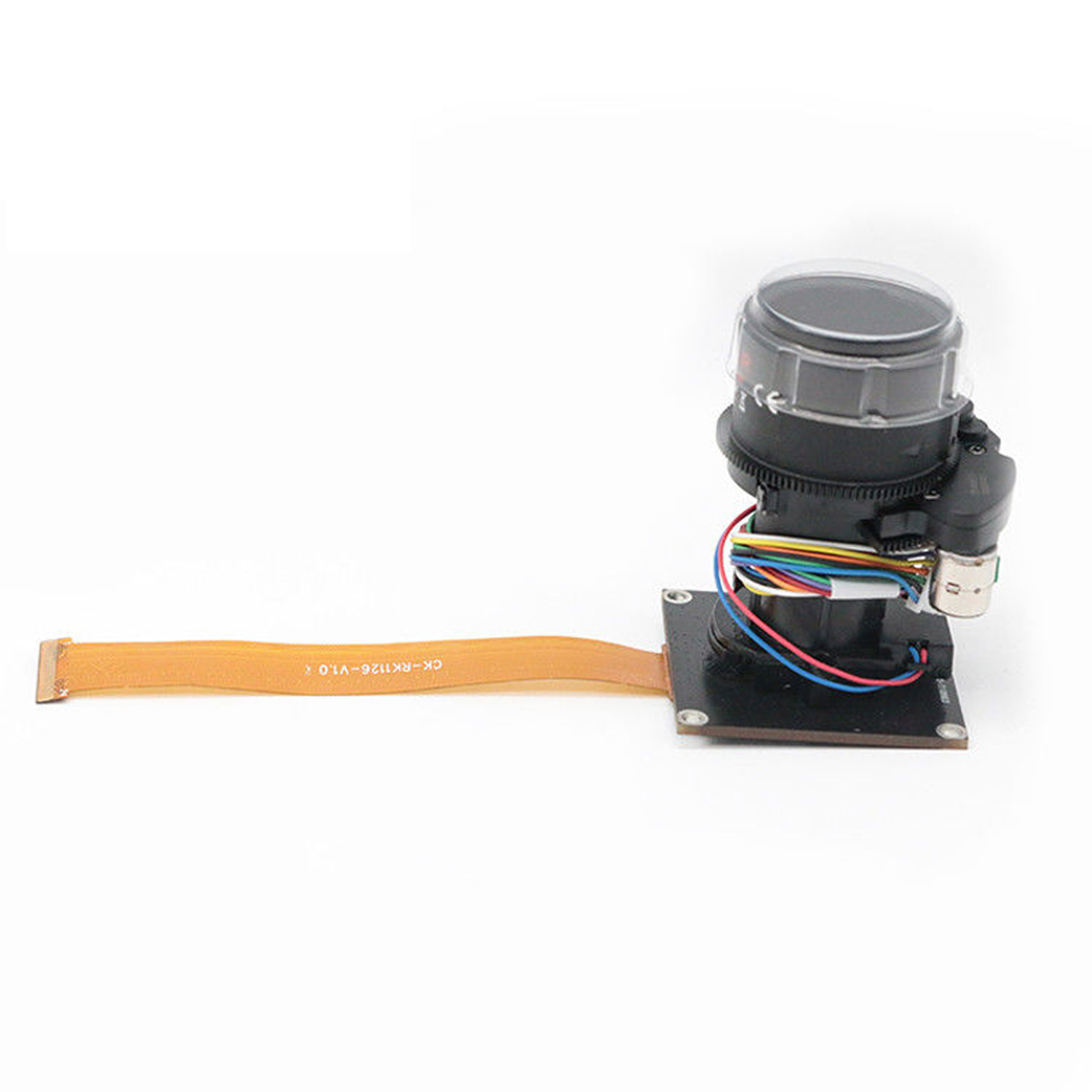

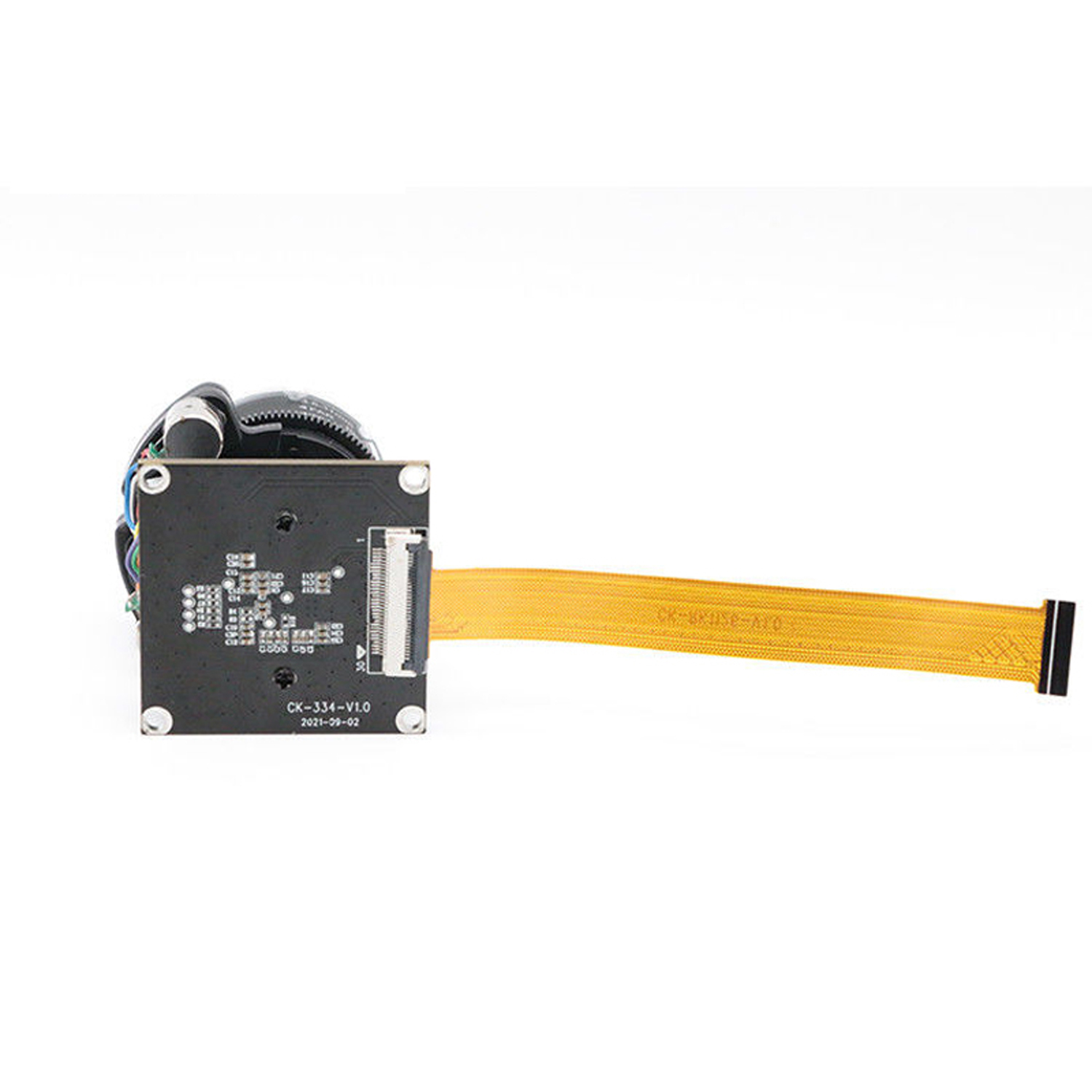

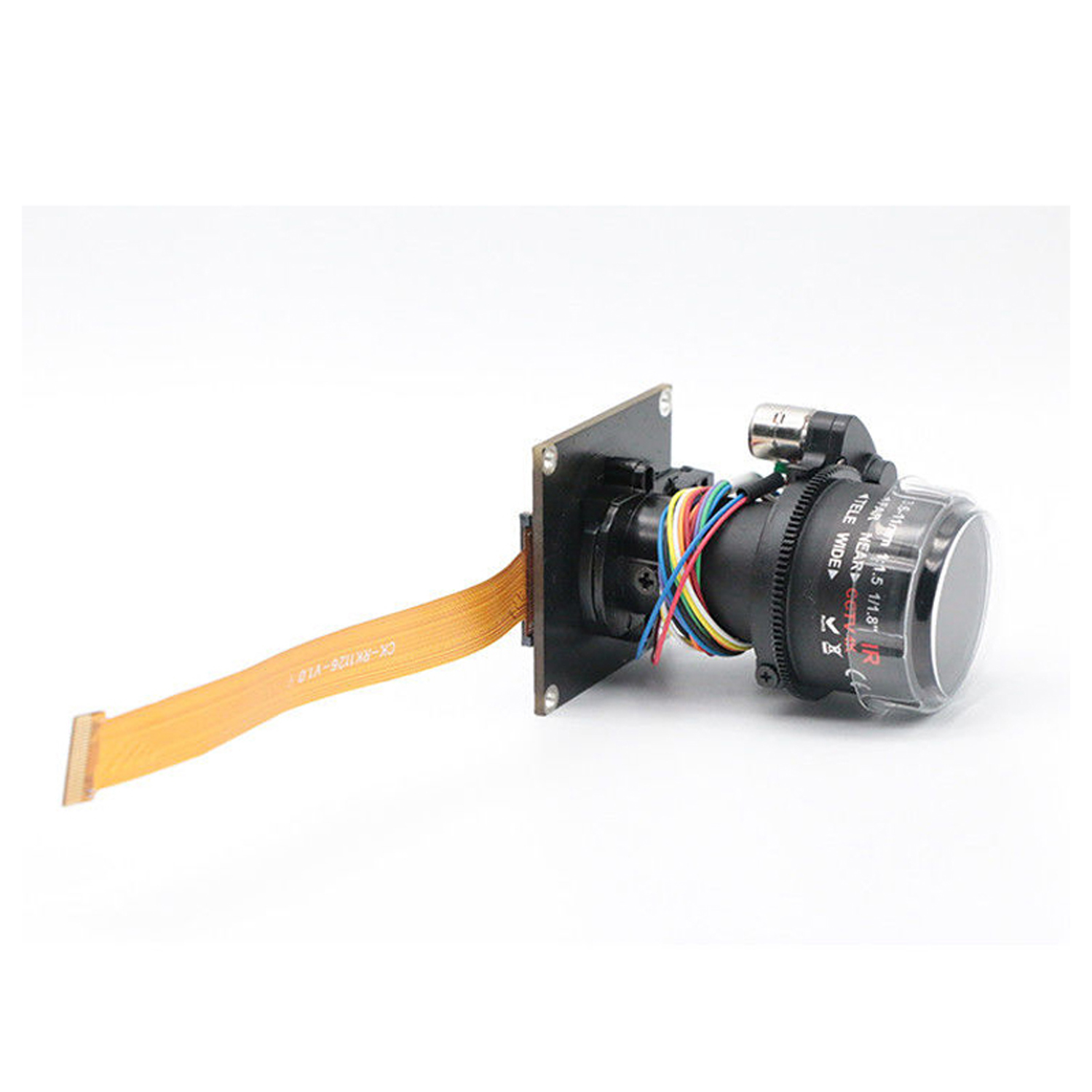

OEM 8MP Optical Zoom 4K mipi Camera Module With IMX415 Sensor
Production Lead Time:
7 day(s)
Shipping Method:
DHL/FedEx
Customised:
Yes
Model No.:
SNS-8MP-IMX415-STY
Resolution:
3840×2160
Size:
Customizable
Brand:
Sinoseen
Description
Contact Supplier
Description
4K MIPI Camera Module
Features:
Size: 1/2.8
The maximum resolution is 3840*2160
Support optical zoom 4k high-definition pixels, can shoot clearer images in low light environments.
With high dynamic function, it can perfectly restore the authenticity of the picture
Application: HD photography, video surveillance, video conference all-in-one, video teaching, Internet of Things, aerial drones, QR code recognition, etc.
Model No | SNS-8MP-IMX415-STY |
Sensor | 1/2.8’’ SONY IMX415 CMOS |
Pixel | 8 Mega Pixel |
Most effective pixels | 3840(H) x 2160(V) |
Pixel Size | 1.45µm x 1.45µm |
Image area | 3864um (H) x 2196um (V) |
Compression format | MJPEG / YUV2 (YUYV) |
Resolution & Frame rate | See above |
Shutter Type | Electronic rolling shutter |
Focus type | Fixed focus |
Chroma | Color, RGB |
Clock Frequency | 6 to 72 MHz |
Microphones | Built-in |
Interface type | USB2.0 |
Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure |
Lens | Focal length: 3.6mm |
Lens construction: 5E+IR | |
D FOV: 100 degree | |
Thread Size: M12*P0.5 | |
Audio frequency | Optional |
Power supply | USB BUS POWER |
Operating Voltage | DC 5V |
Operating Current | 260mA |
Main chip | DSP/SENSOR/FLASH |
Auto Exposure Control (AEC) | Support |
Auto White Balance (AEB) | Support |
Auto Gain Control (AGC) | Support |
Dimension | Customizable |
Storage temperature | -20°C to 70°C |
Operating temperature | 0°C to 60°C |
USB cable length | Default |
Support OS | WinXP/Vista/Win7/Win8/Win10 |
*8MP high resolution: supports 8 million pixels, providing ultra-high-definition images.
*4K ultra-high-definition video: supports 4K resolution video recording to meet high-quality image needs.
*Optical zoom: equipped with optical zoom function to achieve clear shooting at a long distance.
*High-performance sensor: uses IMX415 sensor, with excellent low-light performance and color reproduction capabilities.
