OSC2520 SMD Crystal Oscillator 1MHz-170MHz CMOS Output

Brand:

JGHC晶光华

Customised:

Yes

Model No.:

O22

Size:

2.5x2.0x0.8mm

Frequency:

1-170MHz

Voltage:

1.8-5.0V or specif

Frequency Difference:

±20ppm or specif

Description

Contact Supplier

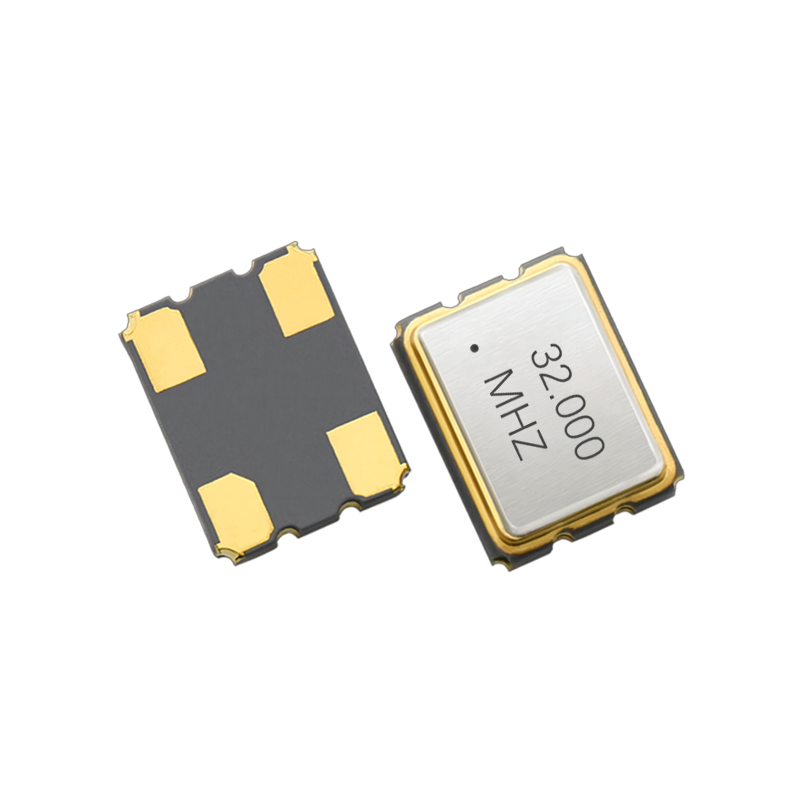

SMD Crystal Oscillators CMOS Output 2.5 x 2.0 mm O22 Series

Features

Extremely small SMD seam sealed clock oscillator unit.

Application for smart phone, sip module, variety of compact portable consumer products.

Tri-state function available.

High reliable environmental performance.

RoHS Compliant / Pb Free.

Crystals specifications

ITEMS/TYPE	O22
Frequency Range	1~160MHz
Output Type	CMOS
Output Load	15 pF , or specify
Oscillation Mode	Fundamental / 3rd Overtone
Supply Voltage	1.8V~5.0V, or specify
Frequency Stability	± 20 ppm , or specify
Operating Temperature Range	-40~+85 ℃ , or specify
Storage Temperature Range	-55~+125 ℃
Voltage Vol ( Max. )/Voltage Voh ( Min. )	VOH=90%Vdd / VOL+10%Vdd
Rise ( Tr ) / Fall ( Tf ) Time	8 ns Max.
Current Consumption	20 mA Max.
Symmetry	40 ~ 60 %
Start-up Time	5 ms Max.
Phase Jitter ( 12 KHz ~ 20 MHz )	1 ps Max.
Aging ( at 25℃)	± 3 ppm / year Max.
