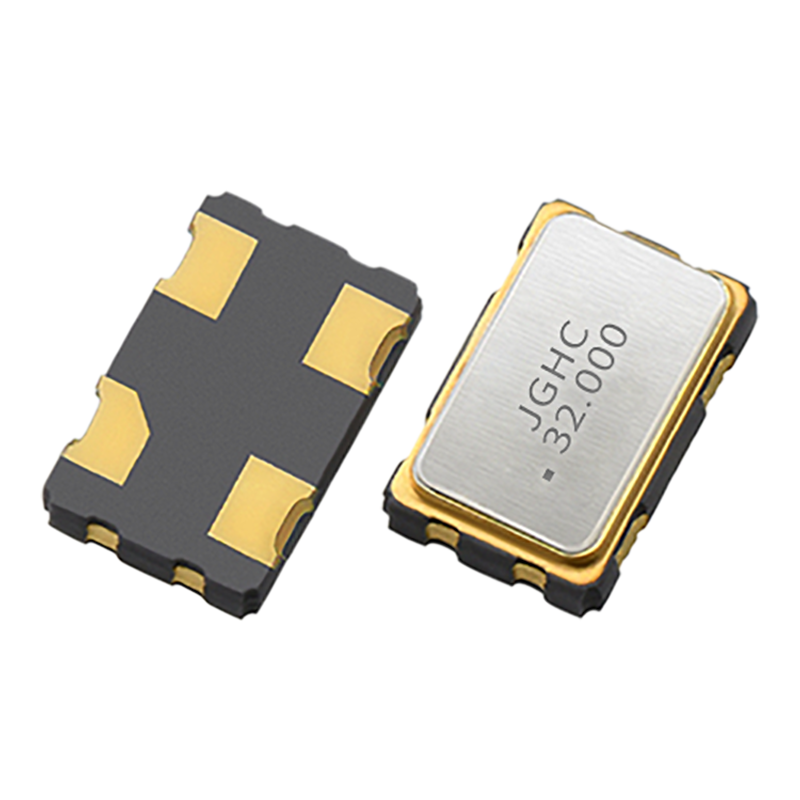

SMD Crystal Oscillators CMOS Output 5.0 x 3.2 x 1.2 mm O53 Series

Features

Small SMD seam sealed clock crystal oscillator units.

High precision characteristic covering up to wide frequency range.

Designed for automatic mounting and reflow soldering.

Tri-State function available.

Supply voltage range : 1.8V ~ 5V.

High stability, low jitter, low power consumption.

Main application : wireless communication, PC, and LCDM.

RoHS Compliant / Pb Free.

Crystals specifications

ITEMS/TYPE	O53
Frequency Range	1~170MHz
Output Type	CMOS
Output Load	15pF, 30pF, or specify
Oscillation Mode	Fundamental / 3rd Overtone
Supply Voltage	1.8V~5.0V, or specify
Frequency Stability	± 20 ppm , or specify
Operating Temperature Range	-40~+85 ℃ , or specify
Storage Temperature Range	-55~+125 ℃
Voltage Vol ( Max. )/Voltage Voh ( Min. )	VOH=90%Vdd / VOL+10%Vdd
Rise ( Tr ) / Fall ( Tf ) Time	8ns Max.
Current Consumption	20mA Max.
Symmetry	45~55%
Start-up Time	5ms Max.
Phase Jitter( 12KHz~20MHz )	1ps Max.
Aging ( at 25℃)	± 3 ppm / year Max.
