OSRAM Chips High Lumen LED Spotlight, LED Flood Light

Production Lead Time:

10 day(s)

Model No.:

ZHFL-30A, ZHFL-50A, ZHFL-70A

Brand:

Zhihai

Colour:

Gray

Size:

308 x 230 x 162mm

Port:

Tianjin, Beijing

Type of Payment:

T/T

Minimum Order Quantity:

5 piece(s)

Protection Level:

IP65

Voltage(V):

80-315Vac

Certification:

CE, RoHS

Light Source:

LED Bulb

Body Material:

Aluminum, Glass

Style:

Modern

Applicable:

Buildings Wall, Town Square

Description

Contact Supplier

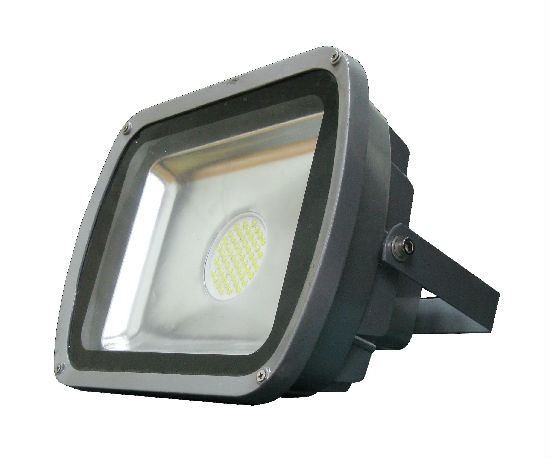

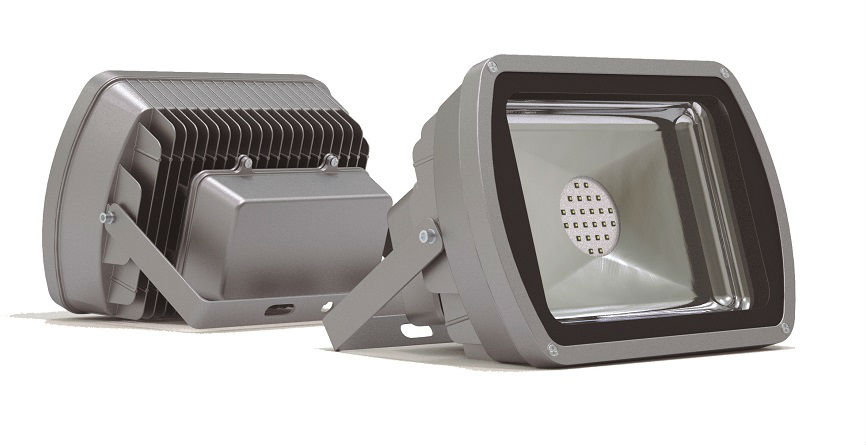

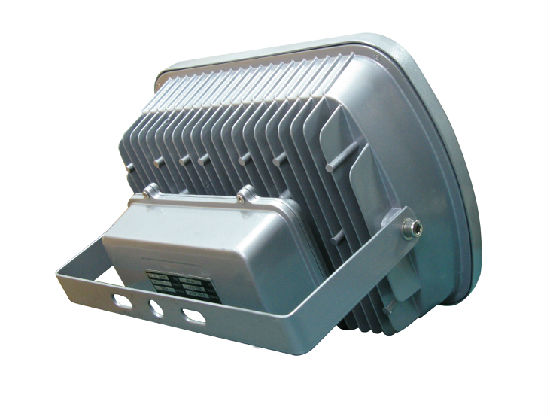

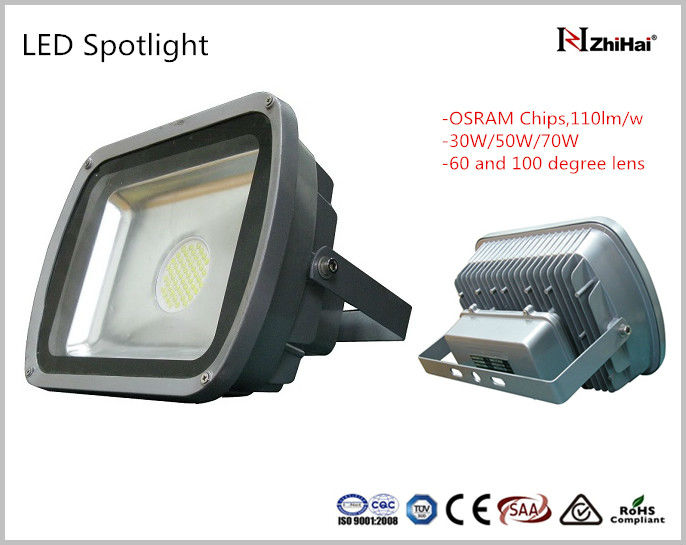

Displayed is an LED spotlight that houses high quality LED chips for bright illumination. With built-in surge and thermal protection, this spotlight is safe and long-lasting. This energy saving LED spotlight is ideal for outdoor venues.

Features & characteristics:

Zhihai® LED spotlight.
3/5-year warranty.
Osram or Cree LED chips.
110 lm/W system efficiency.
80% lumen maintenance of over 50,000 hours.
Built-in surge protection.
Built-in thermal protection.
Maintenance free.
Mercury free.
No UV or IR.
Universal input without additional adapter.
80-315V AC or 80-400V DC.
Instant start and flicker free.
High uniformity and color rendering.

Parameters:

Model: ZHFL-30A, ZHFL-50A and ZHFL-70A.
Power consumption: LEDs: 25W, 45W and 63W.
Driver: 5W, 5W and 7W.
Total: 30W, 50W and 70W.
Initial lumen flux (6,000K): 3,300lm, 5,500lm and 7,700lm.
Replaces HID lamps: 50-100W, 100-150W and 150-200W.
Net weight: 4kg (8.8lb).
Color temperature: 4000K (warm white) or 6000K (cool white).
Color rendering: ≥Ra75.
Working life: ≥50,000hr.
Housing material: aluminum.
IP class: IP65 (upgradeable to IP67).
Insulation class: class I (upgradeable to class II).
Working temperature: -40C-60C or -40F-140F.
Working humidity: 10%-95%.
AC input: 80-315V AC.
DC input: 80-400V DC (12V DC, 24V DC and other inputs are available upon request).
THD: <10%.
Power factor: ≥0.98.
Warranty: LED module for 5 years, driver for 5 years and housing for 5 years.
Beam angle: 60 and 100 degree options.

Typical application:

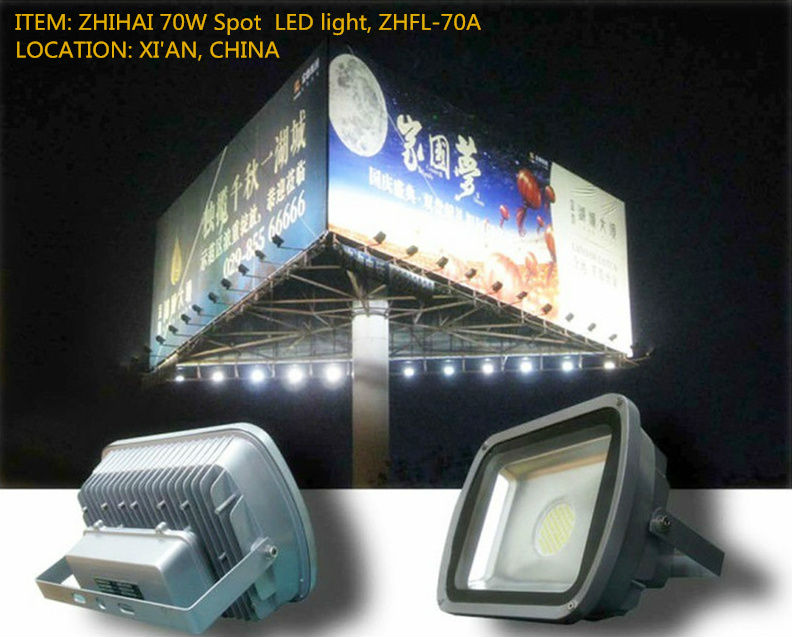

Floodlighting, architecture, plaza, stadium and sports field, tunnel, park, yard, plant area, garden, parking area, billboard, warehouse, show room, cold storage, etc.
