Open Frame 10 Points Touch LCD Monitor
Share this page
Production Lead Time:
3 day(s)
Model No.:
MTR156FD01A-V1
Brand:
MICROTECH
Colour:
Black, White
Size:
15.6 inch(es)
Port:
Hong Kong
Minimum Order Quantity:
1 piece
Package:
Yes
Customised:
Yes
Type:
Capacitive
Interface Type:
USB
Screen Size (Inch):
15.6
Description
Contact Supplier
Description
8" to 22" Customized Sizes Open Frame 10 Points Touch LCD Monitor
Touch screen parameters 触摸屏参数
  • Touch screen type: Projected capacitive touch 触摸屏类型: 投射式电容触摸屏
  • Response time: <3ms 响应时间 : <3ms
  • Touch points: Standard 10 touch points 触摸点数:10点触摸
  • Touch effective recognition > 1.5mm (Opaque objects such as fingers and touch pens) 触摸有效识别: >1.5mm (手指、触摸笔等不透明物体)
  • Scanning frequency: 200Hz 扫描频率: 200Hz
  • Scanning accuracy: 4096 x 4096 扫描精度: 4096×4096
  • Interface: Full Speed USB 2.0, 3.0 通信方式: 全速USB 2.0,3.0
  • Theoretical number of hits: More than 50 million times 理论点击次数: 5000万次以上
  • Working current / voltage: 180Ma/DC +5V±5% 工作电流/电压 180Ma/DC +5V±5%
  • Anti-light interference: Normal use when the intensity of sunlight, incandescent lamp and fluorescent lamp changes 抗光干扰: 阳光、白炽灯、日光灯等强光变化时正常使用
  • Touch data output mode: Coordinate output 触摸数据输出方式: 坐标输出
  • Surface hardness: Physical toughened Morse 7 explosion proof glass 表面硬度: 物理钢化莫氏7级防爆玻璃
  • Operating System compatibility 操作系统兼容性: Windows 7 / 8 / 10 / XP / Linux / MAC OS / Android
  • Drive: Drive free, plug and play 驱动:免驱,即插即用
Display parameters 显示屏参数
  • Screen Type: A Gauge LCD 屏类型: A级LCD
  • Backlight: LED 背光: LED
  • Resolution: 1920 x 1080, 1366 x 768, 1280x1024 分辨率 : 1920 x 1080, 1366 x 768, 1280 x 1024
  • Luminance: 350 亮度: 350
  • Contrast ratio: ≥5000:1 对比度≥5000:1
  • Response time: <5.5ms 响应时间 : <5.5ms
  • Total colors: 16.7M 色彩总数: 16.7M
  • Channel low voltage differential signal: 8-bit 2LVD 通道低压差分信号: 8-bit 2LVDS
  • Refresh frequency: 60Hz 刷新频率: 60Hz
  • Viewing angle: Horizontal78°,Vertical78° 可视角度: 水平l78°, 垂直l78°
  • LCD life: >50000 hours 使用寿命: >50000小时
Display parameters (only used as part of touch display) 显示参数 (仅作为触摸显示器部分使用)

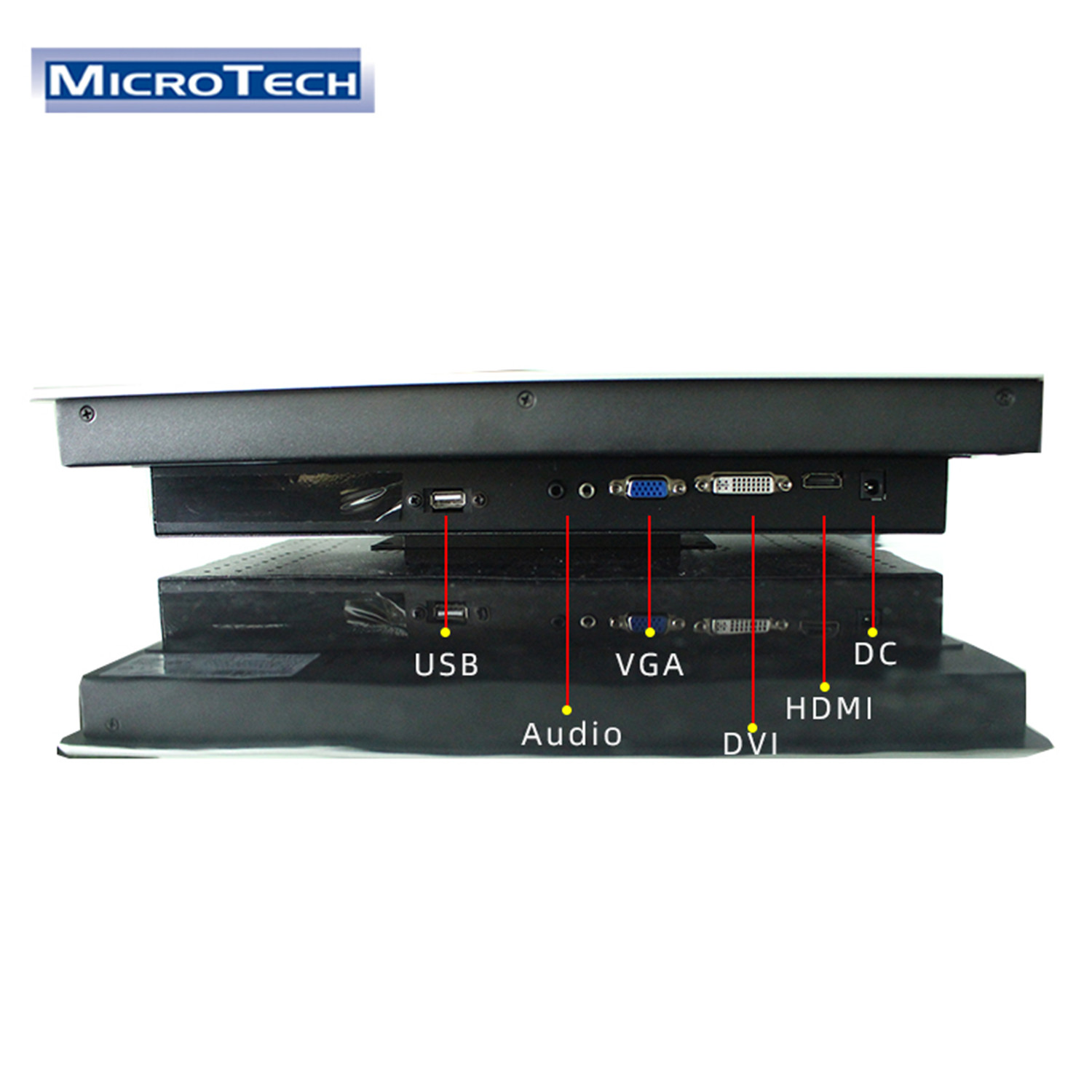

  • Power interface: 12V 电源接口: 12V
  • VGA Input: 15 pins (D-Sub) x 1 VGA输入: 15针 x 1
  • HD multimedia interface (HDMI) x1 高清多媒体接口 x 1
  • DVI Interface x 1 DVI接口 x 1
  • PC-Audio Input x 1 PC-AUDIO输入 x 1
  • Headphone output x 1 耳机输出 x 1
  • Sound output power 2 x 10W 声音输出功率 2 x 10W
  • Number of speakers x 2 扬声器数 x 2
  • Terms of Payment: Negotiable
