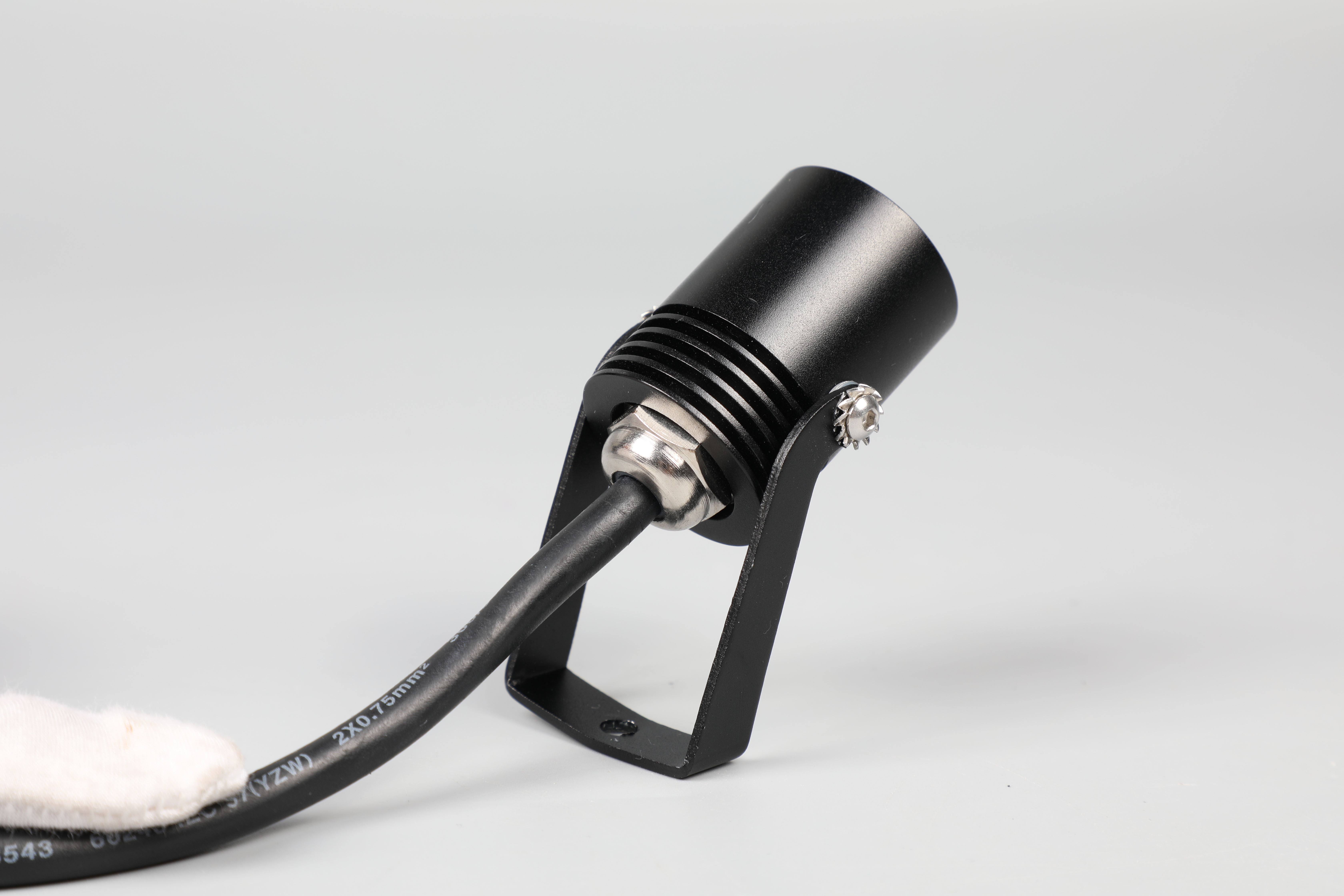

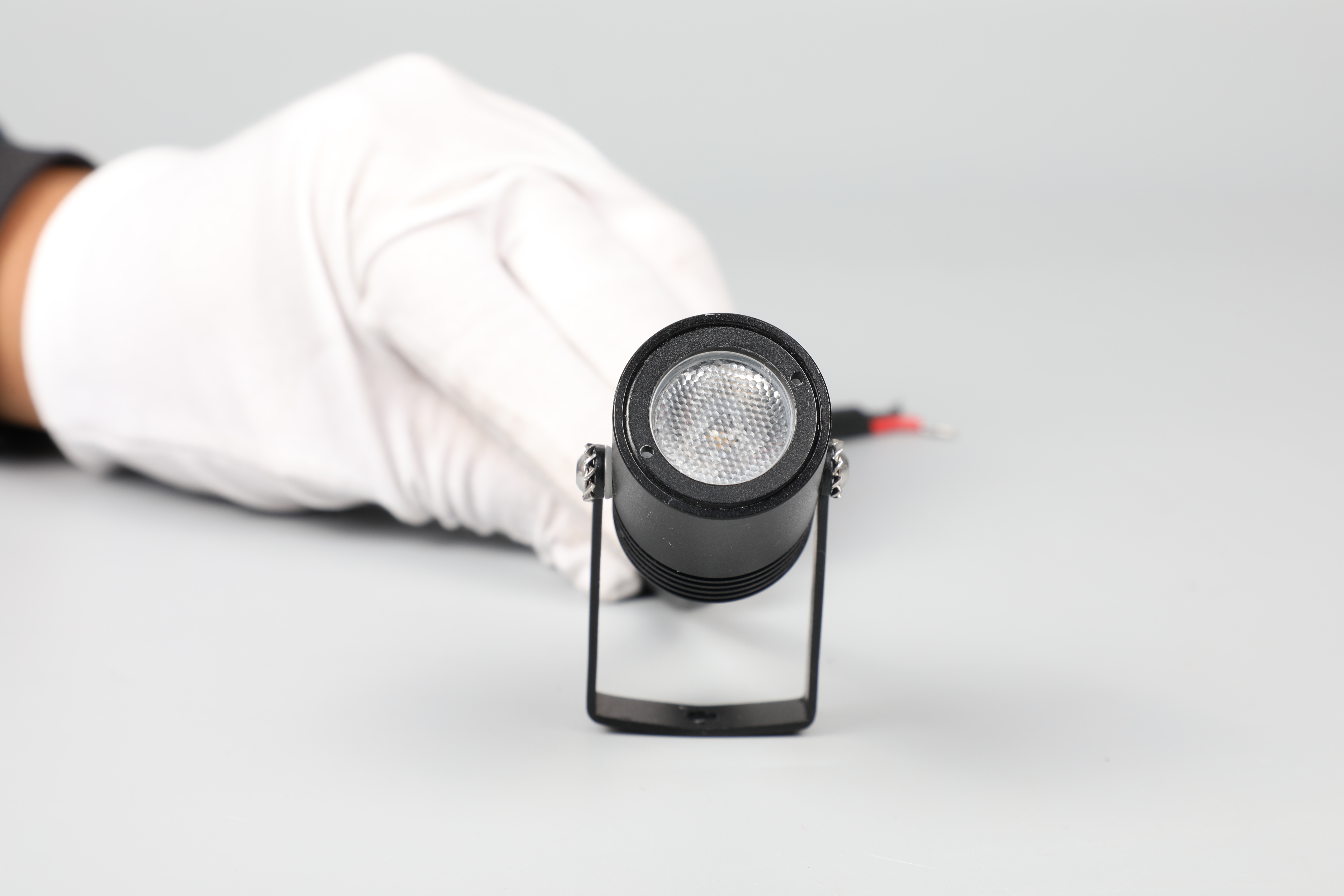

Outdoor Lighting IP67 3W Landscape Garden LED lawn Spike Light

US $7.00 - US $21.00

Production Lead Time:

15 day(s)

Shipping Method:

by sea or air

Brand:

PLAYLITE

Is Dimmable:

Model No.:

UL-1004-0300-A

Weight:

0.5kg

Description

Contact Supplier

.1pcs 3W LED with high lumen and beautiful light output.
.20~25 um thickness passivated anti-corrosion protection film that won't be fading even after 2 to 3 years
.15°,25°,30°,45°,60° beam angle as options
.High luminous flux output
.IP67 waterproof
.3 years warranty
.8~10 years professional sales and technicians to serve you

General Data
Item No.	UL-1004-0300-A
Power	3Watts
LED type	1pcs 3W LED
Luminous flux	190lm
CCT	2700K,3000K,4000K,6000K
CRI	80+
Beam angle	15°,25°,30°,45°,60°
Dimension	28*40mm (Diameter x Height )
Cut out	/
Net weight	0.097 kgs
Warranty	3 years
Certifications	CE, RoHS
Electrical Data
Input voltage	DC12-24V
Insulation class	Class III
Cable	1PC rubber cable 1M H05RN-F 3x1mm square
Driver	high voltage constant current driver with transformer
Construction Data
IP rating	IP67 Waterproof
Housing	Solid Passivated (Anodizing) Aluminum CNC machined
Protection finishing	20~25μm thickness anodized film for housing .Dark grey
Trim	Passivated (Anodizing) Aluminum
Glass	Step tempered Glass.T=4mm.
Loading capacity	220 kgs
Cable Gland	PG7 IP67
Gasket	O-ring PMQ silicone seal
Accessories
Spike	With Aluminium spike as spike spot lights (Standard)
Round base	With SS304 round base for wall mounting (optional)
