DOM Series: Disk On Module,is a high-performance, embedded flash drive designed to replace the traditional IDE mechanical hard drives. It is mainly used in some old motherboards, to enhance the performance of the equipment. It is characterized by the relatively small size, safe and reliable. DOM has a small control chip firmware, transfer data by standard interface of IDE, SATA, USB, no need additional host software.
DOM work at the voltage of 5V, it provided the scalability new features, such as more cost-effective designs, better performance, improved reliability, making it ideal for the field of embedded memory. PATA DOM supports the standard ATA / IDE, up to PIO Mode-4, Multi-word DMA Mode 2 and Ultra DMA Mode-6, compatible with all the major operating systems on the market, such as the Window series, Mac OS, and Unix versions.

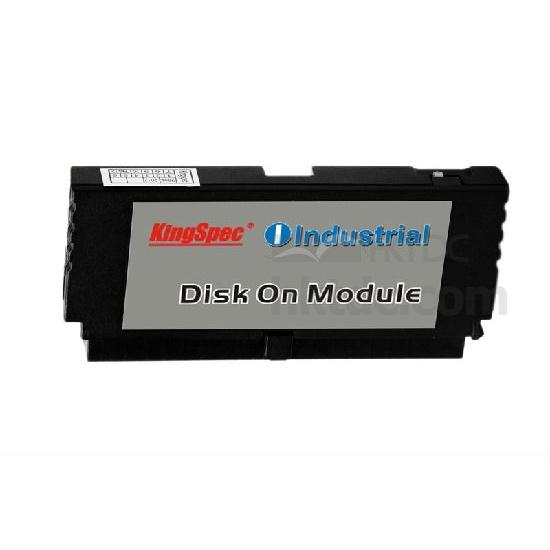

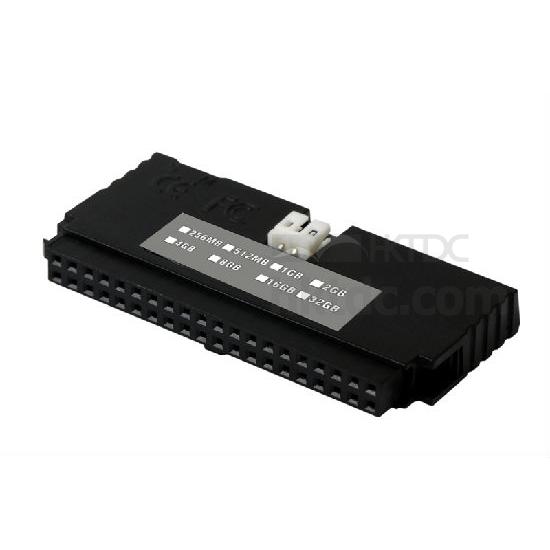

Model:IDE 44PIN DOM Vertical+Socket MLC
General:Form factor59.4*6.8*23.5mm
Interface:44PIN IDE
Performance:Capacity 1GB | 2GB | 4GB | 8GB | 16GB | 32GB
Sustained Read:43MB/S
Sustained Write:21MB/S
Random IOPS
4KB Random Read IOPS:4311
4KB Random Write IOPS:647
Average Access time:0.3ms
Storage Media NAND Flash :MLC
Power Consumption input Voltage:3.3V/5V
Idle:0.0005 W
Active:0.45W
Reliability& Endurance Write endurance:8years 100GBytes write and erase per day at 32GB
Read endurance:unlimited
Wear-Leveling Algorithm:Dynamic and static wear-leveling
Data Retention 10years at 25
MTBF:1,000,000hours
ECC Supports BCH ECC 8bits or 15bits in 512 bytes
Bad Block Management: Auto Bad Block Management in system
Environment Operating Temperature: 0~70
Non-operating Temperature: -45~85
Shock: 2,000G(0.3ms half sine wave)
Vibration :20G(40-2000HZ)
Ambient Humidity 5-95%
Warranty: 2years
Available unit available: NO EOL
Testing Platform
Testing Software:HD Bench3.4.0.3, IO Meter 2006.07.27
