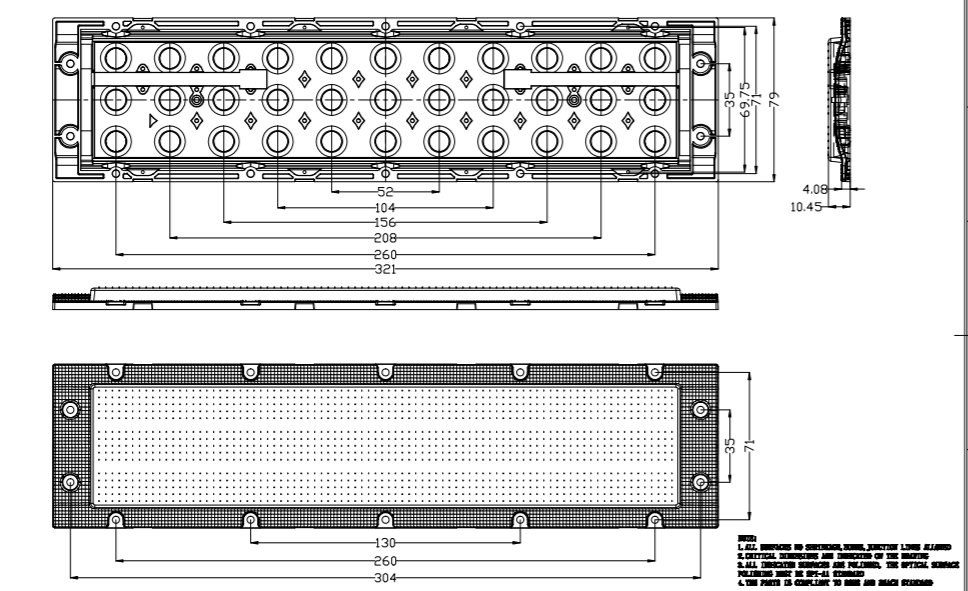

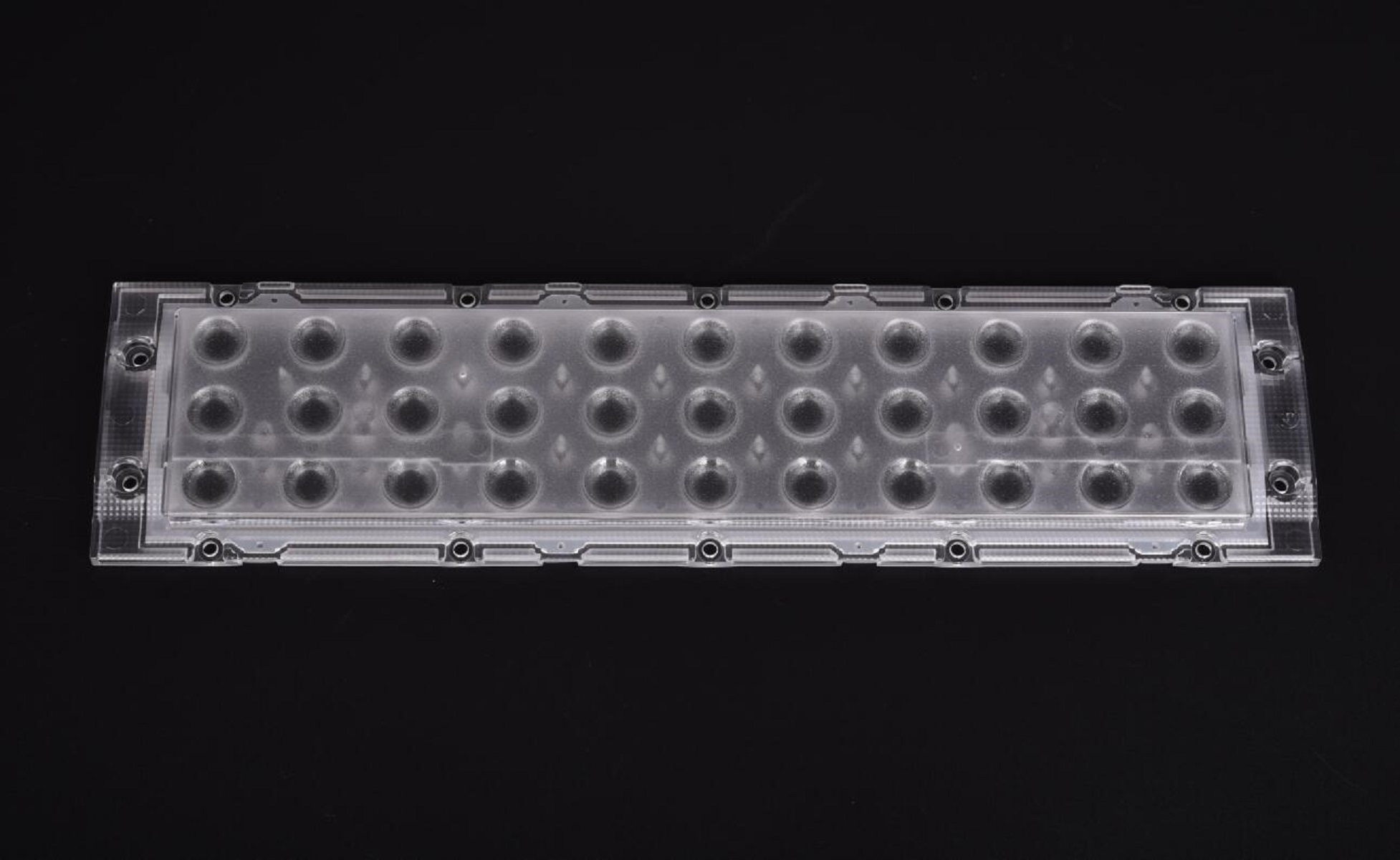

PC Material 3x11 Lens Array 60 degrees with IP66 Protection Can Pass IK08 Test

• Model: ALHB321D66LED60GIP
• Diameter: 321.0mm
• Height: 79.0mm
• Angle: 60°
• Material: PC-1250Z
• Transmittance: >90%
• LED Applications: 3030''5630''5050
• Lighting applications: High Bay lighting, Linear Lighting
• ASAHI OPTICS released a new lens 3X11 array with IP66 protection  the lens is made of PC material, which can pass IK08 test

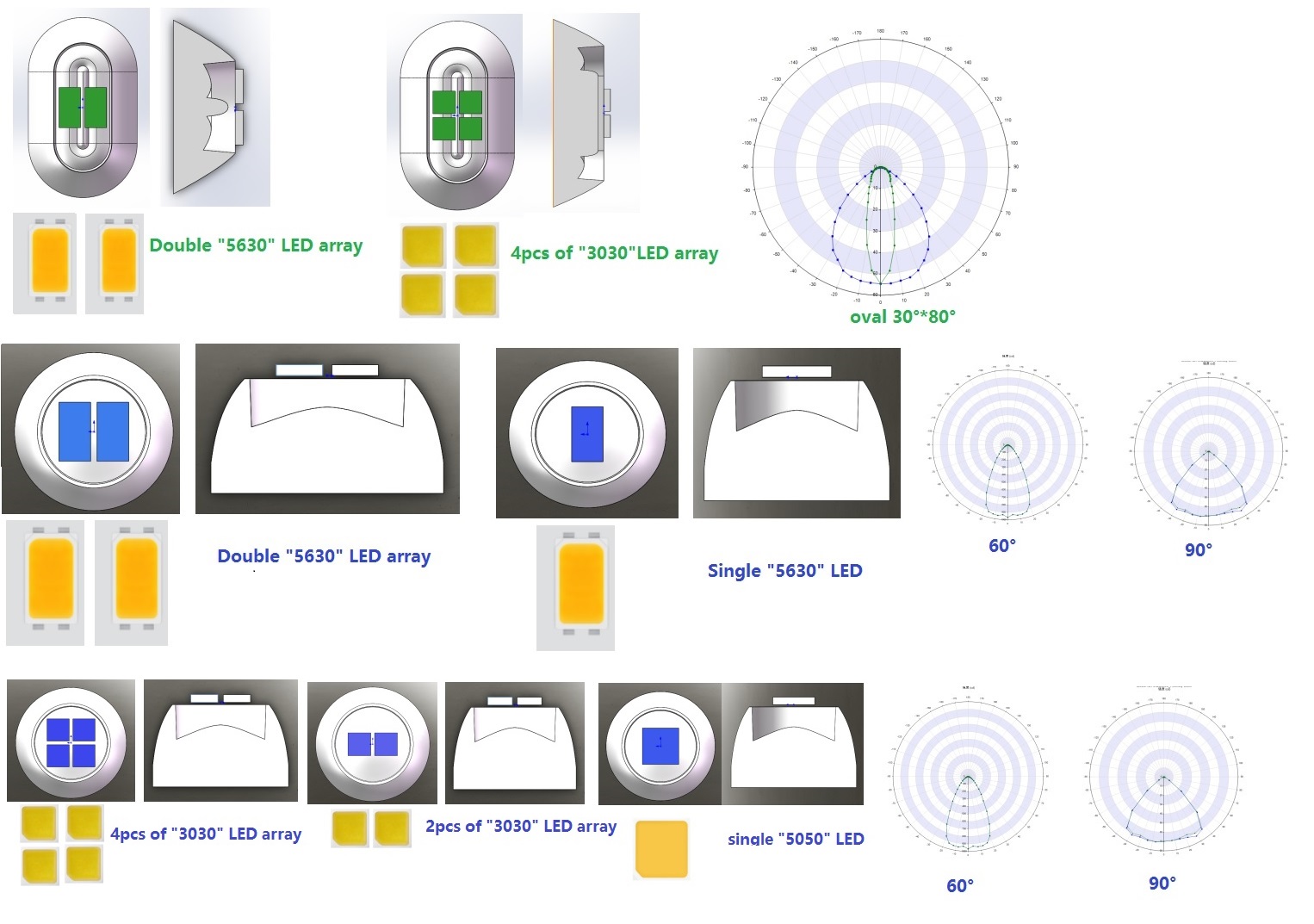

• The 3X11 lens array is designed for Mid Power LEDs which is compatible with “3030” and “5630”LEDs.
• Especially for each optical surface, it is not only for single LED but also for double LEDs to get much high lumens.
• For more details, please check our website.
