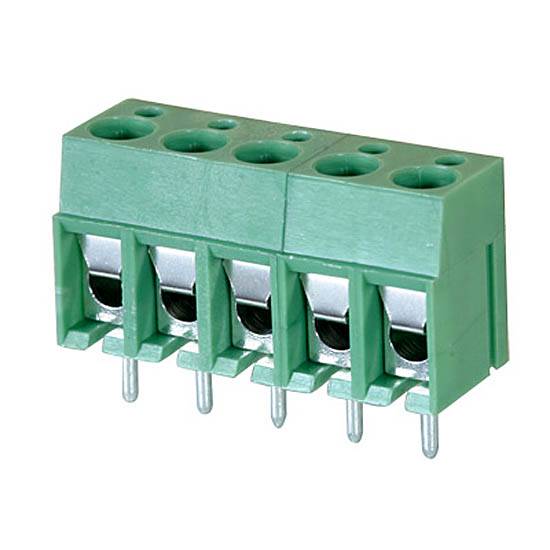

PCB Screw Terminal Block
Model No.:
KA03-500
Colour:
Green
Description
Contact Supplier
Description
The PCB screw terminal block features an insulated construction for guaranteed safety. It comes with a rigid housing for enhanced durability. This PCB screw terminal block is a great choice for various electronic applications.
- Pitch: 3.5mm.
- Voltage: 300V.
- Current: 6A.
- Withstand voltage: 2,000V, AC.
- Insulation resistance: 500mohm at 500V, DC.
- Operating temperature range: -40 to 120oC.
- Screw torque value: 0.5Nm.
- Suitable electric wire: 14-22AWG.
