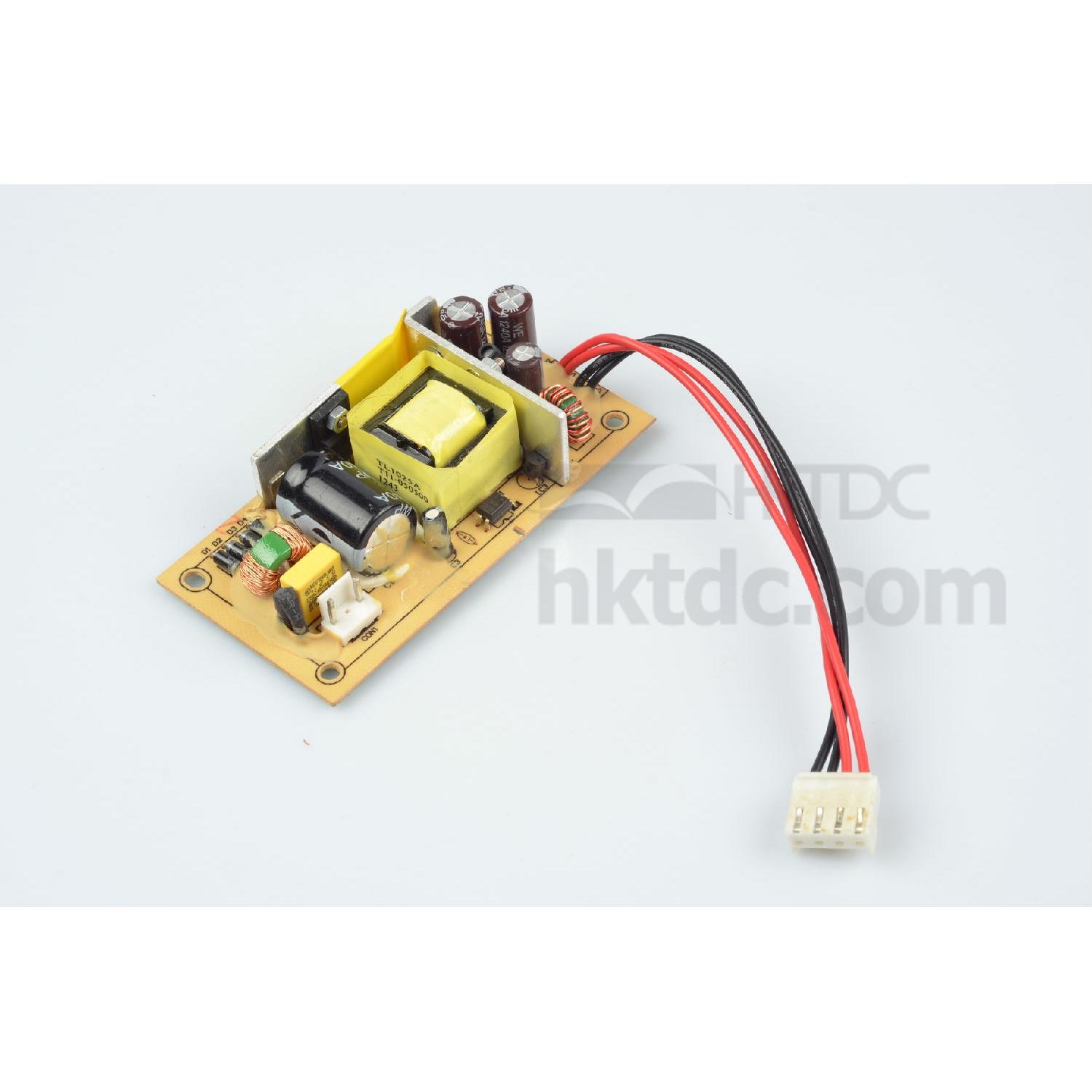

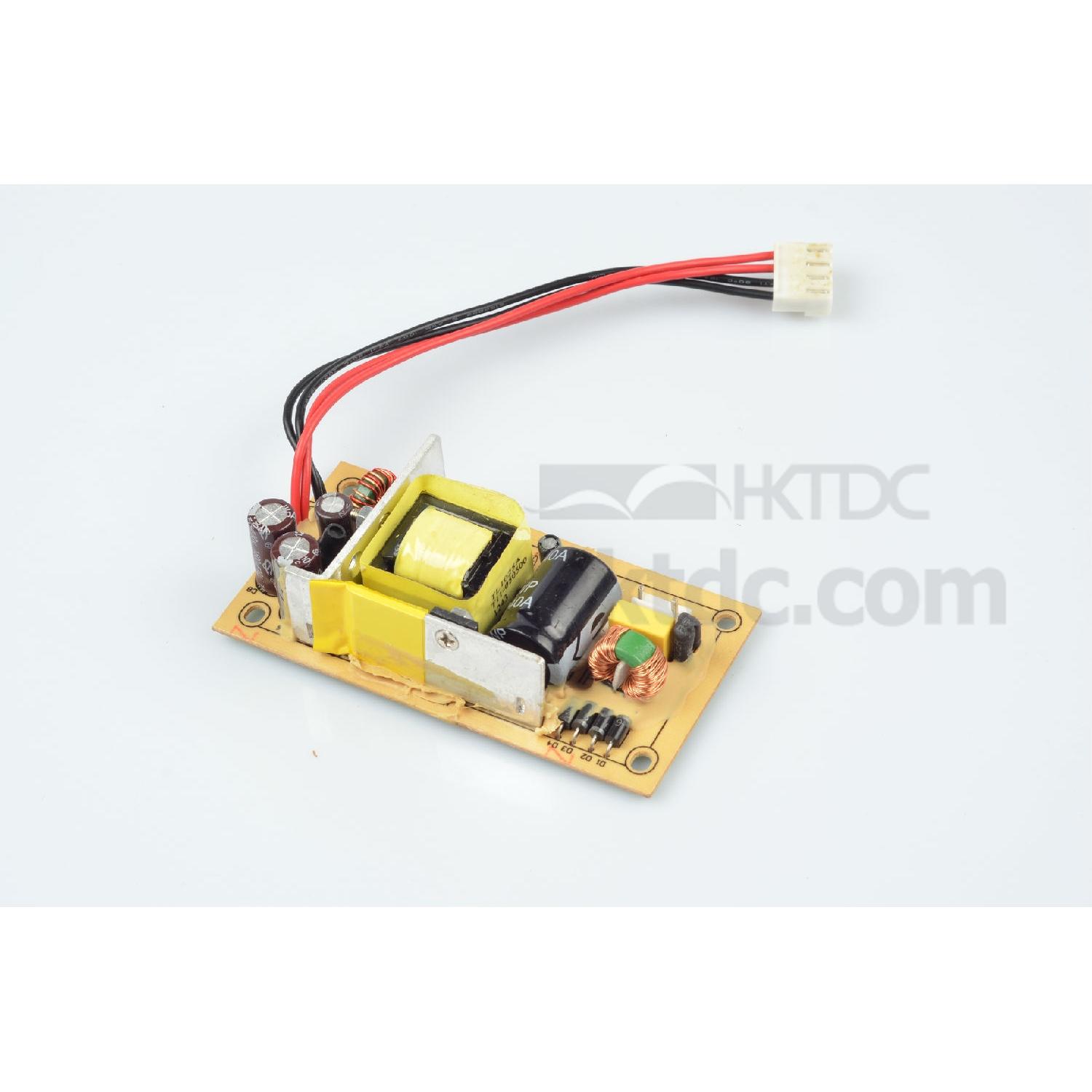

PCB Switching Power Supply
Production Lead Time:
20 day(s)
Model No.:
TL10-050500M
Brand:
TL
Size:
103mmX54mm
Port:
SHENZHEN
Type of Payment:
TT L/C
Minimum Order Quantity:
3000pcs
Package:
Yes
Customised:
Yes
Output Voltage:
5V
Input Voltage:
100-240V AC
Output Frequency:
50~60Hz
Output Power:
25W
Output Current:
5A
Place of Origin:
Mainland China
Description
Contact Supplier
Description
◆ Output
Dc voltage: 5V
Rated current: 5.00A
Ripple and noise: V(p-p)<1％
Voltage regulation: ±5.0%
Start/Rise/Hold time: Start time≤3s Delay time》10ms at 240V AC input full load
◆ Input
Voltage range: 100-240V AC
Frequency range: 50-60Hz
Efficiency : Comply with CEC,DOE(USA),GEMS(Au)and ERP(EU)
◆ Protection
Ocerlcad/Short circuit:120-250％ of rated output power can be adjusted
Protection mode:hiccups mode,Auto recover
◆ Environment
Operating temperature : 0-40 ℃
Operating humidity : 20-90％RH,Full load,No condensation Normal operating
Storage temperature.humidity : —20+60％℃,10~93％RH
◆Safety and EMI
SAFETYStandards : UL60950.IEC(EN.AS/NZS.J.K)60950/60065/61558.3C GB4943/8898
Electromagnetic compatible: Comply with EN55022B.FCCpart15B.
EMC immunity: Comply with EN55024
Dc voltage: 5V
Rated current: 5.00A
Ripple and noise: V(p-p)<1％
Voltage regulation: ±5.0%
Start/Rise/Hold time: Start time≤3s Delay time》10ms at 240V AC input full load
◆ Input
Voltage range: 100-240V AC
Frequency range: 50-60Hz
Efficiency : Comply with CEC,DOE(USA),GEMS(Au)and ERP(EU)
◆ Protection
Ocerlcad/Short circuit:120-250％ of rated output power can be adjusted
Protection mode:hiccups mode,Auto recover
◆ Environment
Operating temperature : 0-40 ℃
Operating humidity : 20-90％RH,Full load,No condensation Normal operating
Storage temperature.humidity : —20+60％℃,10~93％RH
◆Safety and EMI
SAFETYStandards : UL60950.IEC(EN.AS/NZS.J.K)60950/60065/61558.3C GB4943/8898
Electromagnetic compatible: Comply with EN55022B.FCCpart15B.
EMC immunity: Comply with EN55024
