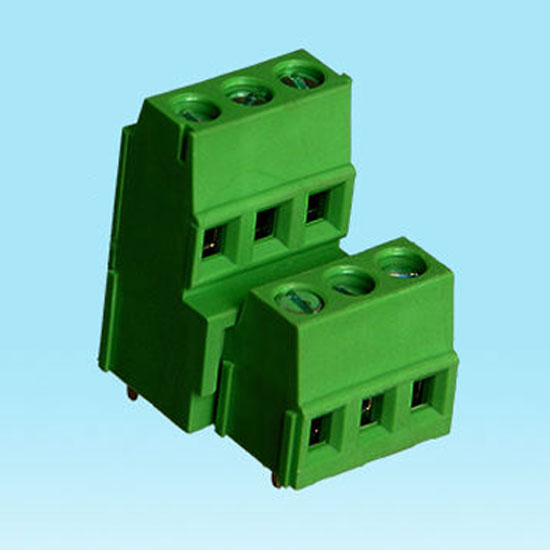

PCB Terminal Block
Model No.:
F35-7-5.0/5.08-XXP
Description
Contact Supplier
Description
This PCB terminal block is certified to meet different safety standards. It is well engineered to deliver reliable and safe operation. This PCB terminal block is widely used in assorted electrical appliances.
- Certificate: UL.
- Pitch: 5.0, 5.08mm.
- Wire guard: brass, Ni-plated materials: screws: 2.5 steel zinc-plated wire guard: brass, Ni-plated pin header: brass, tin-plated.
- Housing: PA66, UL94V-0.
- Rated voltage: 300V.
- Rated current: 16A.
- Contact resistance: 20MΩ.
- Insulation resistance: 5,000MΩ/1,000V.
- Withstanding voltage: 2,500V AC/1 minute.
- Wire range: 12-30AWG.
- Temperature range: -40-105℃.
- Maximum soldering: 250℃ for 5 seconds.
- Torque: 4.0kgf.cm.
